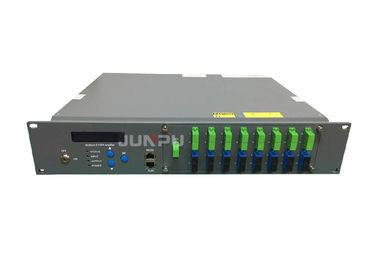

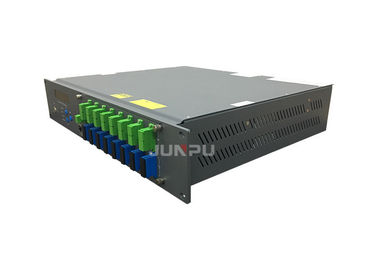

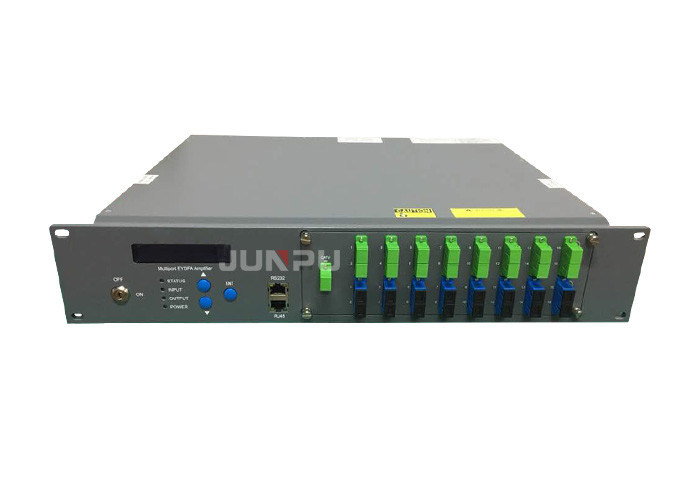

High Power FTTH Wdm Edfa 1550 Catv Amplifier 16 Port 17db For Triple Play Network

Product Details

Place of Origin: China

Brand Name: JUNPU

Certification: ROHS, CE, CCC

Model Number: JP1617EAP

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: Negotiation

Packaging Details: Standard Strong Carton Box

Delivery Time: 1 ~ 10 working days based on quantity

Payment Terms: T/T, Western Union, Credit Card Via Alibaba

Supply Ability: 1000 Pieces Per Month

Get Best Price
Highlight:

high power optical amplifier

,

optical combiner

,

High Power FTTH Wdm Edfa

Product Name:
Wdm Edfa 1550 Catv 16 Port 17 Db
Number Of Outputs:
16 Ports
CATV Input:
1 Or 2 Port
CATV Operation Wavelength:
1540 ~ 1563nm
Application:
FTTH, Triple Play Network, GPON, EPON
Per Port Output Optical Power:
15,16,17,18,19,20,21,22,23dbm
CATV Input Power:
-10 ~ +10dbm
OEM:
Yes
Size:
2U Rack
Product Name:
Wdm Edfa 1550 Catv 16 Port 17 Db
Number Of Outputs:
16 Ports
CATV Input:
1 Or 2 Port
CATV Operation Wavelength:
1540 ~ 1563nm
Application:
FTTH, Triple Play Network, GPON, EPON
Per Port Output Optical Power:
15,16,17,18,19,20,21,22,23dbm
CATV Input Power:
-10 ~ +10dbm
OEM:
Yes
Size:
2U Rack
High Power FTTH Wdm Edfa 1550 Catv Amplifier 16 Port 17db For Triple Play Network

Junpu FTTH Wdm Edfa 1550 Catv 16 Port 17 db Triple Play Network



Product Features:

  • 1540~1565nm operating bandwidth for optical amplifier
  • Each output optical port is with built-in high performance CWDM, single fiber three wavelengths, which can save optical fiber resources largely.
  • Output adjustable by buttons in the front panel or web SNMP, the range is down 4dBm
  • Can compatible with any FTTx PON technology: EPON/GEPON, GPON, BPON, DPON
  • Multi- ports output, can built in 1310/1490/1550WDM
  • Low noise figure ( Typ ≤4.5dB, Max ≤5.0dB )
  • Standard RJ 45 port for remote control, we can provide output contract and web manager for choice, and also plug-in SNMP hardware can be reserved for update.
  • With laser key to turn on/off the laser
  • Led displays the working condition of the machine
  • Dual power hot plug power supply for choice, 90V~250V AC or -48V DC

Description:

  • JP1617EAP (2RU) series is a low noise, high performance, FTTP high power, multi-ports optical amplifier with gain spectrum band within 1540~1563nm. Each output port for optical amplifier has built-in well-performed CWDM. Every external up-link optical port of optical amplifier can connect with OLT PON port very conveniently. Each 1550nm (CATV)'s output optical port multiplex 1310/1490n's data stream, in order to reduce the quantity of the component and improve the index and reliability of the system.
  • JP1617EAP optical amplifier can be compatible with any FTTx PON Technology.
  • It offers a flexible and low-cost solution for three-network integration and Fiber to the Home.



FTTH Diagram:

High Power FTTH Wdm Edfa 1550 Catv Amplifier 16 Port 17db For Triple Play Network 0







Details:

Parameter Specification
Product Name wdm edfa 1550 catv 16 port 17 db
Working Wavelength Mixed output 1490/1310/1550nm
Connector Type

Catv port: SC APC

Pon Port: SC APC or SC UPC

Combine Port: SC APC

Output Optical Power 15,16,17,18,19,20,21,22,23dbm  (customized)



High Power FTTH Wdm Edfa 1550 Catv Amplifier 16 Port 17db For Triple Play Network 1





High Power FTTH Wdm Edfa 1550 Catv Amplifier 16 Port 17db For Triple Play Network 2



High Power FTTH Wdm Edfa 1550 Catv Amplifier 16 Port 17db For Triple Play Network 3





High Power FTTH Wdm Edfa 1550 Catv Amplifier 16 Port 17db For Triple Play Network 4



Technical Specification:



Performance Index Supplement
Min. Typ. Max.

Optical

feature

CATV operation wavelength (nm) 1540   1565 CATV
OLT pass wavelength (nm)   1310/1490
CATV pass wavelength loss (dB)     0.8 1550nm
OLT pass wavelength loss (dB)     0.8 1310/1490nm
CATV input power (Pi) (dBm) -10   +10
Number of output ports (pcs)     16
Each port output power (dBm) 0   13 ~22dbm 17
Difference of each output power (dB) -0.5   +0.5
Output optical power monitoring (dB)   -20
Output power adjustable range (dBm) -3   0
Noise figure (dB)   4.5 5.0
  5.0 6.0
Polarization dependence loss (dB)     0.3
Polarization dependence gain (dB)     0.4
Polarization mode dispersion (ps)     0.3



Workshop

High Power FTTH Wdm Edfa 1550 Catv Amplifier 16 Port 17db For Triple Play Network 5



Other EDFA WDM Series:



High Power FTTH Wdm Edfa 1550 Catv Amplifier 16 Port 17db For Triple Play Network 6



High Power FTTH Wdm Edfa 1550 Catv Amplifier 16 Port 17db For Triple Play Network 7

   High Power FTTH Wdm Edfa 1550 Catv Amplifier 16 Port 17db For Triple Play Network 8



We sincerely invite you to send us inquiry for further details.

Junpu Cares About Every Single Details Of The Product For You !
