Fiber Access Outdoor Fiber Termination Box , FTTH Distribution Box 16 Core

Product Details

Place of Origin: China

Brand Name: JUNPU

Certification: ROHS CE CCC

Model Number: JP-I2-16OA

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: Negotiation

Packaging Details: Strong Cartons Box

Delivery Time: 1 ~ 10 working days

Payment Terms: T/T, Western Union, Credit Card Via Alibaba

Supply Ability: 10000 Pieces Per Month

Get Best Price
Highlight:

fiber optic distribution unit

,

telecommunication distribution box

,

FTTH Distribution Box 16 Core

Product Name:
Fiber Access Terminal Box
Mode:
Wall Mounted Or Pole-Mounting
Free Sample:
Support
Size:
295*220*85mm
Connector:
SC, LC Optical Adapter
Material:
PC, ABS
Port:
2 In, 16 Out
Application:
Indoor Or Outdoor
Color:
Black, White
PLC Splitter:
Mini Steel Tube
Colorful Logo:
Support
OEM:
YES
Product Name:
Fiber Access Terminal Box
Mode:
Wall Mounted Or Pole-Mounting
Free Sample:
Support
Size:
295*220*85mm
Connector:
SC, LC Optical Adapter
Material:
PC, ABS
Port:
2 In, 16 Out
Application:
Indoor Or Outdoor
Color:
Black, White
PLC Splitter:
Mini Steel Tube
Colorful Logo:
Support
OEM:
YES
Fiber Access Outdoor Fiber Termination Box , FTTH Distribution Box 16 Core

Junpu FTTH 16 Core Fiber Access Terminal Outdoor Fiber Optic Termination Box

Description:

  • JP-I2-16OA fiber access termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution,storage and cable connection in one solid protection box.


Features:


  • Integrated with splice cassette and cable management rods.
  • Manage fibers in a reasonable fiber radius condition.
  • Easy to maintain and extend the capacity.
  • Fiber bend radius control more than 40mm.
  • Suitable for the fusion splice or mechanical splice.
  • 2 pcs of 1*8 Splitter can be installed as an option.
  • Efficient cable management.
  • 16 ports cable entrance for drop cable.


Application:

  • FTTH access network
  • Telecommunication Networks
  • CATV Networks
  • Data communications Networks


Details:

Product Name 16 Core Fiber Access Terminal Outdoor Fiber Optic Termination Box
Parameters Specification
Material PC+ABS
Size 295*220*85mm
Capacity SC 16 ports
Color White, black
Assemble Support

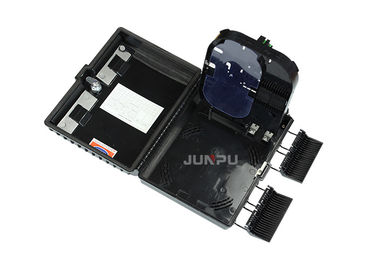

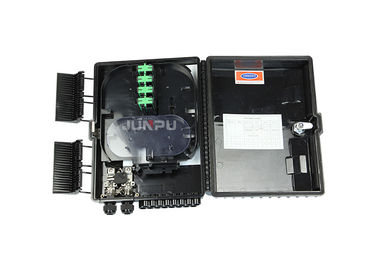

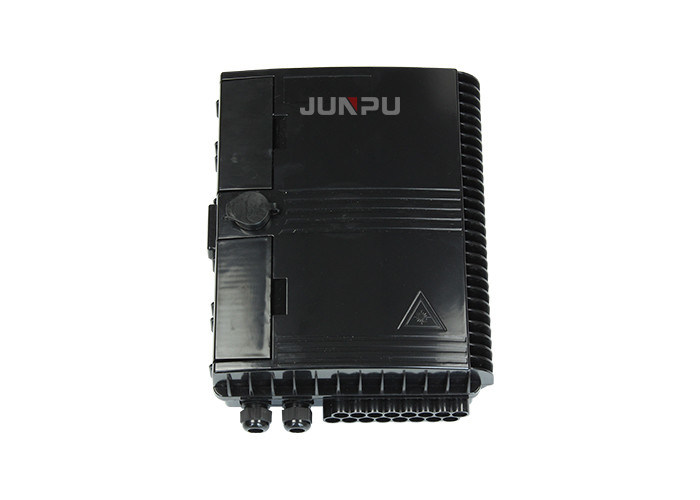

Fiber Access Outdoor Fiber Termination Box , FTTH Distribution Box 16 Core 0

Fiber Access Outdoor Fiber Termination Box , FTTH Distribution Box 16 Core 1Fiber Access Outdoor Fiber Termination Box , FTTH Distribution Box 16 Core 2Fiber Access Outdoor Fiber Termination Box , FTTH Distribution Box 16 Core 3

Fiber Access Outdoor Fiber Termination Box , FTTH Distribution Box 16 Core 4

FAQ:

Q1: Are you a factory?
A: Yes, we are a factory.

Q2: what's your products' quality control?
1.Control the raw material,manpower allocation,working environments,equipment etc.
2.Improve the working standard ,cooperation ,training of workers etc.


Q3: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our products.

Q4: Could you offer the OEM service?
A: Yes, we can provide OEM service, manufacture as per your request.

Q5. May I take a sample order
A: Yes, free sample are available and MOQ is 1 piece.


Q6. What about the lead time?
A:Sample takes 3 days, mass production time takes 7-15 days for bulk order.

Q7. What about the shippment ?
A: International Express - DHL, UPS, FedEx or TNT.
Airline.
Sea/Marine shipping.

Junpu Fiber Optic Distribution Box Series
Fiber Access Outdoor Fiber Termination Box , FTTH Distribution Box 16 Core 5



We sincerely invite you to send us inquiry for further details.
Junpu Cares About Every Single Details Of The Product For You !
