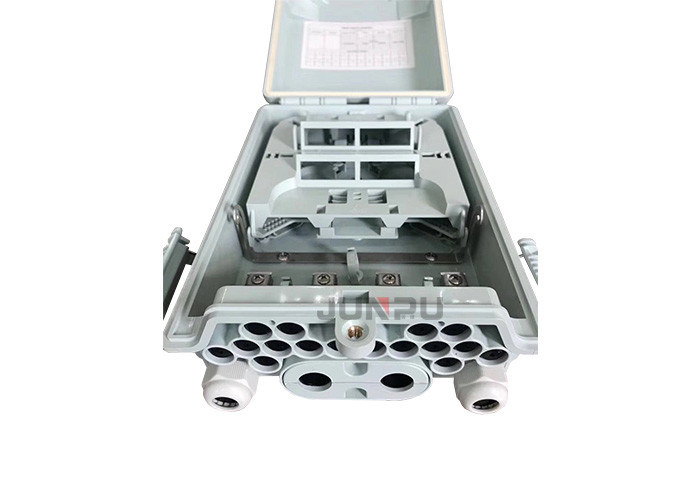

16 Core Fiber Optic Waterproof Terminal External Distribution Box 4 In 16 Out

16 Core Fiber Optic Waterproof Terminal External Distribution Box 4 In 16 Out
16 Core Fiber Optic Waterproof Terminal External Distribution Box 4 In 16 Out

Large Image :  16 Core Fiber Optic Waterproof Terminal External Distribution Box 4 In 16 Out

Product Details:
Place of Origin: China
Brand Name: JUNPU
Certification: ROHS CE CCC
Model Number: JP-I4-16OS
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Strong Cartons Box
Delivery Time: 1 ~ 10 working days
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Supply Ability: 10000 Pieces Per Month
Detailed Product Description
Product Name: Fiber Optic Distribution Box Mode: Wall Mounted Or Pole-Mounting
Free Sample: Support Size: 340*220*95mm
Connector: SC, LC Optical Adapter Material: PC, ABS
Port: 4 In, 16 Out Application: Indoor Or Outdoor
Color: White PLC Splitter: Mini Steel Tube
Colorful Logo: Support OEM: YES
High Light:

fiber optic distribution unit

,

telecommunication distribution box

16 Core Fiber Optic Waterproof Terminal External Distribution Box 4 In 16 Out


Application:


  • Wall mounting and pole mounting installation​
  • FTTH pre-installation and filed installation
  • 2*3mm indoor FTTH drop cable and outdoor figure-8FTTH self-supporting drop cable

16 Core Fiber Optic Waterproof Terminal External Distribution Box 4 In 16 Out 0

Details:

Product Name 4 In 16 Out Optical Wall Mount Fiber Distribution Box, Outdoor Fiber Termination Box
Parameters Specification
Material PC+ABS
Size 340*220*95mm
Capacity SC 16 ports
Color White
Assemble Support


Features:

  • Water-proof design with IP-65 Protection Level.
  • Integrated with flap-up splice cassette and adaptor holder
  • All stainless metal plate and anti-rusting bolts, nuts
  • Fiber bend radius control more than 40mm
  • Suitable for the fusion splicer or mechanical splice
  • 3Pcs of 1*8 Splitter can be installed as an option
  • Mechanical sealing structure and mid-span cable entry.
  • 16 ports cable entrance for drop cable
  • 16 adapter for drop cable patching


Description:

  • JP-I4-16OS fiber access termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution,storage and cable connection in one solid protection box.

16 Core Fiber Optic Waterproof Terminal External Distribution Box 4 In 16 Out 116 Core Fiber Optic Waterproof Terminal External Distribution Box 4 In 16 Out 216 Core Fiber Optic Waterproof Terminal External Distribution Box 4 In 16 Out 3



FAQ:

Q1: Are you a factory?
A: Yes, we are a factory.

Q2: what's your products' quality control?
1.Control the raw material,manpower allocation,working environments,equipment etc.
2.Improve the working standard ,cooperation ,training of workers etc.


Q3: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our products.

Q4: Could you offer the OEM service?
A: Yes, we can provide OEM service, manufacture as per your request.

Q5. May I take a sample order
A: Yes, free sample are available and MOQ is 1 piece.


Q6. What about the lead time?
A:Sample takes 3 days, mass production time takes 7-15 days for bulk order.

Q7. What about the shippment ?
A: International Express - DHL, UPS, FedEx or TNT.
Airline.
Sea/Marine shipping.

Junpu Fiber Optic Distribution Box Series
16 Core Fiber Optic Waterproof Terminal External Distribution Box 4 In 16 Out 4
