Product Details:
Payment & Shipping Terms:
|
| Product Name: | Fiber Optic Distribution Box | Application: | FTTH FTTB FTTX Network |
|---|---|---|---|
| Free Sample: | Support | Connector: | SC, LC Optical Adapter |
| Material: | PC, ABS | Max Capacity: | SC 48 Ports |
| Color: | White | PLC Splitter: | Box Steel Tube |
| Colorful Logo: | Support | OEM: | YES |
| High Light: | fiber optic distribution unit,telecommunication distribution box |
||

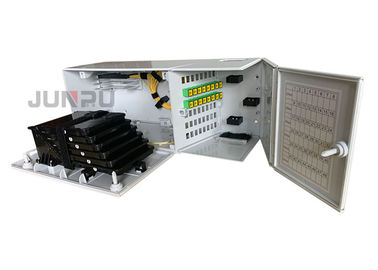

Fiber Optic Distribution Box cabinet 48 core Ftth Floor Termination Box ISP
Application:
1. Telecommunication area.
2. Internet service.
3. Data center, CATV
4. FTTH
Features:
l Multi-operator cabinet with six trays and capacity for 48 fibers.
l Allow the connection between multiple operators and clients, allows the connection through panels or directly by splices.
l The flexible side entrance that allows to stack several boxes and an oval entrance that facilitates the bleeding of the cable. Fire resistant that allows splicing, patching, dividing or storing optical fibers, equipped with an 8mm male triangular closing wrench.
l It has a central area to organize the fibers which is protected with a main door.
l It has compartments separated by a distribution panel of up to 48 optical fibers and allows the installation of the cables by means of fusion or direct connection.
l Possibility of scalability according to the number of operators that address the building
l Standardized dimensions, according to the recommendations of TELEFÓNICA, approved for the main operators.
Specification:
| Dimension | 450x180x150mm |
| Net Weight | 3.2kg |
| Splice tray | 6pcs |
| Max Capacity | 48core |
| Adapter Plate Capacity | 48 SC Simplex |
| Dividers | Max 4pcs 1:16 Splitter |
| Color | Grey RAL 7035 |
| Working Temperature | -25°C - 60°C (5 to 95% relative humidity) |
Accessories:
1. 1x Installation Manuel
2. 3x300mm cable tie
3. 24x100mm plastic cable tie
4. 1x wall fixing kit
5. 48x fiber splice protector
6. 1mx fiber protect tube.
7. 1x Triangular Key
FAQ:
Q1: Are you a factory?
A: Yes, we are a factory.
Q2: what's your products' quality control?
1.Control the raw material,manpower allocation,working environments,equipment etc.
2.Improve the working standard ,cooperation ,training of workers etc.
Q3: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our products.
Q4: Could you offer the OEM service?
A: Yes, we can provide OEM service, manufacture as per your request.
Q5. May I take a sample order
A: Yes, free sample are available and MOQ is 1 piece.
Q6. What about the lead time?
A:Sample takes 3 days, mass production time takes 7-15 days for bulk order.
Q7. What about the shippment ?
A: International Express - DHL, UPS, FedEx or TNT.
Airline.
Sea/Marine shipping.
Junpu Fiber Optic Distribution Box Series
We sincerely invite you to send us inquir for further details.
Junpu Cares About Every Single Details Of The Product For You !
