1550nm Catv 1U 16 Ports EDFA Optical Amplifier 19dBm 220V SC APC Connector

Name: 1550nm Catv 1U 16 Ports EDFA Optical Amplifier 19dBm 220V SC APC Connector
Brand: JUNPU
SKU: JP1619EA
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (164 reviews)

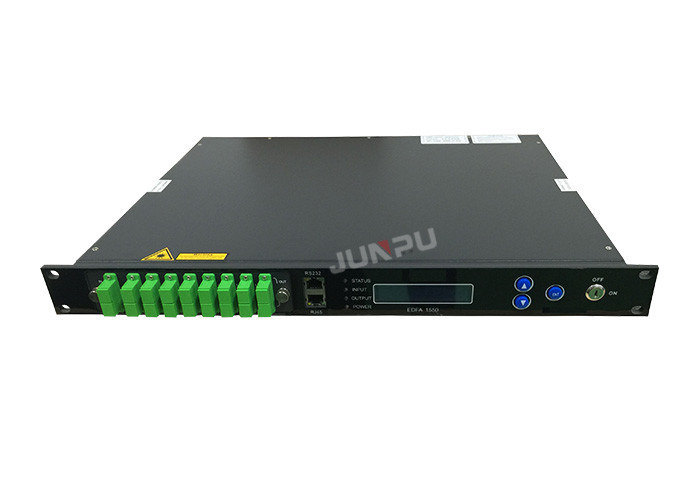

Large Image : 1550nm Catv 1U 16 Ports EDFA Optical Amplifier 19dBm 220V SC APC Connector

Product Details:

Place of Origin:	Chia
Brand Name:	JUNPU
Certification:	ROHS, CE, CCC
Model Number:	JP1619EA

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	Negotiation
Packaging Details:	Standard Strong Carton Box
Delivery Time:	1 ~ 10 Working days based on quantity
Payment Terms:	T/T, Western Union,Credit Card Via Alibaba
Supply Ability:	3000 Pieces Per Month

Contact Now

Detailed Product Description

Product Name:	1550nm Catv 1U 16 Ports Edfa Amplifier	Output Optical Port:	1,2,4,8,16,32,64 Outputs
Per Port Output Optical Power:	13,14,15,16,17,18,19,20,21,22,23,24dbm	Wavelength:	1540 ~ 1560nm
Input Power:	-5dbm ~ +10dbm	Optical Connector:	SC/APC&FC/APC&SC
Supply Voltage:	AC90-256V&DC48V	Size:	1U Rack
OEM:	YES
High Light:	high power edfa , edfa amplifier

Junpu 1550nm Catv 1U 16 Ports Edfa Amplifier 19dBm 220V SC APC Connector

Description:

JP1619EA optical amplifier adopts the world's top class pump laser and active optical fiber. Perfect APC, ACC and ATC control, excellent design in the ventilation and heat-dissipation ensure the long life and high reliable work of pump laser. JP0819EA LCD at the front panel offers the work index of all equipment and warning alarms. The laser will switch off automatically if optical power is missing, which offers security protection for the laser.RS232 and RJ45 offer serial commutation and SNMP network management port. All the optical port of optical amplifier can be installed in the front panel or back panel.

JP1619EA(1RU) series is a high power multi-ports optical amplifier with gain spectrum band within 1540~1563nm. It is mainly designed for the application of CATV. It offers a flexible and low-cost solution for CATV large area coverage of metropolises and medium-sized cities.

Product Features:

Total output power optional 500~10000mW(27~40dBm)
19’’ 1RU rack, optional output port up to 64 optional port.
Built-in low noise pre-amplifier, not necessary EDFA cascade, extremely lower the CNR, MER degradation of the system
Low noise figure ( Typ ≤4.5dB, Max ≤5.0dB )
Perfect RS232, SNMP
Telecom level safety reliability and network management.
Simplified machine-room links, improve the system reliability.
Simple and reliable in construction/maintenance
Optional dual optical input, built-in 2 × 1 optical switch
Dual power supply optional, 1+1 backup
Can reduce the 98% device space usage
Can reduce the 85% device purchase cost
Can reduce 95% power consumption
The best cost performance in industry.

Details:

Parameter	Specification
Product Name	1550nm Catv 1U 16 Ports Edfa Amplifier 19dBm 220V
Working Wavelength	1540 ~ 1563nm or C-band
Connector Type	Catv port: SC APC
Output Optical Power	13,14,15,16,17,18,19,20,21,22,23,24dbm

Input Port

1 or 2 ports

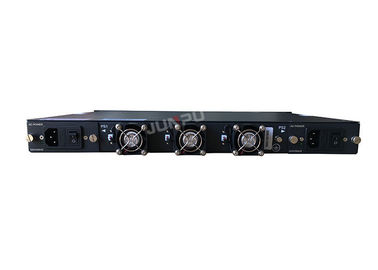

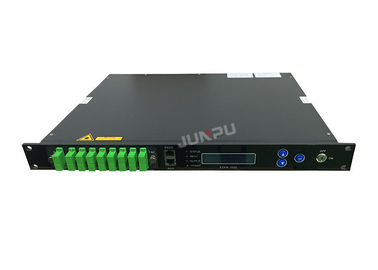

1550nm Catv 1U 16 Ports EDFA Optical Amplifier 19dBm 220V SC APC Connector 0

1550nm Catv 1U 16 Ports EDFA Optical Amplifier 19dBm 220V SC APC Connector 1

Performance			Index			Supplement
			Min.	Typ.	Max.
Optical feature	Operating wavelength range	(nm)	1540		1563	CATV
	Input power	(dBm)	-10		+10
	Total output power¹⁾	(dBm)
	Number of output ports	(pcs)			16	4/8/16/32
	Each output power	(dBm)	0		19	13 ~ 24dbm
	Difference of output power	(dB)	-0.5		+0.5
	Output power adjustable range	(dBm)	-6		0
	Noise figure (Pin=0dBm)	(dB)		4.5	5.0
				5.0	6.0
	Switch time	(ms)			8.0
	Polarization dependence loss	(dB)			0.3
	Polarization dependence gain	(dB)			0.4
	Polarization mode dispersion	(ps)			0.3
	Input/output isolation	(dB)	30
	Pump power leakage	(dBm)			-30
	Echo loss	(dB)	55			APC
General feature	Network management interface		RJ45			SNMP
	Power supply	(V)	90		265	220VAC
			30		72	-48VDC
	Power consume	(W)			50
	Operating temp.	(°C)	-5		65
	Storage temp.	(°C)	-40		80
	Operating relative humidity	(%)	5		95
	Size (W)×(D)×(H)	(")	19×14.3×1.75			1RU(19”)
