Single Mode Plc Fiber Optic Cable Splitter 1x8 For Catv With SC APC Adapter

Product Details

Place of Origin: China

Brand Name: JUNPU

Certification: ROHS, CE, CCC

Model Number: 1x8 Single Mode Plc Fiber Optic Splitter

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: Negotiation

Packaging Details: Standard Strong Carton Box

Delivery Time: 1 ~ 10 Working days based on quantity

Payment Terms: T/T, Western Union, Credit Card Via Alibaba

Get Best Price
Highlight:

fiber optic plc splitter

,

fiber optic cable splitter

Connector Type:
SC,FC,LC,ST
Ferrule End-face:
PC, UPC,APC
Fiber Type:
G652D G657A1 G657A2
Fiber Mode:
Singlmode
Package:
Steel Tube, ABS
Structure:
1X8
Product Name:
1x8 Single Mode Plc Fiber Optic Splitter
Optical Splitter Core:
Corning Core
PLC Splitter In Tension:
>=100N
Connector Type:
SC,FC,LC,ST
Ferrule End-face:
PC, UPC,APC
Fiber Type:
G652D G657A1 G657A2
Fiber Mode:
Singlmode
Package:
Steel Tube, ABS
Structure:
1X8
Product Name:
1x8 Single Mode Plc Fiber Optic Splitter
Optical Splitter Core:
Corning Core
PLC Splitter In Tension:
>=100N
Single Mode Plc Fiber Optic Cable Splitter 1x8 For Catv With SC APC Adapter

Junpu 1x8 Single Mode Plc Fiber Optic Splitter For Catv With SC APC Adapter



Description:

  • Optical fiber splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.
  • It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.



Feature:

  • Adopt high strength stainless steel, pass salt spray test
  • Ferrule core is less than 0.5um
  • Adopt 100% new raw material, ROHS compliance
  • Low Insertion loss
  • Low PDL Compact Design
  • Good channel-to-channel uniformity
  • Wide Operating Wavelength: from 1260nm to 1650nm
  • Wide Operating Temperature: from -40℃ to 85℃



Application:



  • FTTX Systems
  • PON Networks
  • CATV Links
Product Name 1x8 Single Mode Plc Fiber Optic Splitter For Catv With SC APC Adapter
Operating wavelength 1260 ~ 1650nm
Connector Type SC APC, SC, LC, FC, ST



Specification:

Parameters 1×2 1×4 1×8 1×16 1×32 1×64
Operating Wavelength (nm) 1260~1650
Fiber Type G657A or customer specified
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.9 20.5/21.0
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2.0
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Polarization Dependent loss 0.2 0.2 0.2 0.25 0.3 0.35
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss 0.3 0.3 0.3 0.5 0.5 0.5
Temperature Stability(-40~85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40~85
Storage Temperature (℃) -40~85
Package Steel Tube or ABS

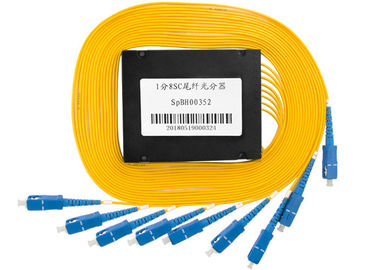

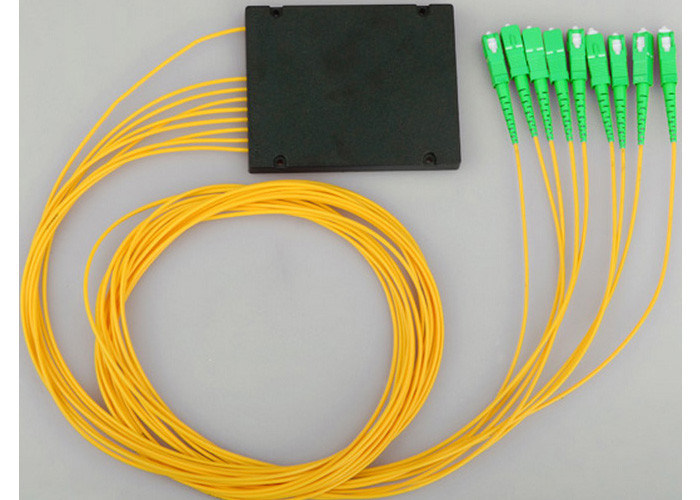

Single Mode Plc Fiber Optic Cable Splitter 1x8 For Catv With SC APC Adapter 0 Single Mode Plc Fiber Optic Cable Splitter 1x8 For Catv With SC APC Adapter 1Single Mode Plc Fiber Optic Cable Splitter 1x8 For Catv With SC APC Adapter 2



We sincerely invite you to send us inquiry for further details.

Junpu Cares About Every Single Details Of The Product For You !
