LC Fiber Optic Connector Quick Assembly High Reliability

LC Fiber Optic Connector Quick Assembly High Reliability
LC Fiber Optic Connector Quick Assembly High Reliability LC Fiber Optic Connector Quick Assembly High Reliability LC Fiber Optic Connector Quick Assembly High Reliability

Large Image :  LC Fiber Optic Connector Quick Assembly High Reliability

Product Details:
Place of Origin: China
Brand Name: JUNPU
Certification: ROHS CE CCC
Model Number: Fiber Optic Connector
Payment & Shipping Terms:
Minimum Order Quantity: 10 Piece
Price: Negotiation
Packaging Details: Standard Strong Carton Box
Delivery Time: 1 ~ 10 Working days based on quantity
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Detailed Product Description
Name: Fiber Optic Connector Brand: JUNPU
Insertion Loss: ≤ 0.3 DB Return Loss: ≥ 45dB
Tensile Strength: F>50N Certificate: ROHS CE CCC
High Light:

ROHS LC Fiber Optic Connector

,

Fiber Optic Lc Connector

,

LC Fiber Optical Fast Connector

Fiber Optic LC Quick Assembly Connector:



Features:

Quick Assembly LC connector can provide quick and easy terminations of fibers in the field.

 It allows the installer  to terminate and make connection in minutes at equipment and fiber patch panels.

 This connector system with features of high installation quality, high success rate and high reliability.

 Applicable to 2*3,2*1.6 cables.

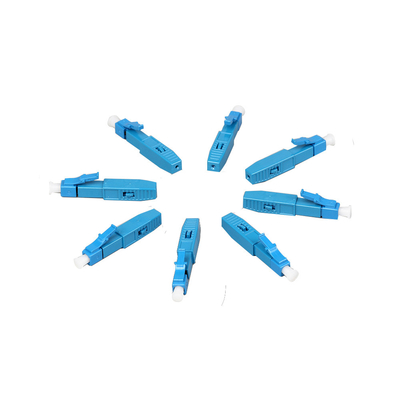

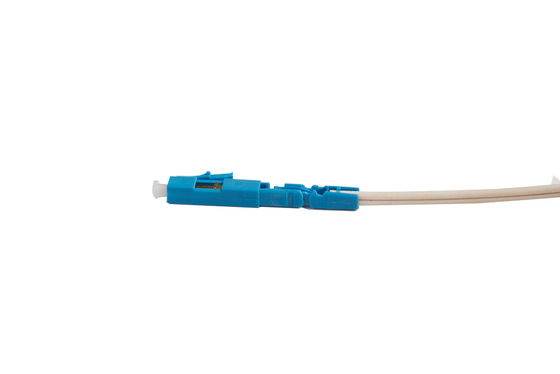

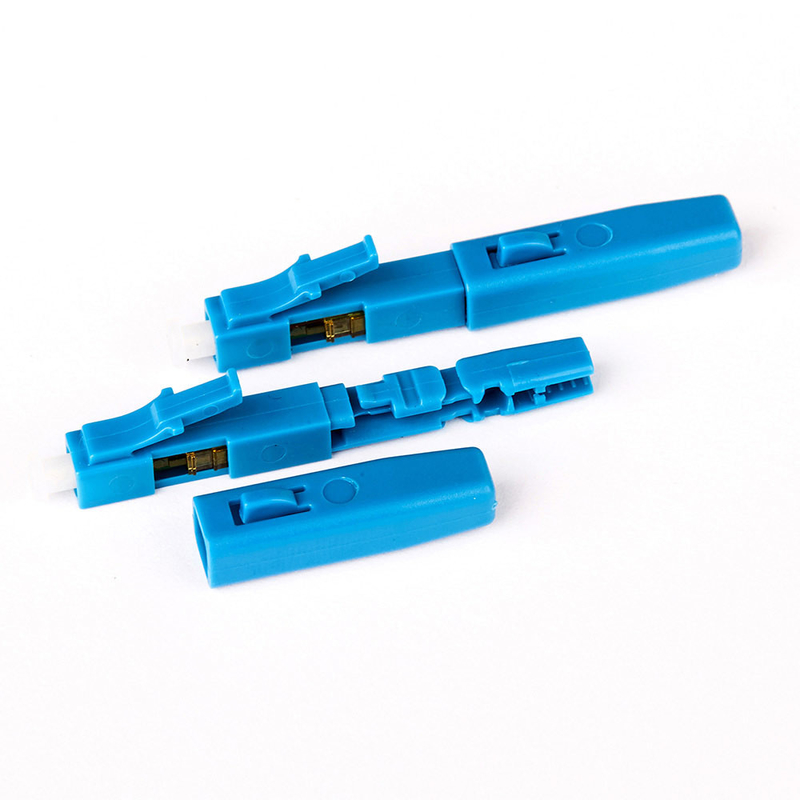

LC Fiber Optic Connector Quick Assembly High Reliability 0LC Fiber Optic Connector Quick Assembly High Reliability 1



  Datasheet:

Parameters Value   Parameters Value
Insertion Loss ≤ 0.3 dB   Repeatability (500 Mating Times) ΔI.L. ≤ 0.3 dB
Return Loss ≥ 45dB   Temperature cycle ΔI.L. ≤ 0.3 dB
Tensile strength F>50N   Vibration test ΔI.L. ≤ 0.3 dB
Operating Temperature -20 ~ +75   Flooding test ΔI.L. ≤ 0.3 dB
Storage Temperature -40 ~ +85   Tensile strength F>50N



















We sincerely invite you to send us inquiry for further details.
