Product Details
Place of Origin: China
Brand Name: JUNPU
Certification: ROHS CE CCC
Model Number: Fiber Optic Connector
Payment & Shipping Terms
Minimum Order Quantity: 10 Piece
Price: Negotiation
Packaging Details: Standard Strong Carton Box
Delivery Time: 1 ~ 10 Working days based on quantity
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Product Name: |
Fiber Optic Connector |
Connector: |
SC, APC |
Type: |
With Embedded |
Fiber Diameter: |
125μm-900μm |
Brand: |
JUNPU |
Certificate: |
ROHS CE CCC |
Product Name: |
Fiber Optic Connector |
Connector: |
SC, APC |
Type: |
With Embedded |
Fiber Diameter: |
125μm-900μm |
Brand: |
JUNPU |
Certificate: |
ROHS CE CCC |

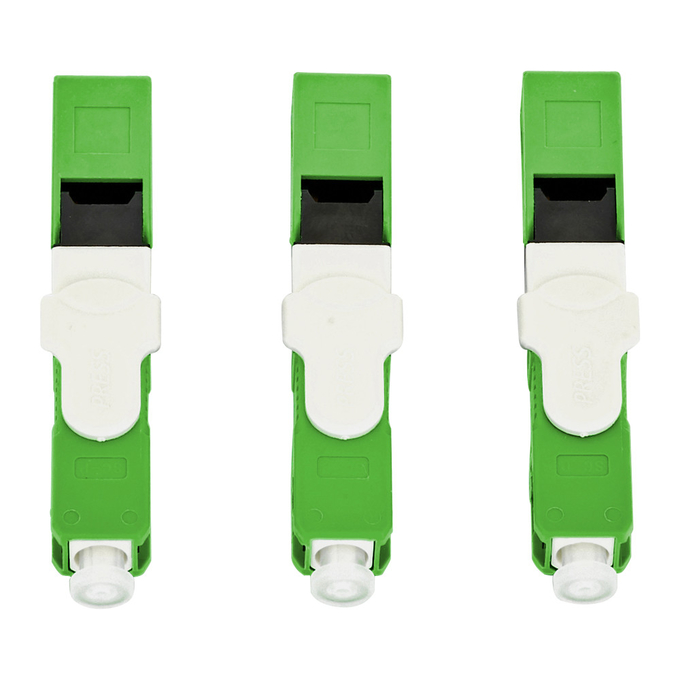

SC APC Fiber Optic Fast Connector, Quick Assembly Connector Apply For FTTH
Features:
Quick Assembly SC connector can provide quick and easy terminations of fibers in the field.
It allows the installer to terminate and make connections in minutes at equipment and fiber patch panels.
This connector system with features of high installation quality, high success rate, and high reliability.
Applicable to 2*3,2*1.6 cables.
Datasheet:
| Product Features: | Type: | Technical parameters: | Environmental parameters: |
| Low insertion loss | With Embedded | Fiber diameter:125μm-900μm | Operating temperature:-40℃~85℃ |
| High return loss | Insertion Loss:IL ≤ 0.3 dBlimit ≤ 0.5 dB | Temperature cycle:IL change ≤0.3 dB | |
| High reliability and stability | Return loss:RL≥40 dB | Vibration: IL change ≤ 0.3 dB | |
| Specifications customized according to customer-specified requirements | Tensile strength:F>20N | Flooding: IL change ≤ 0.3 dB | |
| Repeatability: IL change ≤ 0.3dB |
We sincerely invite you to send us an inquiry for further details.
Junpu Cares About Every Single Details Of The Product For You!
