Product Details
Place of Origin: China
Brand Name: JUNPU
Certification: ROHS CE CCC
Model Number: Fiber Optic Connector
Payment & Shipping Terms
Minimum Order Quantity: 10 Piece
Price: Negotiation
Packaging Details: Standard Strong Carton Box
Delivery Time: 1 ~ 10 Working days based on quantity
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Insertion Loss: |
≤ 0.3 DB |
Return Loss: |
≥ 45dB |
Tensile Strength: |
F>50N |
Operating Temperature: |
-20 ~ +75℃ |
Modle: |
Fiber Optic Connector |
Certificate: |
ROHS CE CCC |
Insertion Loss: |
≤ 0.3 DB |
Return Loss: |
≥ 45dB |
Tensile Strength: |
F>50N |
Operating Temperature: |
-20 ~ +75℃ |
Modle: |
Fiber Optic Connector |
Certificate: |
ROHS CE CCC |

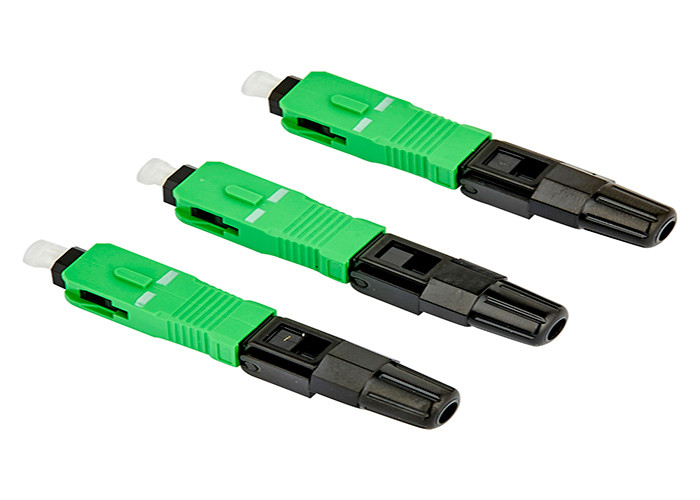

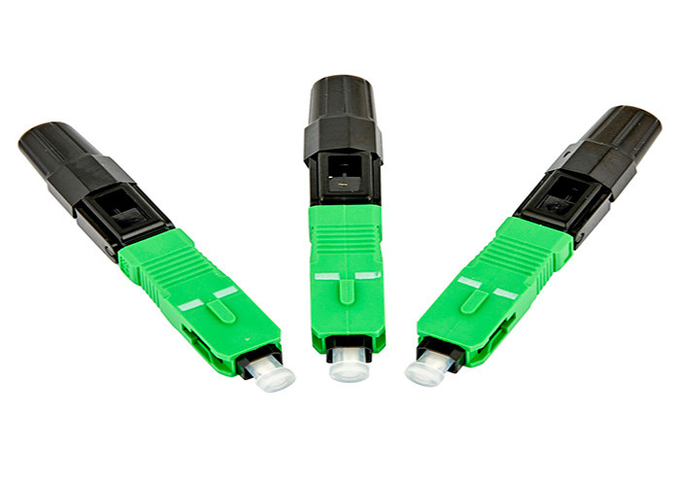

SC APC Fiber Optic Fast Connector, Quick Assembly Fast Connect:
Features:
Quick Assembly SC connector can provide quick and easy terminations of fibers in the field.
It allows the installer to terminate and make connections in minutes at equipment and fiber patch panels.
This connector system with features of high installation quality, high success rate, and high reliability.
Applicable to 2*3,2*1.6 cables.
Datasheet:
| Parameters | Value | Parameters | Value | |
| Insertion Loss | ≤ 0.3 dB | Repeatability (500 Mating Times) | ΔI.L. ≤ 0.3 dB | |
| Return Loss | ≥ 45dB | Temperature cycle | ΔI.L. ≤ 0.3 dB | |
| Tensile strength | F>50N | Vibration test | ΔI.L. ≤ 0.3 dB | |
| Operating Temperature | -20 ~ +75℃ | Flooding test | ΔI.L. ≤ 0.3 dB | |
| Storage Temperature | -40 ~ +85℃ | Tensile strength | F>50N |
We sincerely invite you to send us an inquiry for further details.
