Product Details
Place of Origin: China
Brand Name: JUNPU
Certification: ROHS, CE, CCC
Model Number: Fiber Optic Splice Closure
Payment & Shipping Terms
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Standard Strong Carton Box
Delivery Time: 1 ~ 10 Working days based on the quantity
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Supply Ability: 10000 Pieces Per Month
Product Name: |
16 Core Fiber Optic Closure Splice Box |
Free Sample: |
Support |
MOQ: |
1 Piece |
Material: |
Modified Polymer Plastic |
Port: |
2 In, 16 Out |
Size: |
285*175*110mm |
Color: |
Black |
Colorful Logo: |
YES |
OEM: |
YES |
Max Capacity: |
Splice 16 Fibers |
Product Name: |
16 Core Fiber Optic Closure Splice Box |
Free Sample: |
Support |
MOQ: |
1 Piece |
Material: |
Modified Polymer Plastic |
Port: |
2 In, 16 Out |
Size: |
285*175*110mm |
Color: |
Black |
Colorful Logo: |
YES |
OEM: |
YES |
Max Capacity: |
Splice 16 Fibers |

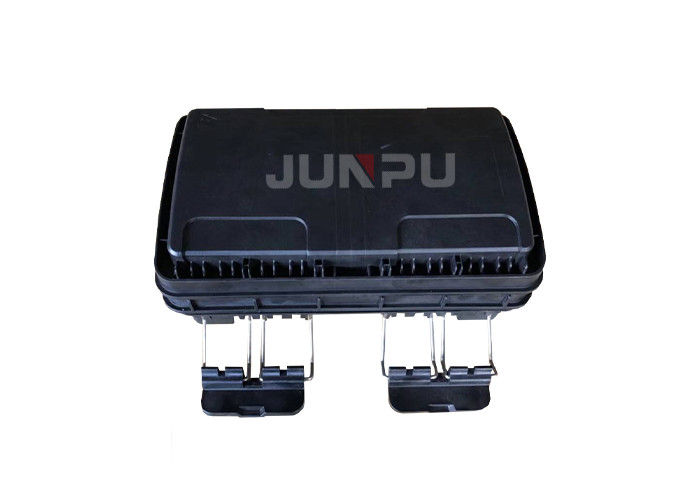

FTTH FTTX IP65 Aerial Fiber Optic Splice Closure Joint Black Box PP+GF
Decsripttion
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
The 16 Port Fiber Optic Splice Closure with Fast Connector Exit has been designed for easy and security-focused installation. Formulated with a science-backed plastic engineering, it provides superior mechanical strength to age deterioration from cold weather, heat exposure, oxygenation or UV light radiation. The closure also features flame retardant capability alongside watertightness and anti vibration properties that guarantee the protection of any cable joint against tensioning, impacts, bending contortions or axial compression forces – all parts having passed viscosity and white ant resistance tests!
Features:
Dis-mountable adaptor panel
Support midspan termination
Easy operation and installation
Rotatable and dis-mountable splice tray for easy slicing
Specification:
| Material | PP+GF |
| Protection Level | IP65 |
| Suitable Adapters | SC, LC |
| Color | Black |
| Monting type | Aerial |
| Cable inlet | 2 Ports |
| Fiber outlet | 16 Ports |
| Max Fiber capacity | 16 Cores |
| Applications | FTTH,FTTB |
| Max Capacity |
16pcs sc adapter: 2pcs 1x8 or 1pcs 1x16 PLC splitter 2pcs 1x8 or 1pcs 1x16 cassette PLC splitter
|
| MOQ | 1pcs |
Installation:
1.Wall-mounted
According to the size of hanging wall with percussion drill play two holes on the wall, knock into the metal tube, will be installed back the case according to the punching position on the wall, and completely fixed screw.
2.Pole-mounted
Fix 1 set of the easy pole ring to the telecom pole .
3.Aerial-mounted
One is fixed on the pole, the cable connector box parallel to the pole; The other is fixed on the cable, the cable connector box parallel to the cable.
Detailed Images:
Junpu Fiber Optic Distribution Box Series
About the Company
FAQ:
Q1: Are you a factory?
A: Yes, we are a factory.
Q2: what's your products' quality control?
1.Control the raw material,manpower allocation,working environments,equipment etc.
2.Improve the working standard ,cooperation ,training of workers etc.
Q3: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our products.
Q4: Could you offer the OEM service?
A: Yes, we can provide OEM service, manufacture as per your request.
Q5. May I take a sample order
A: Yes, free sample are available and MOQ is 1 piece.
Q6. What about the lead time?
A:Sample takes 3 days, mass production time takes 7-15 days for bulk order.
Q7. What about the shippment ?
A: International Express - DHL, UPS, FedEx or TNT.
Airline.
Sea/Marine shipping.
We sincerely invite you to send us inquiry for further details.
Junpu Cares About Every Single Details Of The Product For You !
