2 In 16 Out FTTH Fiber Optic Splice Enclosure / Optical Fiber Joint Closure 24 Core

Good quality Fiber Optic Splice Closure for sales
Good quality Fiber Optic Splice Closure for sales
Good products and the cost is reasonable. Junpu helps me a lot !

—— Carlos

Yes, the EDFA WDM works well.

—— Jose

Perfect service, Save money. Thanks!

—— Franco

I'm Online Chat Now

2 In 16 Out FTTH Fiber Optic Splice Enclosure / Optical Fiber Joint Closure 24 Core

China 2 In 16 Out FTTH Fiber Optic Splice Enclosure / Optical Fiber Joint Closure 24 Core supplier
2 In 16 Out FTTH Fiber Optic Splice Enclosure / Optical Fiber Joint Closure 24 Core supplier 2 In 16 Out FTTH Fiber Optic Splice Enclosure / Optical Fiber Joint Closure 24 Core supplier 2 In 16 Out FTTH Fiber Optic Splice Enclosure / Optical Fiber Joint Closure 24 Core supplier

Large Image :  2 In 16 Out FTTH Fiber Optic Splice Enclosure / Optical Fiber Joint Closure 24 Core

Product Details:

Place of Origin: China
Brand Name: JUNPU
Certification: ROHS, CE, CCC
Model Number: JP-I2-16OPP

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Standard Strong Carton Box
Delivery Time: 1 ~ 10 Working days based on the quantity
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Supply Ability: 10000 Pieces Per Month
Contact Now
Detailed Product Description
Product Name: Optical Fiber Cable Joint Closure Free Sample: Support
MOQ: 1 Piece Material: Modified Polymer Plastic
Port: 2 In, 24 Out Size: 285*175*110mm
Color: Black Colorful Logo: YES
OEM: YES Max Capacity: Splice 24 Fibers

Junpu 24 Core Optical Fiber FTTH Cable Joint Closure 2 In 16 Out


Decsripttion

  • This splice closure integrates distribution and splitting in one, can realize the direct fusion and branching of the optical cable, and is suitable for the wiring connection in the optical communication equipment. Through the adapter and jumper to bring in the signal to realize optical distribution function, it is also suitable for fiber optic cables and pigtail protective connection; the unique three-tier design of the box body can be used as a fiber splitter or splice box; the flip board can be flipped≥180°,it is more convenient to install the box or maintenance. If remove the board, it can bed as a splice closure to meet different choices.


Features:

  • Optical fiber radius of curvature: ≥40mm
  • Splice tray additional loss: ≤0.1dB
  • Temperature range: -40°C ~ +60°C
  • Anti side pressure: ≥2000N/10cm
  • Impact resistance: ≥20N.m
  • Protection class: IP65​


Application:

  • Watertight - Underground - Aerial
Product Name24 Core Optical Fiber FTTH Cable Joint Closure 2 In 16 Out

Paremeter

Specification
Max Adapter Number

18pcs - 2pcs@mini steel tube splitter;
9pcs - 1pcs@ inside LGX splitter

Cable DiameterΦ7-φ18
Max Splice Tray1pcs
Max Fusion Splice24 Core
Cable Port2pcs 8-20mm round ports,4pcs 5-16mm round cable, 16pcs 3-7mm drop cable ports
Dimension285*175*110mm

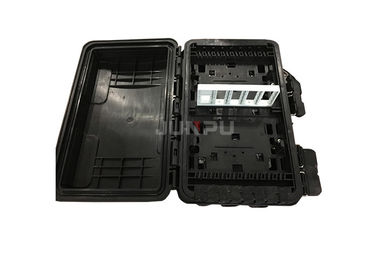

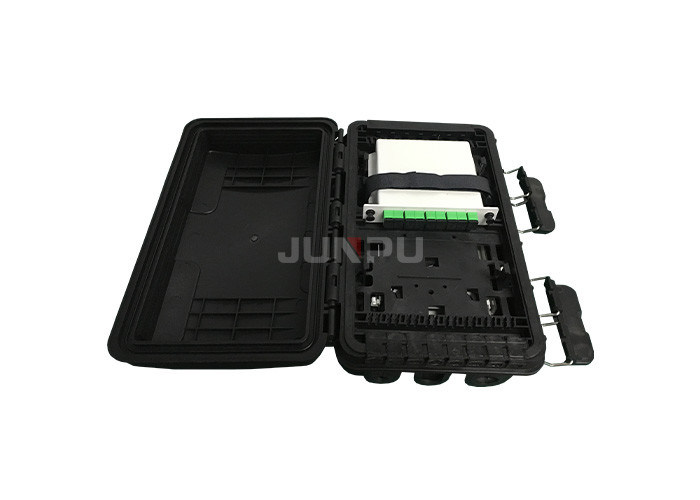

Details:
2 In 16 Out FTTH Fiber Optic Splice Enclosure / Optical Fiber Joint Closure 24 Core2 In 16 Out FTTH Fiber Optic Splice Enclosure / Optical Fiber Joint Closure 24 Core2 In 16 Out FTTH Fiber Optic Splice Enclosure / Optical Fiber Joint Closure 24 Core2 In 16 Out FTTH Fiber Optic Splice Enclosure / Optical Fiber Joint Closure 24 Core

2 In 16 Out FTTH Fiber Optic Splice Enclosure / Optical Fiber Joint Closure 24 Core

Workshop Photo:
2 In 16 Out FTTH Fiber Optic Splice Enclosure / Optical Fiber Joint Closure 24 Core

FAQ:

Q1: Are you a factory?
A: Yes, we are a factory.

Q2: what's your products' quality control?
1.Control the raw material,manpower allocation,working environments,equipment etc.
2.Improve the working standard ,cooperation ,training of workers etc.


Q3: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our products.

Q4: Could you offer the OEM service?
A: Yes, we can provide OEM service, manufacture as per your request.

Q5. May I take a sample order
A: Yes, free sample are available and MOQ is 1 piece.


Q6. What about the lead time?
A:Sample takes 3 days, mass production time takes 7-15 days for bulk order.

Q7. What about the shippment ?
A: International Express - DHL, UPS, FedEx or TNT.
Airline.
Sea/Marine shipping.

Junpu Fiber Optic Distribution Box Series
2 In 16 Out FTTH Fiber Optic Splice Enclosure / Optical Fiber Joint Closure 24 Core

We sincerely invite you to send us inquiry for further details.
Junpu Cares About Every Single Details Of The Product For You !
