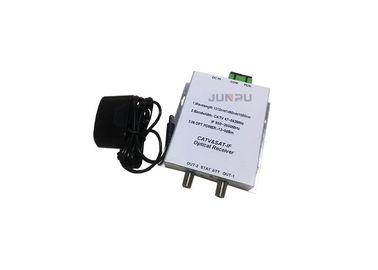

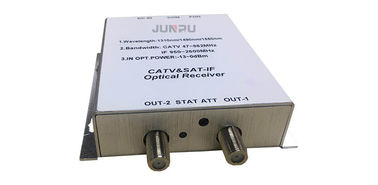

Indoor FTTH Satellite Optical Catv Receiver 2600mhz With Inside Wdm Module

China Indoor FTTH Satellite Optical Catv Receiver 2600mhz With Inside Wdm Module supplier
Indoor FTTH Satellite Optical Catv Receiver 2600mhz With Inside Wdm Module supplier Indoor FTTH Satellite Optical Catv Receiver 2600mhz With Inside Wdm Module supplier

Large Image :  Indoor FTTH Satellite Optical Catv Receiver 2600mhz With Inside Wdm Module

Product Details:

Place of Origin: China
Brand Name: JUNPU
Certification: ROHS, CE, CCC
Model Number: JP26R

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Standard Strong Carton Box
Delivery Time: 1 ~ 10 working days based on quantity
Payment Terms: T/T, Western Union, Credit card Via Alibaba
Supply Ability: 3000 Pieces Per Month
Contact Now
Detailed Product Description
Product Name: Satellite Catv Optical Receiver Input Range: -13~ 0dBm
Work Bandwidth: 45 ~ 862Mhz @ 960 ~ 2600Mhz Output Level: 66~86@0dBm
Output Ports: 1 Or 2 Rf Outputs Connector: SC APC; FC APC; SC
Application: Satellite Network; FTTH Warranty: 2 Years
OEM: YES

Junpu FTTH Satellite Catv Optical Receiver 2600mhz With Inside Wdm Module



Product Feature:

  • With high sensitivity optical detector.
  • It is an embodiment of high-tech in CATV and L-band satellite fiber linking products
  • It can be received in an optical fiber with 47 ~2600MHz satellite and catv digital and analog signals.
  • Simple installation; It is convenient for user to install.
  • Input power from +0~-13dBm.
  • It has a good electromagnetic interference resistance ability.
  • High performance but low price



Details:



Parameter Specification
Product Name FTTH Satellite Catv Optical Receiver 2600mhz With Inside Wdm Module
Input Range Power -13~ 0dBm
Bandwidth

45 ~ 862Mhz @ 960 ~ 2600Mhz

Output Ports 1 or 2 rf outputs



Indoor FTTH Satellite Optical Catv Receiver 2600mhz With Inside Wdm Module



Indoor FTTH Satellite Optical Catv Receiver 2600mhz With Inside Wdm Module





Indoor FTTH Satellite Optical Catv Receiver 2600mhz With Inside Wdm Module



Indoor FTTH Satellite Optical Catv Receiver 2600mhz With Inside Wdm Module



Technical Specification:

Optical
Working Wavelength(nm) 1290~1600
Input range(dBm) -13~0
Optical Return Loss(dB) ≥45
Fiber Connector SC/APC
RF
Frequency(MHz) 47~862
Unflatness(dB) ±1.5
Output Level(dBuV) 66~86@0dBm
Manual Gain Range(dB) 0~20±1
Output Return Loss(dB) ≥16
Output Impedance(Ω) 75
No. of output port 2
RF connector F-5(Imperial)
Link
CTB(dB) ≥62@0dBm
CSO(dB) ≥63@0dBm
CNR(dB) ≥50@0dBm

SAT-IF
Frequency(MHz) 950~2600
Output(dBm) -50~-30
Unflatness(dB) ±1.5dB
IMD -40dBc
Output Impedance(Ω) 75
General
Power supply(V) 12 DC
Power Consumption(W) ≤4
Working Temp(℃) 0 ~ 50
Storage Temp -20~85℃
Humidity 20 ~ 85%

     Indoor FTTH Satellite Optical Catv Receiver 2600mhz With Inside Wdm Module



Workshop:

Indoor FTTH Satellite Optical Catv Receiver 2600mhz With Inside Wdm Module



Other Related Products Series:



Indoor FTTH Satellite Optical Catv Receiver 2600mhz With Inside Wdm Module

Indoor FTTH Satellite Optical Catv Receiver 2600mhz With Inside Wdm Module



Indoor FTTH Satellite Optical Catv Receiver 2600mhz With Inside Wdm Module



We sincerely invite you to send us inquiry for further details.

Junpu Cares About Every Single Details Of The Product For You !
