Bidirectional Catv HFC Cable Outdoor Optical Node 2 Ports With Return Path

China Bidirectional Catv HFC Cable Outdoor Optical Node 2 Ports With Return Path supplier
Bidirectional Catv HFC Cable Outdoor Optical Node 2 Ports With Return Path supplier Bidirectional Catv HFC Cable Outdoor Optical Node 2 Ports With Return Path supplier

Large Image :  Bidirectional Catv HFC Cable Outdoor Optical Node 2 Ports With Return Path

Product Details:

Place of Origin: China
Brand Name: JUNPU
Certification: ROHS, CE, CCC
Model Number: JP2GORP

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Standard Strong Carton Box
Delivery Time: 1 ~ 10 Working days based on quantity
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Supply Ability: 5000 Pieces Per Month
Contact Now
Detailed Product Description
Product Name: Catv HFC Cable Outdoor Optical Node Application: HFC
Wavelength: 1100 - 1600nm Input Power: -8dBm ~ +2dBm
Bandwidth: 40~862MHz&1006MHz With Return Path: Customized
Power Supply: AC35-AC90V&AC140V~265V RF Output Level: 102,104,106dbuv
OEM: YES MOQ: 1

Junpu Bidirectional 2 Ports Catv HFC Cable Outdoor Optical Node With Return Path



Product Features:

  • High responsivity PIN photoelectric swith tube .
  • Precision detection circuit can real-time display the output power through LED lamp or digital tube accurately.
  • Optimize the circuit design,SMT+module amplifier classic circuit photoelectricity signal transmission is more fluency.
  • Power double output, high gain, low distortion compact structure, convenient installation, is the first choice equipment of FTTB CATV network;
  • Excellent optical AGC control technique, when the input optical power range is -8~+2dBm, the output level, CTB and CSO basically unchanged.

Description:

  • JP2GORP series optical receiver mainly used in trunk and lateral optical fiber network, it can supply high quality Videos and data service. It is full-featured product, has excellent index and high reliability, and is a high-performance low-cost optical receiver. SOR series have independent RF return channel and plug play reverse optical transmitter component, with excellent CNR,CSO, CTB index, as well as efficient photoelectric conversion box matching functions to ensure high quality signal transmission, can for network upgrades at any time.

Details:



Parameter Specification
Product Name Bidirectional 2 Ports Catv HFC Cable Outdoor Optical Node With Return Path
Input Range Power -8 ~ +2dBm

Forward Path Bandwidth

45 ~ 862Mhz

Return Path Bandwidth

5-30&42&65

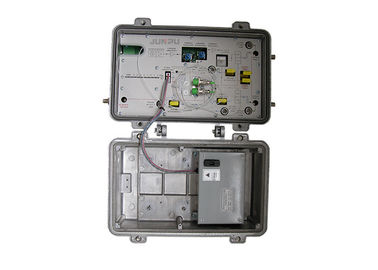

Bidirectional Catv HFC Cable Outdoor Optical Node 2 Ports With Return Path

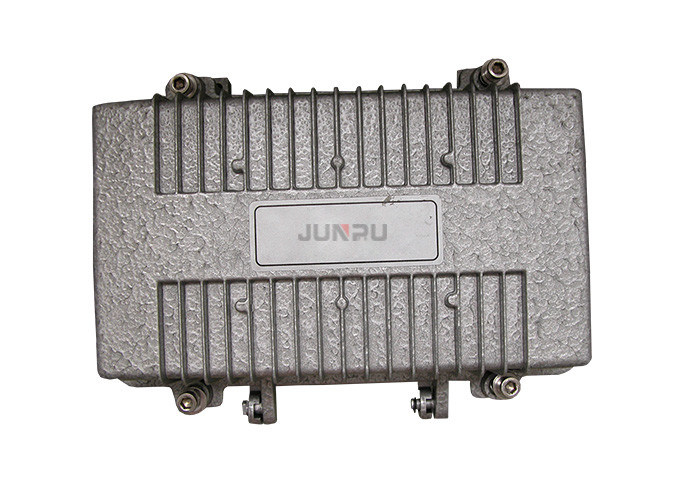

Bidirectional Catv HFC Cable Outdoor Optical Node 2 Ports With Return Path



Technical Specification:


Item Unit Technical Parameters
Forward Path Parameters
Optical Parameters
Receiving Optical Power dBm -8 ~ +2
Optical Return Loss dB >45
Optical Receiving Wavelength nm 1100 ~ 1600
Optical Connector Type   SC/APC or specified by the user
Fiber Type   Single mode
Link Parameters
C/N dB ≥ 51
C/CTB dB ≥ 65

-2dBm input, output power 106BμV

ATT 0dB

C/CSO dB ≥ 60
RF Parameters
Frequency Range MHz 45 ~862
Flatness in Band dB ±0.75
Rated Output Level dBμV ≥ 108(-8~2dBm)
Max Output Level dBμV ≥ 110
Output Return Loss dB ≥14
Output Impedance Ω 75
Return Path Parameters
Wavelength nm 1100-1600
Bandwidth MHz 5-30&42&65(max:200)
Output power mW 1&2
flatness dB ±0.75
General Characteristics
Power Voltage V A:AC(150~265)V;B:AC(35~90)V
Operating Temperature -40~60
Consumption VA ≤ 30

Bidirectional Catv HFC Cable Outdoor Optical Node 2 Ports With Return Path

Workshop:
Bidirectional Catv HFC Cable Outdoor Optical Node 2 Ports With Return Path

Bidirectional Catv HFC Cable Outdoor Optical Node 2 Ports With Return Path


We sincerely invite you to send us inquiry for further details.

Junpu Cares About Every Single Details Of The Product For You !
