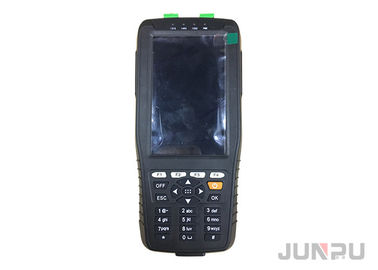

1550 1490 1310 Fiber Optic Tester Sc Apc PON Power Meter With Lithium Battery

China 1550 1490 1310 Fiber Optic Tester Sc Apc PON Power Meter With Lithium Battery supplier
1550 1490 1310 Fiber Optic Tester Sc Apc PON Power Meter With Lithium Battery supplier 1550 1490 1310 Fiber Optic Tester Sc Apc PON Power Meter With Lithium Battery supplier

Large Image :  1550 1490 1310 Fiber Optic Tester Sc Apc PON Power Meter With Lithium Battery

Product Details:

Place of Origin: China
Brand Name: JUNPU
Certification: CE ROHS
Model Number: JP70B

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: Standard export carton package
Delivery Time: 5 ~ 8 working days
Payment Terms: T/T, Alibaba, Credit Card
Supply Ability: 5000 units per month
Contact Now
Detailed Product Description
Product Name: 1550 1490 1310 Fiber Optic Tools Sc Apc PON Power Meter Standard Wavelengths: 1550 1490 1310
Uncertainty(dB): ±0.5 Resolution: 0.01dB
Battery: 3.7V 6600mAH Rechargeable Lithium Battery Weight(g):: About 370g


1550 1490 1310 Fiber Optic Tools Sc Apc PON Power Meter

Description
PON Power Meter (pon test instrument) is specially designed for PON network construction and maintenance which can be connected between OLT and ONT.
The voice, data, video signal (1310/1490/1550) online can be measured synchronously and optical power value (1310/1490/1550) can be displayed with this meter. It’s a useful site test tool for the engineers of PON network and maintenance operators.

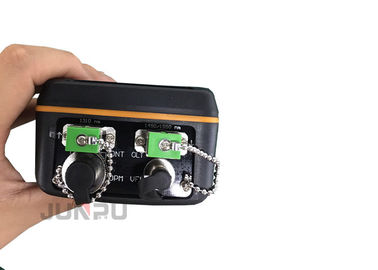

1550 1490 1310 Fiber Optic Tester Sc Apc PON Power Meter With Lithium Battery

Main Features
1. Handheld, easy to operate
2. Can test 3 wavelengths’ power of PON system synchronously: 1310nm, 1490nm, 1550nm,
3. Can test the burst mode signal of 1310nm
4. True color screen
5. Friendly operation interface, human message management and operation function
6. Supply 10 groups of threshold values for operator’s choice, analyze and display pass and fail status
7. Relative value choice and edit function
8. Can set the threshold value, upload data, and calibrate wavelength through management software
9. Auto shut off (according to set value)
10. Auto backlight off(according to set value)
11. 6600mAh Lithium battery
12. Power saving design (Low voltage self check and power off)
13. Real-time clock display
14. Optical Power Meter ( Optional Function)
15. Visual Fault Locator ( Optional Function)
Specifications
PON Power Meter:

Standard wavelengths131014901550
(upstream)(downstream)(downstream)
Pass zone(nm)1260~13601470~15051535~1570
Range(dBm)-50~+10-50~+10-45~+23
Isolation @1310nm(dB) >40>40
Isolation @1490nm(dB)>40 >40
Isolation @1550nm(dB)>40>40
Accuracy
Uncertainty(dB)±0.5
Polarization Dependent Loss (dB)<±0.25
Linearity(dB)±0.1
Through Insertion Loss(dB)<1.5
Resolution0.01dB
UnitdBm/xW

LCD: 480*800, True color touch screen
Battery: 3.7V 6600mAH rechargeable Lithium battery
Working temperature: -10~60°C
Storage Temperature: -25~70°C
Dimensions(mm) : 185*80*50
Weight(g): about 370g

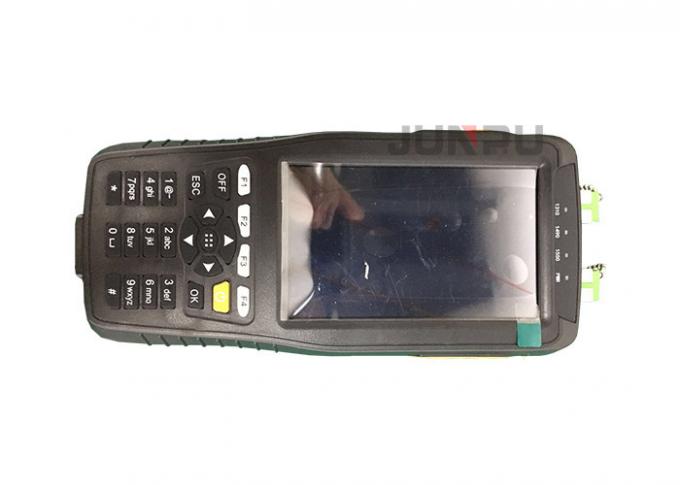

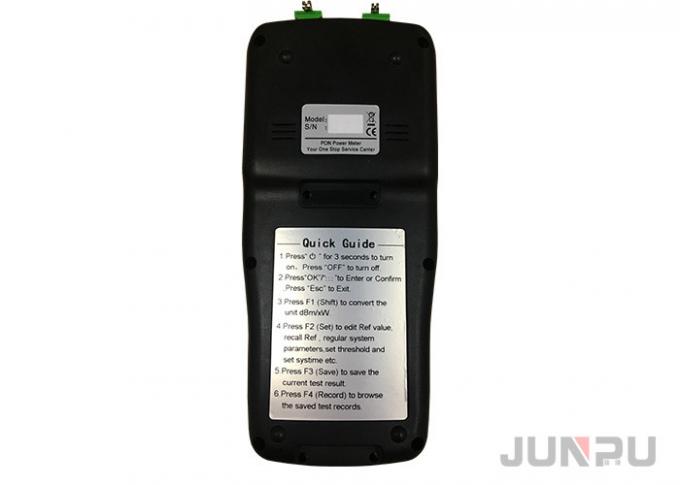

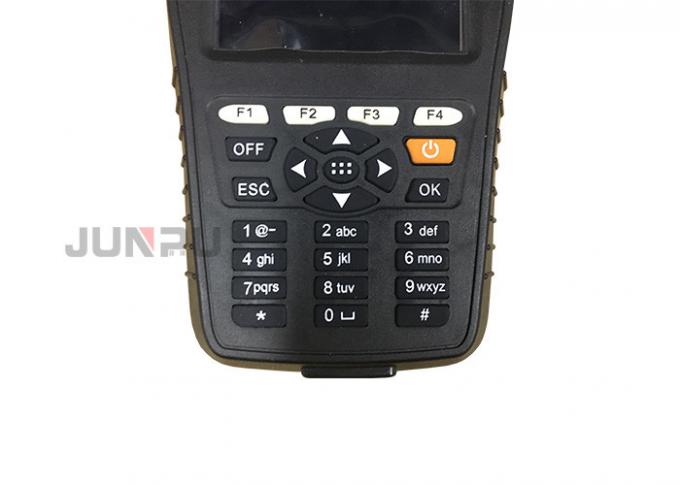

1550 1490 1310 Fiber Optic Tester Sc Apc PON Power Meter With Lithium Battery1550 1490 1310 Fiber Optic Tester Sc Apc PON Power Meter With Lithium Battery
Optical Power Meter ( Optional Function)
Visual Fault Locator ( Optional Function)



We sincerely invite you to send us inquiry for further details.
