Fiber Fusion Splicer Single Fiber Optic Tester Splicing Machine Core To Core

Product Details

Place of Origin: China

Certification: CE ROHS

Model Number: JP37

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Packaging Details: Standard export carton package

Delivery Time: 5 ~ 8 working days

Payment Terms: T/T, Alibaba, Credit Card

Supply Ability: 5000 units per month

Get Best Price
Highlight:

fiber optic test kit

,

fiber optic tools and equipment

Brand Name:
JUNPU
Product Name:
Fiber Fusion Splicer Single , Fiber Splicing Machine Core To Core
Fiber Aligning Method:
Core To Core
Splicing Time:
7s
Heating Time:
18s
Applicable Fibers:
SM,MM,DS,NZDS
Buyer Label:
Available
Brand Name:
JUNPU
Product Name:
Fiber Fusion Splicer Single , Fiber Splicing Machine Core To Core
Fiber Aligning Method:
Core To Core
Splicing Time:
7s
Heating Time:
18s
Applicable Fibers:
SM,MM,DS,NZDS
Buyer Label:
Available
Fiber Fusion Splicer Single Fiber Optic Tester Splicing Machine Core To Core



Fiber Fusion Splicer Single , Fiber Splicing Machine Core to Core

Description

The Fiber Splicing Machine has a new fully-digital design, core to core alignment, PAS Technology (Profile Alignment System), Standard accessories. Multiple language menu, 4.3 inch digital high definition LCD display, 7 Sec. splice time, 18 Sec. Tube-heat time..

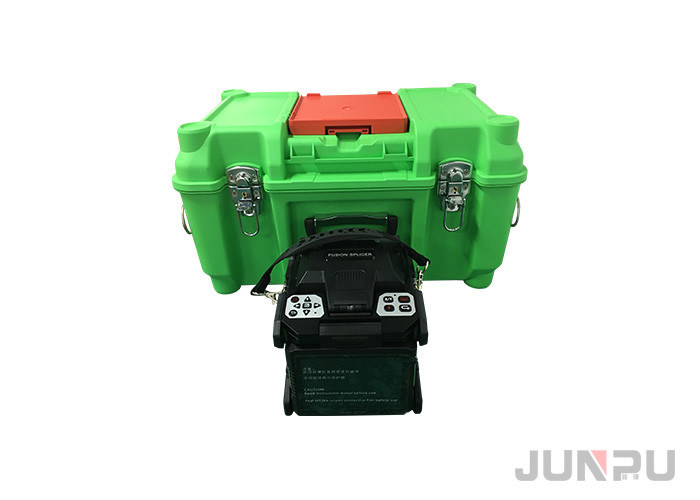

Fiber Fusion Splicer Single Fiber Optic Tester Splicing Machine Core To Core 0
Main Features
● Electrode Life: 4,000 times splicing
● 5.0 Color LCD Monitor
● Average Splicing Loss: 0.02dB
● Shock Proof, Dust Proof and Water Proof
● HD CMOS sensor and HD aligner for duble seperate optical fibers
● The carrying case built-in worktable
● Up to 200 times of continuous splices and heat
● Splice 0.25mm/0.9mm/3.0mm/ Flat cable
● Ideal for both indoor and outdoor splicing
● Take only 9 Seconds for Splicing,30 Seconds for Heating


Specifications

Applicable fibers SM MM DS NZDS
Fiber diameter Cladding diameter:80-150μm; Coating diameter:100-1000μm
Fiber count Single
Fiber cleaved length 12-16mm (Coating diameter:250μm)
Actual average splice loss 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)
Typical splicing time Typical 9 sec (standard SM fiber)
Return loss >60dB
Splicing mode Auto Calibrate Normal Special
Fiber aligning method Meticulous,Core,Clad,Manual
Splicing program 53 (templet), 40(user)
Tube heating program 9 (templet),24(user)
Tube typical heating time Typical 18 sec
Protection sleeve length 60mm, 40mm
Storage of splice result 4000 results, 20 parameter per result
Fiber image magnification 320X (X or Y view),150X (X and Y view)
Battery capacity Typical 160 cycles (splice/tube heat with inner Li-battery)
Monitor 4.3 inch color LCD monitor
Tension test 2N
Electrode life 4000
Terminal USB
Power supply AC 100-240V with AC adapter Inner Li-battery (7800mAH) DC 13.5V
Operating condition 0-5000m above sea level, -10-50℃ Max wind velocity of 15m/s
Dimension 150mm(L)×150mm(W)×150mm(H)
Weight 1.59Kg excluding battery,0.37Kg including battery

Fiber Fusion Splicer Single Fiber Optic Tester Splicing Machine Core To Core 1
