Home > products > Fiber Optic Distribution Box > 4 Port Fiber Optic Distribution Box Ftth Termination Box With SC Adapter

4 Port Fiber Optic Distribution Box Ftth Termination Box With SC Adapter

Product Details

Place of Origin: China

Brand Name: JUNPU

Certification: ROHS CE CCC

Model Number: JP-I1-4OA

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: Negotiation

Packaging Details: Strong Cartons Box

Delivery Time: 1 ~ 10 working days

Payment Terms: T/T, Western Union, Credit Card Via Alibaba

Supply Ability: 10000 Pieces Per Month

Get Best Price
Highlight:

fiber optic distribution unit

,

telecommunication distribution box

,

Ftth Termination Box With SC Adapter

Product Name:
4 Port Fiber Optic Terminal Box
Mode:
Wall Mounted
Free Sample:
Support
Size:
186*116*40mm
Connector:
SC, LC
Material:
PC, ABS
Port:
1in, 4 Out
Application:
Indoor Or Outdoor
Color:
Black, White, Grey
PLC Splitter:
1X4 Mini Steel Tube SC
Colorful Logo:
Support
OEM:
YES
Product Name:
4 Port Fiber Optic Terminal Box
Mode:
Wall Mounted
Free Sample:
Support
Size:
186*116*40mm
Connector:
SC, LC
Material:
PC, ABS
Port:
1in, 4 Out
Application:
Indoor Or Outdoor
Color:
Black, White, Grey
PLC Splitter:
1X4 Mini Steel Tube SC
Colorful Logo:
Support
OEM:
YES

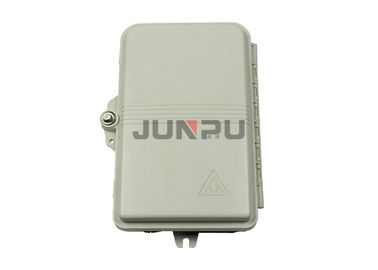

4 Port Fiber Optic Distribution Box Ftth Termination Box With SC Adapter

​Junpu Ftth Distribution Box 4 Port Fiber Optic Terminal Box With SC Adapter



Description:

  • JP-I1-4OA fiber access termination box is able to hold up to 4 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution,storage and cable connection in one solid protection box.



Features:



  • Manage fibers in a reasonable fiber radius condition.
  • Easy to maintain and extend the capacity.
  • Fiber bend radius control more than 40mm.
  • Suitable for the fusion splice or mechanical splice.
  • 1*4 Splitter can be installed as an option.
  • Efficient cable management.
  • 4 ports cable entrance for drop cable.



Application:



FTTH access network
Telecommunication Networks
CATV Networks
Data communications Networks



Details:

Parameters Specification
Material PC+ABS
Size 186*110*40mm
Capacity SC 4 ports, LC 8 ports,
Color White
Assemble Support

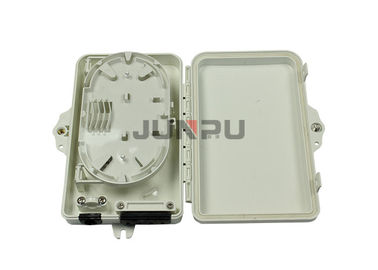

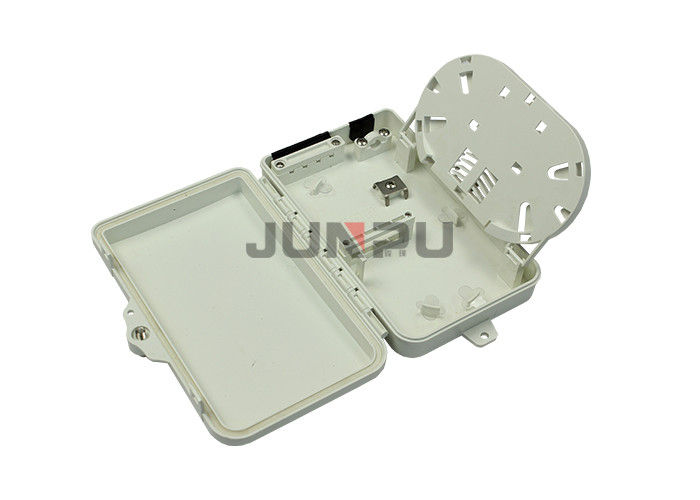

4 Port Fiber Optic Distribution Box Ftth Termination Box With SC Adapter 0

4 Port Fiber Optic Distribution Box Ftth Termination Box With SC Adapter 14 Port Fiber Optic Distribution Box Ftth Termination Box With SC Adapter 2





FAQ:



Q1: Are you a factory?

A: Yes, we are a factory.



Q2: what's your products' quality control?

1.Control the raw material,manpower allocation,working environments,equipment etc.
2.Improve the working standard ,cooperation ,training of workers etc.



Q3: Do you offer guarantee for the products?

A: Yes, we offer 1-2 years warranty to our products.



Q4: Could you offer the OEM service?

A: Yes, we can provide OEM service, manufacture as per your request.



Q5. May I take a sample order
A: Yes, free sample are available and MOQ is 1 piece.



Q6. What about the lead time?

A:Sample takes 3 days, mass production time takes 7-15 days for bulk order.



Q7. What about the shippment ?

A: International Express - DHL, UPS, FedEx or TNT.

Airline.

Sea/Marine shipping.



Junpu Fiber Optic Distribution Box Series

4 Port Fiber Optic Distribution Box Ftth Termination Box With SC Adapter 3
