Name: Network FTTH Wdm Edfa Combiner , 8 Ports Catv Amplifier 19dbm With SNMP
Brand: Hangzhou Junpu Optoelectronic Equipment Co., Ltd.
SKU: JP0819EAP
Availability: InStock

Product Details

Place of Origin: China

Brand Name: JUNPU

Certification: ROHS, CE, CCC

Model Number: JP0819EAP

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: Negotiation

Packaging Details: Standard Strong Carton Box

Delivery Time: 1 ~ 10 working days based on quantity

Payment Terms: T/T, Western Union, Credit Card Via Alibaba

Supply Ability: 1000 Pieces Per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                edfa erbium doped fiber amplifier, optical combiner, Network FTTH Wdm Edfa Combiner


Product Name:	FTTH Wdm Edfa Combiner 8 Ports Catv Amplifier	Number Of Outputs:	8 Ports
CATV Input:	1 Or 2 Port	CATV Operation Wavelength:	1540 ~ 1563nm
Application:	FTTH, Triple Play Network, GPON, EPON	Per Port Output Optical Power:	15,16,17,18,19,20,21,22,23dbm
CATV Input Power:	-10 ~ +10dbm	OEM:	Yes
Size:	2U Rack

Product Name:	FTTH Wdm Edfa Combiner 8 Ports Catv Amplifier
Number Of Outputs:	8 Ports
CATV Input:	1 Or 2 Port
CATV Operation Wavelength:	1540 ~ 1563nm
Application:	FTTH, Triple Play Network, GPON, EPON
Per Port Output Optical Power:	15,16,17,18,19,20,21,22,23dbm
CATV Input Power:	-10 ~ +10dbm
OEM:	Yes
Size:	2U Rack

Network FTTH Wdm Edfa Combiner , 8 Ports Catv Amplifier 19dbm With SNMP

Junpu FTTH Wdm Edfa Combiner 8 Ports Catv Amplifier 19dbm With SNMP

Product Features:

1540~1565nm operating bandwidth for optical amplifier
Each output optical port is with built-in high performance CWDM, single fiber three wavelengths, which can save optical fiber resources largely.
Output adjustable by buttons in the front panel or web SNMP, the range is down 4dBm
Can compatible with any FTTx PON technology: EPON/GEPON, GPON, BPON, DPON
Multi- ports output, can built in 1310/1490/1550WDM
Low noise figure ( Typ ≤4.5dB, Max ≤5.0dB )
Standard RJ 45 port for remote control, we can provide output contract and web manager for choice, and also plug-in SNMP hardware can be reserved for update.
With laser key to turn on/off the laser
Led displays the working condition of the machine
Dual power hot plug power supply for choice, 90V～250V AC or -48V DC

Details:

Parameter	Specification
Product Name	FTTH Wdm Edfa Combiner 8 Ports Catv Amplifier
Working Wavelength	Mixed output 1490/1310/1550nm
Connector Type	Catv port: SC APC Pon Port: SC APC or SC UPC Combine Port: SC APC
Output Optical Power	15,16,17,18,19,20,21,22,23dbm (customized)

Description:

JP0819EAP (2RU) series is a low noise, high performance, FTTP high power, multi-ports optical amplifier with gain spectrum band within 1540~1563nm. Each output port for optical amplifier has built-in well-performed CWDM. Every external up-link optical port of optical amplifier can connect with OLT PON port very conveniently. Each 1550nm (CATV)'s output optical port multiplex 1310/1490n's data stream, in order to reduce the quantity of the component and improve the index and reliability of the system.

JP0819EAP optical amplifier can be compatible with any FTTx PON Technology.
It offers a flexible and low-cost solution for three-network integration and Fiber to the Home.

FTTH Diagram:

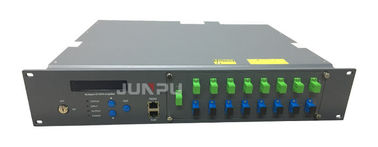

Network FTTH Wdm Edfa Combiner , 8 Ports Catv Amplifier 19dbm With SNMP 0

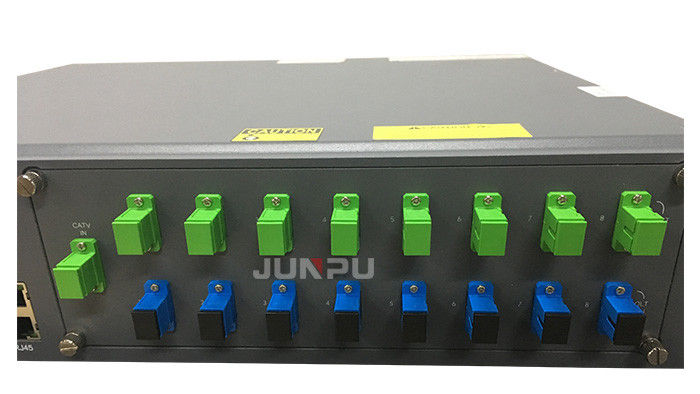

Network FTTH Wdm Edfa Combiner , 8 Ports Catv Amplifier 19dbm With SNMP 1

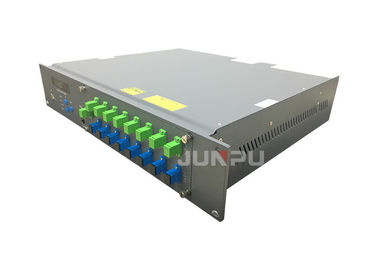

Network FTTH Wdm Edfa Combiner , 8 Ports Catv Amplifier 19dbm With SNMP 2

Network FTTH Wdm Edfa Combiner , 8 Ports Catv Amplifier 19dbm With SNMP 3

Network FTTH Wdm Edfa Combiner , 8 Ports Catv Amplifier 19dbm With SNMP 4

Technical Specification:

Performance			Index			Supplement
Performance			Min.	Typ.	Max.	Supplement
Optical feature	CATV operation wavelength	(nm)	1540		1565	CATV
	OLT pass wavelength	(nm)		1310/1490
	CATV pass wavelength loss	(dB)			0.8	1550nm
	OLT pass wavelength loss	(dB)			0.8	1310/1490nm
	CATV input power (Pi)	(dBm)	-10		+10
	Number of output ports	(pcs)			08	4/8/16/62/64
	Each port output power	(dBm)	0		13 ~22dbm	19dbm
	Difference of each output power	(dB)	-0.5		+0.5
	Output optical power monitoring	(dB)		-20
	Output power adjustable range	(dBm)	-3		0
	Noise figure	(dB)		4.5	5.0
	Noise figure	(dB)		5.0	6.0
	Polarization dependence loss	(dB)			0.3
	Polarization dependence gain	(dB)			0.4
	Polarization mode dispersion	(ps)			0.3
