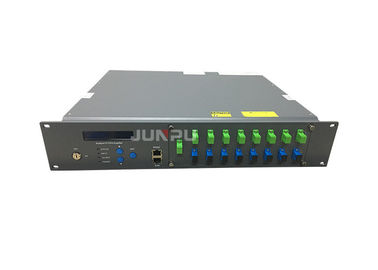

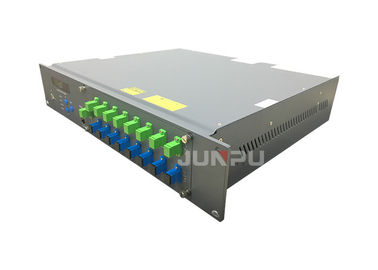

8 Port 21dbm Optical Amplifier FTTH Wdm Combiner With 2 Power Supply

Product Details

Place of Origin: China

Brand Name: JUNPU

Certification: ROHS, CE, CCC

Model Number: JP0821EAP

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: Negotiation

Packaging Details: Standard Strong Carton Box

Delivery Time: 1 ~ 10 working days based on quantity

Payment Terms: T/T, Western Union, Credit Card Via Alibaba

Supply Ability: 1000 Pieces Per Month

Get Best Price
Highlight:

high power optical amplifier

,

optical combiner

,

8 Port FTTH Wdm Combiner

Product Name:
8 Port 21dbm Optical Amplifier Ftth Wdm Combiner
Number Of Outputs:
8 Ports
CATV Input:
1 Or 2 Port
CATV Operation Wavelength:
1540 ~ 1563nm
Application:
FTTH, Triple Play Network, GPON, EPON
Per Port Output Optical Power:
15,16,17,18,19,20,21,22,23dbm
CATV Input Power:
-10 ~ +10dbm
OEM:
Yes
Size:
2U Rack
Product Name:
8 Port 21dbm Optical Amplifier Ftth Wdm Combiner
Number Of Outputs:
8 Ports
CATV Input:
1 Or 2 Port
CATV Operation Wavelength:
1540 ~ 1563nm
Application:
FTTH, Triple Play Network, GPON, EPON
Per Port Output Optical Power:
15,16,17,18,19,20,21,22,23dbm
CATV Input Power:
-10 ~ +10dbm
OEM:
Yes
Size:
2U Rack
8 Port 21dbm Optical Amplifier FTTH Wdm Combiner With 2 Power Supply

Junpu 8 Port 21dbm Optical Amplifier FTTH Wdm Combiner With 2 Power Supply



Description:

  • JP0821EAP (2RU) series is a low noise, high performance, FTTP high power, multi-ports optical amplifier with gain spectrum band within 1540~1563nm. Each output port for optical amplifier has built-in well-performed CWDM. Every external up-link optical port of optical amplifier can connect with OLT PON port very conveniently. Each 1550nm (CATV)'s output optical port multiplex 1310/1490n's data stream, in order to reduce the quantity of the component and improve the index and reliability of the system.
  • JP0821EAP optical amplifier can be compatible with any FTTx PON Technology.
  • It offers a flexible and low-cost solution for three-network integration and Fiber to the Home.



FTTH Diagram:

8 Port 21dbm Optical Amplifier FTTH Wdm Combiner With 2 Power Supply 0



Product Features:

  • 1540~1565nm operating bandwidth for optical amplifier
  • Each output optical port is with built-in high performance CWDM, single fiber three wavelengths, which can save optical fiber resources largely.
  • Output adjustable by buttons in the front panel or web SNMP, the range is down 4dBm
  • Can compatible with any FTTx PON technology: EPON/GEPON, GPON, BPON, DPON
  • Multi- ports output, can built in 1310/1490/1550WDM
  • Low noise figure ( Typ ≤4.5dB, Max ≤5.0dB )
  • Standard RJ 45 port for remote control, we can provide output contract and web manager for choice, and also plug-in SNMP hardware can be reserved for update.
  • With laser key to turn on/off the laser
  • Led displays the working condition of the machine
  • Dual power hot plug power supply for choice, 90V~250V AC or -48V DC



Details:

Parameter Specification
Product Name 8 port 21dbm optical amplifier ftth wdm combiner
Working Wavelength Mixed output 1490/1310/1550nm
Connector Type

Catv port: SC APC

Pon Port: SC APC or SC UPC

Combine Port: SC APC

Output Optical Power 15,16,17,18,19,20,21,22,23dbm  (customized)

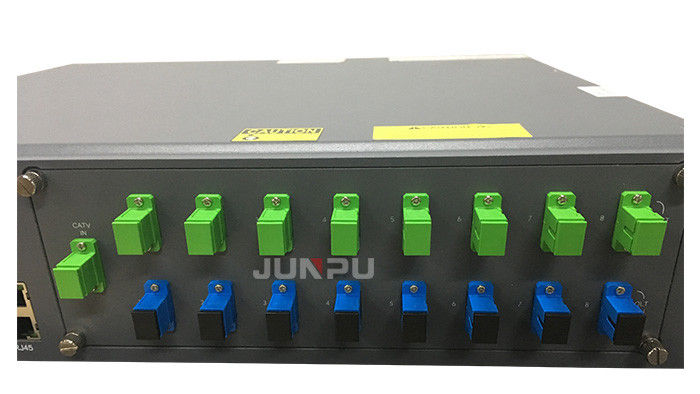

8 Port 21dbm Optical Amplifier FTTH Wdm Combiner With 2 Power Supply 1

8 Port 21dbm Optical Amplifier FTTH Wdm Combiner With 2 Power Supply 2

8 Port 21dbm Optical Amplifier FTTH Wdm Combiner With 2 Power Supply 3



8 Port 21dbm Optical Amplifier FTTH Wdm Combiner With 2 Power Supply 4



Technical Specification:



Performance Index Supplement
Min. Typ. Max.

Optical

feature

CATV operation wavelength (nm) 1540   1565 CATV
OLT pass wavelength (nm)   1310/1490
CATV pass wavelength loss (dB)     0.8 1550nm
OLT pass wavelength loss (dB)     0.8 1310/1490nm
CATV input power (Pi) (dBm) -10   +10
Number of output ports (pcs)     8 4/8/16/62/64
Each port output power (dBm) 0   13 ~22dbm 21dbm
Difference of each output power (dB) -0.5   +0.5
Output optical power monitoring (dB)   -20
Output power adjustable range (dBm) -3   0
Noise figure (dB)   4.5 5.0
  5.0 6.0
Polarization dependence loss (dB)     0.3
Polarization dependence gain (dB)     0.4
Polarization mode dispersion (ps)     0.3





Workshop

8 Port 21dbm Optical Amplifier FTTH Wdm Combiner With 2 Power Supply 5



Other EDFA WDM Series:



8 Port 21dbm Optical Amplifier FTTH Wdm Combiner With 2 Power Supply 6

8 Port 21dbm Optical Amplifier FTTH Wdm Combiner With 2 Power Supply 7



   8 Port 21dbm Optical Amplifier FTTH Wdm Combiner With 2 Power Supply 8



We sincerely invite you to send us inquiry for further details.

Junpu Cares About Every Single Details Of The Product For You !
