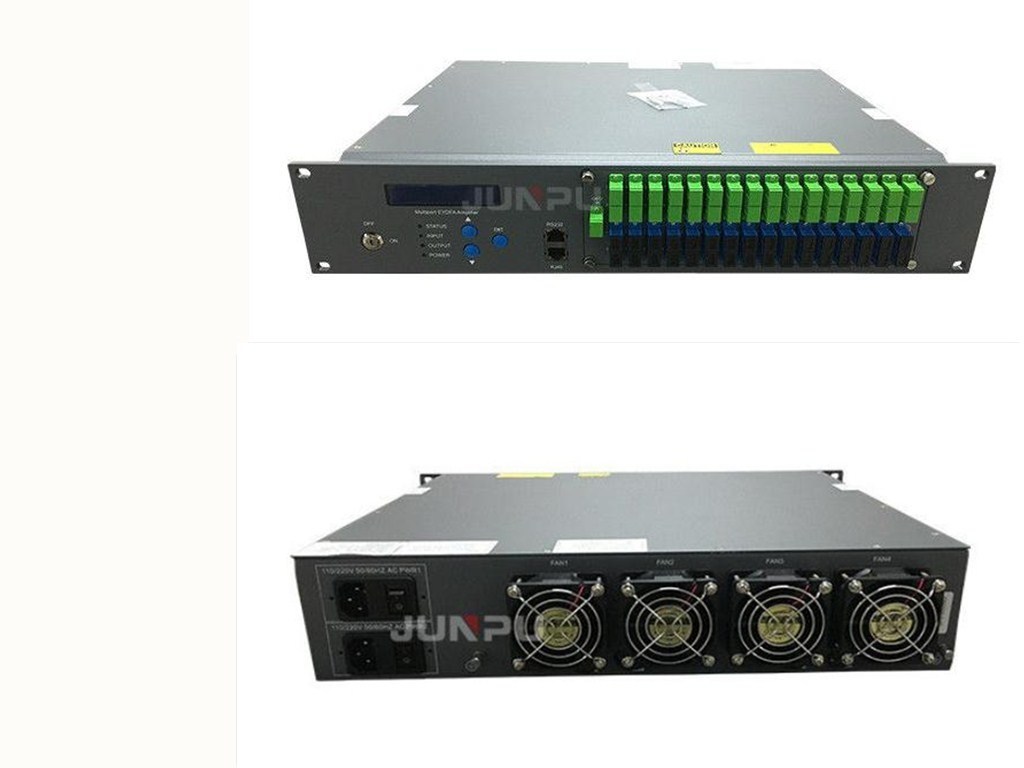

FTTH GPON Pon Catv Edfa Combiner Wdm 16 Port With Per Port 18dbm 2U Rack

Product Details

Place of Origin: China

Brand Name: JUNPU

Certification: ROHS, CE, CCC

Model Number: JP1618EAP

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: Negotiation

Packaging Details: Standard Strong Carton Box

Delivery Time: 1 ~ 10 working days based on quantity

Payment Terms: T/T, Western Union, Credit Card Via Alibaba

Supply Ability: 1000 Pieces Per Month

Get Best Price
Highlight:

high power optical amplifier

,

optical combiner

,

GPON Pon Catv Edfa Combiner

Product Name:
Pon Catv Edfa Combiner Wdm
Number Of Outputs:
16 Ports
CATV Input:
1 Or 2 Port
CATV Operation Wavelength:
1540 ~ 1563nm
Application:
FTTH, Triple Play Network, GPON, EPON
Per Port Output Optical Power:
15,16,17,18,19,20,21,22,23dbm
CATV Input Power:
-10 ~ +10dbm
OEM:
Yes
Size:
2U Rack
Product Name:
Pon Catv Edfa Combiner Wdm
Number Of Outputs:
16 Ports
CATV Input:
1 Or 2 Port
CATV Operation Wavelength:
1540 ~ 1563nm
Application:
FTTH, Triple Play Network, GPON, EPON
Per Port Output Optical Power:
15,16,17,18,19,20,21,22,23dbm
CATV Input Power:
-10 ~ +10dbm
OEM:
Yes
Size:
2U Rack
FTTH GPON Pon Catv Edfa Combiner Wdm 16 Port With Per Port 18dbm 2U Rack

Junpu 16 Port Pon Catv Edfa Combiner Wdm With Per Port 18dbm 2U Rack



Product Features:



  • Output adjustable by buttons in the front panel or web SNMP, the range is down 4dBm
  • Can compatible with any FTTx PON technology: EPON/GEPON, GPON, BPON, DPON
  • Multi- ports output, can built in 1310/1490/1550WDM
  • Low noise figure ( Typ ≤4.5dB, Max ≤5.0dB )
  • Standard RJ 45 port for remote control, we can provide output contract and web manager for choice, and also plug-in SNMP hardware can be reserved for update.
  • With laser key to turn on/off the laser
  • Led displays the working condition of the machine
  • Dual power hot plug power supply for choice, 90V~250V AC or -48V DC

Description:

  • JP1618EAP (2RU) series is a low noise, high performance, FTTP high power, multi-ports optical amplifier with gain spectrum band within 1540~1563nm. Each output port for optical amplifier has built-in well-performed CWDM. Every external up-link optical port of optical amplifier can connect with OLT PON port very conveniently. Each 1550nm (CATV)'s output optical port multiplex 1310/1490n's data stream, in order to reduce the quantity of the component and improve the index and reliability of the system.
  • JP1618EAP optical amplifier can be compatible with any FTTx PON Technology.
  • It offers a flexible and low-cost solution for three-network integration and Fiber to the Home.



FTTH Diagram:

FTTH GPON Pon Catv Edfa Combiner Wdm 16 Port With Per Port 18dbm 2U Rack 0







Details:

Parameter Specification
Product Name Pon Catv Edfa Combiner Wdm
Working Wavelength Mixed output 1490/1310/1550nm
Connector Type

Catv port: SC APC

Pon Port: SC APC or SC UPC

Combine Port: SC APC

Output Optical Power 15,16,17,18,19,20,21,22,23dbm  (customized)



FTTH GPON Pon Catv Edfa Combiner Wdm 16 Port With Per Port 18dbm 2U Rack 1





FTTH GPON Pon Catv Edfa Combiner Wdm 16 Port With Per Port 18dbm 2U Rack 2



FTTH GPON Pon Catv Edfa Combiner Wdm 16 Port With Per Port 18dbm 2U Rack 3





FTTH GPON Pon Catv Edfa Combiner Wdm 16 Port With Per Port 18dbm 2U Rack 4



Technical Specification:



Performance Index Supplement
Min. Typ. Max.

Optical

feature

CATV operation wavelength (nm) 1540   1565 CATV
OLT pass wavelength (nm)   1310/1490
CATV pass wavelength loss (dB)     0.8 1550nm
OLT pass wavelength loss (dB)     0.8 1310/1490nm
CATV input power (Pi) (dBm) -10   +10
Number of output ports (pcs)     16 4/8/16/62/64
Each port output power (dBm) 0   13 ~22dbm 18dbm
Difference of each output power (dB) -0.5   +0.5
Output optical power monitoring (dB)   -20
Output power adjustable range (dBm) -3   0
Noise figure (dB)   4.5 5.0
  5.0 6.0
Polarization dependence loss (dB)     0.3
Polarization dependence gain (dB)     0.4
Polarization mode dispersion (ps)     0.3



Workshop

FTTH GPON Pon Catv Edfa Combiner Wdm 16 Port With Per Port 18dbm 2U Rack 5

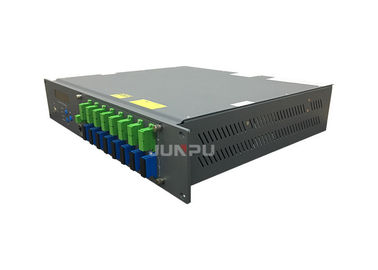

Other EDFA WDM Series:



FTTH GPON Pon Catv Edfa Combiner Wdm 16 Port With Per Port 18dbm 2U Rack 6



FTTH GPON Pon Catv Edfa Combiner Wdm 16 Port With Per Port 18dbm 2U Rack 7

   FTTH GPON Pon Catv Edfa Combiner Wdm 16 Port With Per Port 18dbm 2U Rack 8



We sincerely invite you to send us inquiry for further details.

Junpu Cares About Every Single Details Of The Product For You !
