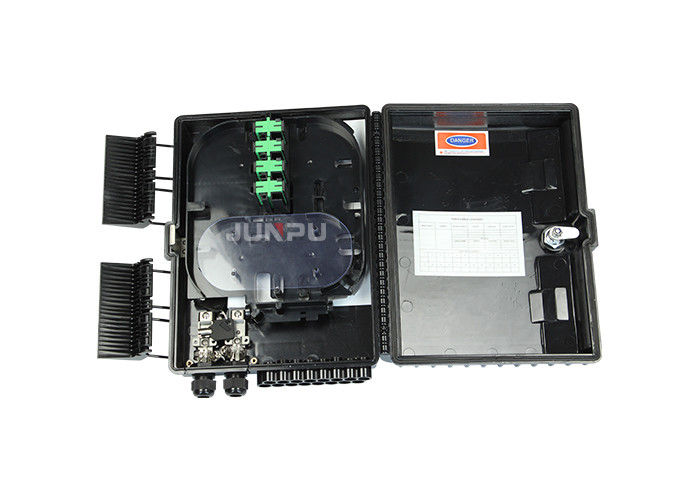

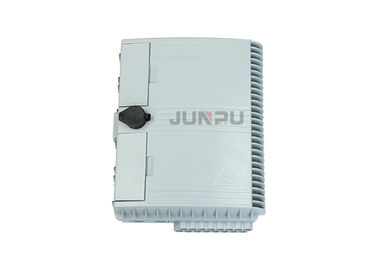

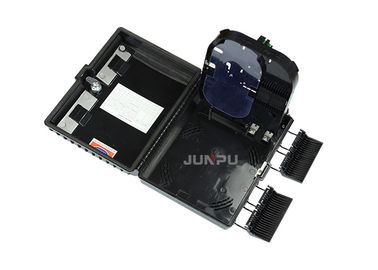

FTTH Fiber Optic Distribution Box 16 Fibers Wall Mounted / Pole Mounted

FTTH Fiber Optic Distribution Box 16 Fibers Wall Mounted / Pole Mounted
FTTH Fiber Optic Distribution Box 16 Fibers Wall Mounted / Pole Mounted FTTH Fiber Optic Distribution Box 16 Fibers Wall Mounted / Pole Mounted FTTH Fiber Optic Distribution Box 16 Fibers Wall Mounted / Pole Mounted

Large Image :  FTTH Fiber Optic Distribution Box 16 Fibers Wall Mounted / Pole Mounted

Product Details:
Place of Origin: China
Brand Name: JUNPU
Certification: ROHS CE CCC
Model Number: JP-I2-16OA
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Strong Cartons Box
Delivery Time: 1 ~ 10 working days
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Supply Ability: 10000 Pieces Per Month
Detailed Product Description
Product Name: Fiber Optic Distribution Nap Box Mode: Wall Mounted Or Pole-Mounting
Free Sample: Support Size: 295*220*85mm
Connector: SC, LC Optical Adapter Material: PC, ABS
Port: 2 In, 16 Out Application: Indoor Or Outdoor
Color: Black, White PLC Splitter: Mini Steel Tube
Colorful Logo: Support OEM: YES
High Light:

optical fiber distribution box

,

fiber optic distribution unit

Junpu 16 Fibers Fiber Optic Distribution Nap box FTTH Wall or Pole Mounting

Description:

  • JP-I2-16OA fiber access termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution,storage and cable connection in one solid protection box.


Features:

  • Water-proof design with IP-66 Protection level.
  • Integrated with splice cassette and cable management rods.
  • Manage fibers in a reasonable fiber radius condition.
  • Easy to maintain and extend the capacity.
  • Fiber bend radius control more than 40mm.
  • Suitable for the fusion splice or mechanical splice.
  • 2 pcs of 1*8 Splitter can be installed as an option.
  • Efficient cable management.
  • 16 ports cable entrance for drop cable.


Application:

  • FTTH access network
  • Telecommunication Networks
  • CATV Networks
  • Data communications Networks


Details:

Product Name 16 Fibers Fiber Optic Distribution Nap Box
Parameters Specification
Material PC+ABS
Size 295*220*85mm
Capacity SC 16 ports
Color White, black
Assemble Support


FTTH Fiber Optic Distribution Box 16 Fibers Wall Mounted / Pole Mounted 0

FTTH Fiber Optic Distribution Box 16 Fibers Wall Mounted / Pole Mounted 1FTTH Fiber Optic Distribution Box 16 Fibers Wall Mounted / Pole Mounted 2FTTH Fiber Optic Distribution Box 16 Fibers Wall Mounted / Pole Mounted 3

FTTH Fiber Optic Distribution Box 16 Fibers Wall Mounted / Pole Mounted 4


FAQ:

Q1: Are you a factory?
A: Yes, we are a factory.

Q2: what's your products' quality control?
1.Control the raw material,manpower allocation,working environments,equipment etc.
2.Improve the working standard ,cooperation ,training of workers etc.


Q3: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our products.

Q4: Could you offer the OEM service?
A: Yes, we can provide OEM service, manufacture as per your request.

Q5. May I take a sample order
A: Yes, free sample are available and MOQ is 1 piece.


Q6. What about the lead time?
A:Sample takes 3 days, mass production time takes 7-15 days for bulk order.

Q7. What about the shippment ?
A: International Express - DHL, UPS, FedEx or TNT.
Airline.
Sea/Marine shipping.
