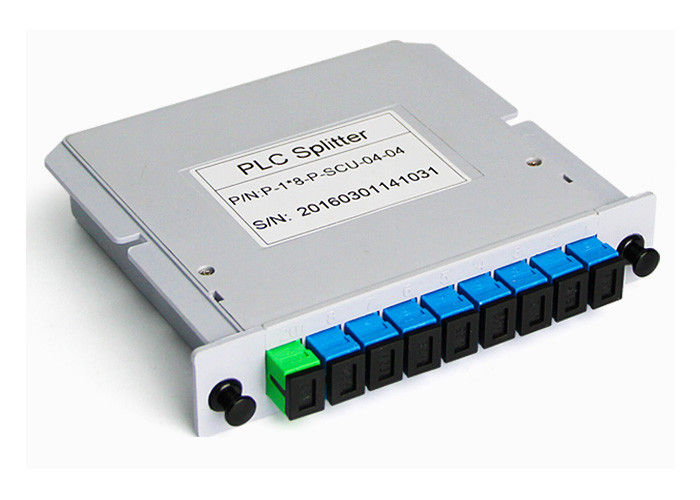

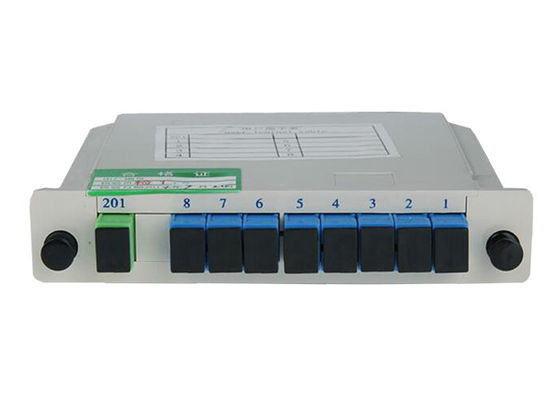

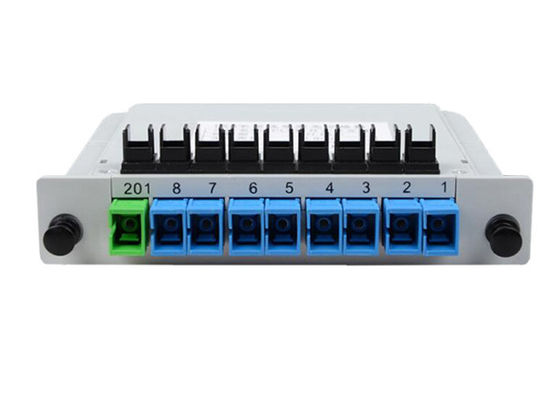

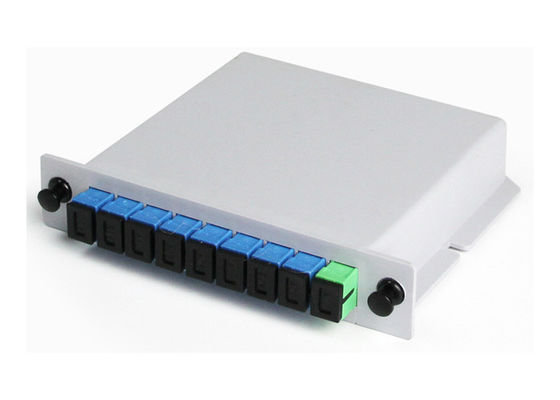

FTTH Cassette Fiber Optic Splitter , 1x8 PLC Optical Splitter SC UPC Connector

FTTH Cassette Fiber Optic Splitter , 1x8 PLC Optical Splitter SC UPC Connector
FTTH Cassette Fiber Optic Splitter , 1x8 PLC Optical Splitter SC UPC Connector FTTH Cassette Fiber Optic Splitter , 1x8 PLC Optical Splitter SC UPC Connector FTTH Cassette Fiber Optic Splitter , 1x8 PLC Optical Splitter SC UPC Connector FTTH Cassette Fiber Optic Splitter , 1x8 PLC Optical Splitter SC UPC Connector

Large Image :  FTTH Cassette Fiber Optic Splitter , 1x8 PLC Optical Splitter SC UPC Connector

Product Details:
Place of Origin: China
Brand Name: JUNPU
Certification: ROHS, CE, CCC
Model Number: splitter 1x8 sc upc
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Standard Strong Carton Box
Delivery Time: 1 ~ 10 Working days based on quantity
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Detailed Product Description
Connector Type: SC,FC,LC,ST Ferrule End-face: PC, UPC,APC
Fiber Type: G652D G657A1 G657A2 Fiber Mode: Singlmode
Package: Steel Tube, ABS Structure: 1X8
Product Name: Fiber Optic Splitter 1x8
High Light:

fiber optic plc splitter

,

fiber optic cable splitter

Junpu FTTH Cassette PLC Fiber Optic Splitter 1x8 SC UPC Connector



Description:

  • Optical fiber splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.
  • It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.



Feature:

  • Adopt high strength stainless steel, pass salt spray test
  • Ferrule core is less than 0.5um
  • Adopt 100% new raw material, ROHS compliance
  • Low Insertion loss
  • Low PDL Compact Design
  • Good channel-to-channel uniformity
  • Wide Operating Wavelength: from 1260nm to 1650nm
  • Wide Operating Temperature: from -40℃ to 85℃



Application:

  • Fiber to the point (FTTX)
  • Fiber to the home (FTTH)
  • Passive optical networks(PON, GEPON)
  • Local area networks (LAN)
  • Cable television (CATV)
  • Test equipment



Specification:


Table 1 – 1×N PLC Fiber Splitter

Parameters 1×2 1×4 1×8 1×16 1×32 1×64
Operating Wavelength (nm) 1260~1650
Fiber Type G657A or customer specified
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.9 20.5/21.0
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2.0
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temperature Stability(-40~85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40~85
Storage Temperature (℃) -40~85
Package Steel Tube or ABS



Table 2 – 2×N PLC Fiber Splitter

Parameters 2×2 2×4 2×8 2×16 2×32 2×64
Operating Wavelength (nm) 1260~1650
Fiber Type G657A or customer specified
Insertion Loss (dB) 4.0 7.6 11.0 14.4 17.5 21.0
Loss Uniformity (dB) 0.6 1.0 1.2 1.5 1.8 2.2
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Polarization Dependent Loss(dB) 0.2 0.2 0.3 0.3 0.4 0.4
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.4 0.5 0.5 0.5 0.5
Temperature Stability(-40~85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40~85
Storage Temperature (℃) -40~85
Package Steel Tube or ABS

Notes:

  1. Specified without connectors.
  2. Add an additional 0.15dB loss per connector

 FTTH Cassette Fiber Optic Splitter , 1x8 PLC Optical Splitter SC UPC Connector 0FTTH Cassette Fiber Optic Splitter , 1x8 PLC Optical Splitter SC UPC Connector 1FTTH Cassette Fiber Optic Splitter , 1x8 PLC Optical Splitter SC UPC Connector 2FTTH Cassette Fiber Optic Splitter , 1x8 PLC Optical Splitter SC UPC Connector 3FTTH Cassette Fiber Optic Splitter , 1x8 PLC Optical Splitter SC UPC Connector 4
