SC APC 1x16 Fiber Optic PLC Splitter Singl Mode Compact Design For FTTH

SC APC 1x16 Fiber Optic PLC Splitter Singl Mode Compact Design For FTTH
SC APC 1x16 Fiber Optic PLC Splitter Singl Mode Compact Design For FTTH SC APC 1x16 Fiber Optic PLC Splitter Singl Mode Compact Design For FTTH SC APC 1x16 Fiber Optic PLC Splitter Singl Mode Compact Design For FTTH

Large Image :  SC APC 1x16 Fiber Optic PLC Splitter Singl Mode Compact Design For FTTH

Product Details:
Place of Origin: China
Brand Name: JUNPU
Certification: ROHS, CE, CCC
Model Number: fiber 1x16 plc splitter
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Standard Strong Carton Box
Delivery Time: 1 ~ 10 Working days based on quantity
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Detailed Product Description
Connector Type: SC,FC,LC,ST Ferrule End-face: PC, UPC,APC
Fiber Type: G652D G657A1 G657A2 Fiber Mode: Singlmode
Package: Steel Tube, ABS Structure: 1X8
Product Name: Fiber 1x16 Plc Splitter Optical Splitter Core: Corning Core
PLC Splitter In Tension: >=100N
High Light:

fiber optic plc splitter

,

fiber optic cable splitter

Junpu SC APC Fiber 1x16 PLC Splitter Singlmode Compact Design FTTH Application



Description:

  • Optical fiber splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.
  • It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.



Feature:

  • Adopt high strength stainless steel, pass salt spray test
  • Ferrule core is less than 0.5um
  • Adopt 100% new raw material, ROHS compliance
  • Low Insertion loss
  • Low PDL Compact Design
  • Good channel-to-channel uniformity
  • Wide Operating Wavelength: from 1260nm to 1650nm
  • Wide Operating Temperature: from -40℃ to 85℃



Application:



  • FTTX Systems
  • PON Networks
  • CATV Links
Product Name SC APC Fiber 1x16 PLC Splitter Singlmode
Operating wavelength 1260 ~ 1650nm
Connector Type SC APC, SC, LC, FC, ST



Specification:

Parameters 1×2 1×4 1×8 1×16 1×32 1×64
Operating Wavelength (nm) 1260~1650
Fiber Type G657A or customer specified
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.9 20.5/21.0
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2.0
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Polarization Dependent loss 0.2 0.2 0.2 0.25 0.3 0.35
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss 0.3 0.3 0.3 0.5 0.5 0.5
Temperature Stability(-40~85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40~85
Storage Temperature (℃) -40~85
Package Steel Tube or ABS

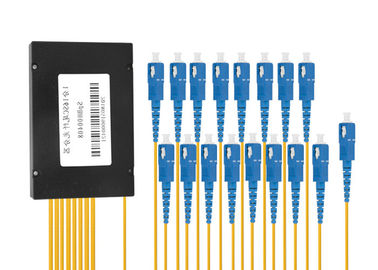

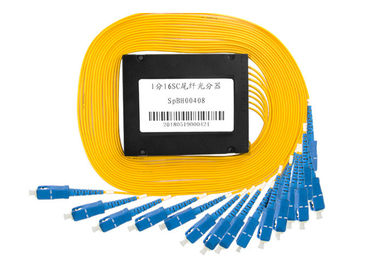

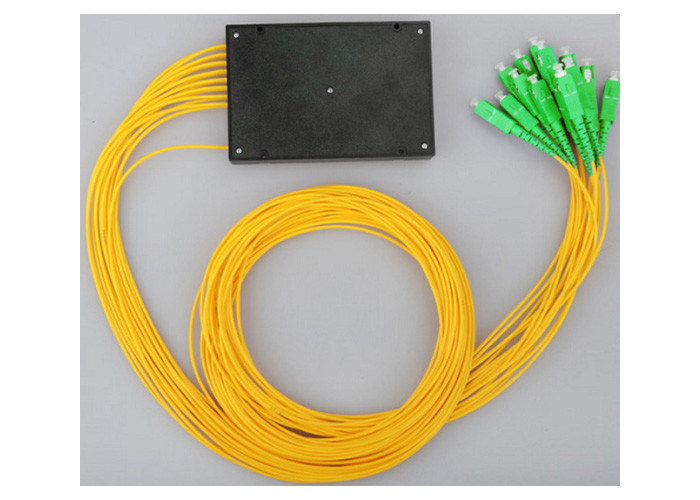

 SC APC 1x16 Fiber Optic PLC Splitter Singl Mode Compact Design For FTTH 0SC APC 1x16 Fiber Optic PLC Splitter Singl Mode Compact Design For FTTH 1SC APC 1x16 Fiber Optic PLC Splitter Singl Mode Compact Design For FTTH 2



We sincerely invite you to send us inquiry for further details.

Junpu Cares About Every Single Details Of The Product For You !
