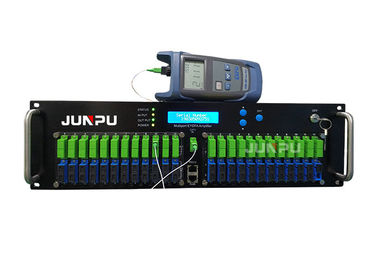

48 Ports FTTH Gpon EDFA WDM High Power Edfa Optical Amplifier 3U Rack

Product Details

Place of Origin: China

Brand Name: JUNPU

Certification: ROHS, CE, CCC

Model Number: JP4820EAP

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: Negotiation

Packaging Details: Standard Strong Carton Box

Delivery Time: 1 ~ 10 working days based on quantity

Payment Terms: T/T, Western Union, Credit Card Via Alibaba

Supply Ability: 1000 Pieces Per Month

Get Best Price
Highlight:

high power optical amplifier

,

optical combiner

,

FTTH Gpon EDFA WDM 48 Ports

Product Name:
48 Ports High Power Edfa Optical Amplifier , FTTH Gpon EDFA WDM 3U Rack
Number Of Outputs:
48 Ports
CATV Input:
1 Or 2 Port
CATV Operation Wavelength:
1540 ~ 1563nm
Application:
FTTH, Triple Play Network, GPON, EPON
Per Port Output Optical Power:
15,16,17,18,19,20dbm
CATV Input Power:
-10 ~ +10dbm
OEM:
Yes
Size:
3U Rack
Product Name:
48 Ports High Power Edfa Optical Amplifier , FTTH Gpon EDFA WDM 3U Rack
Number Of Outputs:
48 Ports
CATV Input:
1 Or 2 Port
CATV Operation Wavelength:
1540 ~ 1563nm
Application:
FTTH, Triple Play Network, GPON, EPON
Per Port Output Optical Power:
15,16,17,18,19,20dbm
CATV Input Power:
-10 ~ +10dbm
OEM:
Yes
Size:
3U Rack
48 Ports FTTH Gpon EDFA WDM High Power Edfa Optical Amplifier 3U Rack



48 Ports High Power Edfa Optical Amplifier , FTTH Gpon EDFA WDM 3U Rack



Description:

  • JP4820EAP (3RU) series is a low noise, high performance, FTTP high power, multi-ports optical amplifier with gain spectrum band within 1540~1563nm. Each output port for optical amplifier has built-in well-performed CWDM. Every external up-link optical port of optical amplifier can connect with OLT PON port very conveniently. Each 1550nm (CATV)'s output optical port multiplex 1310/1490n's data stream, in order to reduce the quantity of the component and improve the index and reliability of the system.
  • JP44820EAP optical amplifier can be compatible with any FTTx PON Technology.
  • It offers a flexible and low-cost solution for three-network integration and Fiber to the Home.

48 Ports FTTH Gpon EDFA WDM High Power Edfa Optical Amplifier 3U Rack 0

FTTH Diagram:

48 Ports FTTH Gpon EDFA WDM High Power Edfa Optical Amplifier 3U Rack 1



Product Features:

  • 1540~1565nm operating bandwidth for optical amplifier
  • Each output optical port is with built-in high performance CWDM, single fiber three wavelengths, which can save optical fiber resources largely.
  • Output adjustable by buttons in the front panel or web SNMP, the range is down 4dBm
  • Can compatible with any FTTx PON technology: EPON/GEPON, GPON, BPON, DPON
  • Multi- ports output, can built in 1310/1490/1550WDM
  • Low noise figure ( Typ ≤4.5dB, Max ≤5.0dB )
  • Standard RJ 45 port for remote control, we can provide output contract and web manager for choice, and also plug-in SNMP hardware can be reserved for update.
  • With laser key to turn on/off the laser
  • Led displays the working condition of the machine
  • Dual power hot plug power supply for choice, 90V~250V AC or -48V DC



Details:

Parameter Specification
Product Name 48 Ports High Power Edfa Optical Amplifier , FTTH Gpon EDFA WDM 3U Rack
Working Wavelength Mixed output 1490/1310/1550nm
Connector Type

Catv port: SC APC

Pon Port: SC APC or SC UPC

Combine Port: SC APC

Output Optical Power 15,16,17,18,19,20dbm  (customized)





48 Ports FTTH Gpon EDFA WDM High Power Edfa Optical Amplifier 3U Rack 248 Ports FTTH Gpon EDFA WDM High Power Edfa Optical Amplifier 3U Rack 3



Technical Specification:



Performance Index Supplement
Min. Typ. Max.

Optical

feature

CATV operation wavelength (nm) 1540   1565 CATV
OLT pass wavelength (nm)   1310/1490
CATV pass wavelength loss (dB)     0.8 1550nm
OLT pass wavelength loss (dB)     0.8 1310/1490nm
CATV input power (Pi) (dBm) -10   +10
Number of output ports (pcs)     48
Each port output power (dBm) 0   13 ~22dbm 20
Difference of each output power (dB) -0.5   +0.5
Output optical power monitoring (dB)   -20
Output power adjustable range (dBm) -3   0
Noise figure (dB)   4.5 5.0
  5.0 6.0
Polarization dependence loss (dB)     0.3
Polarization dependence gain (dB)     0.4
Polarization mode dispersion (ps)     0.3



Workshop

48 Ports FTTH Gpon EDFA WDM High Power Edfa Optical Amplifier 3U Rack 4

   48 Ports FTTH Gpon EDFA WDM High Power Edfa Optical Amplifier 3U Rack 5



We sincerely invite you to send us inquiry for further details.

Junpu Cares About Every Single Details Of The Product For You !
