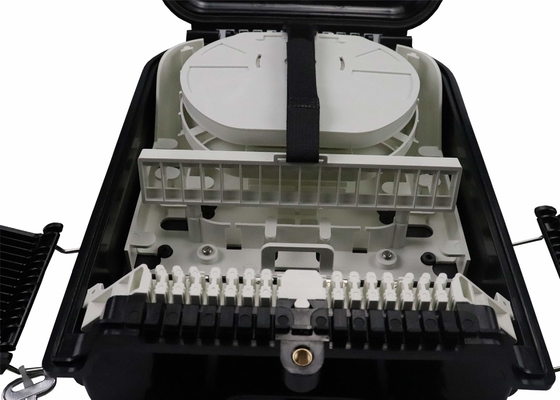

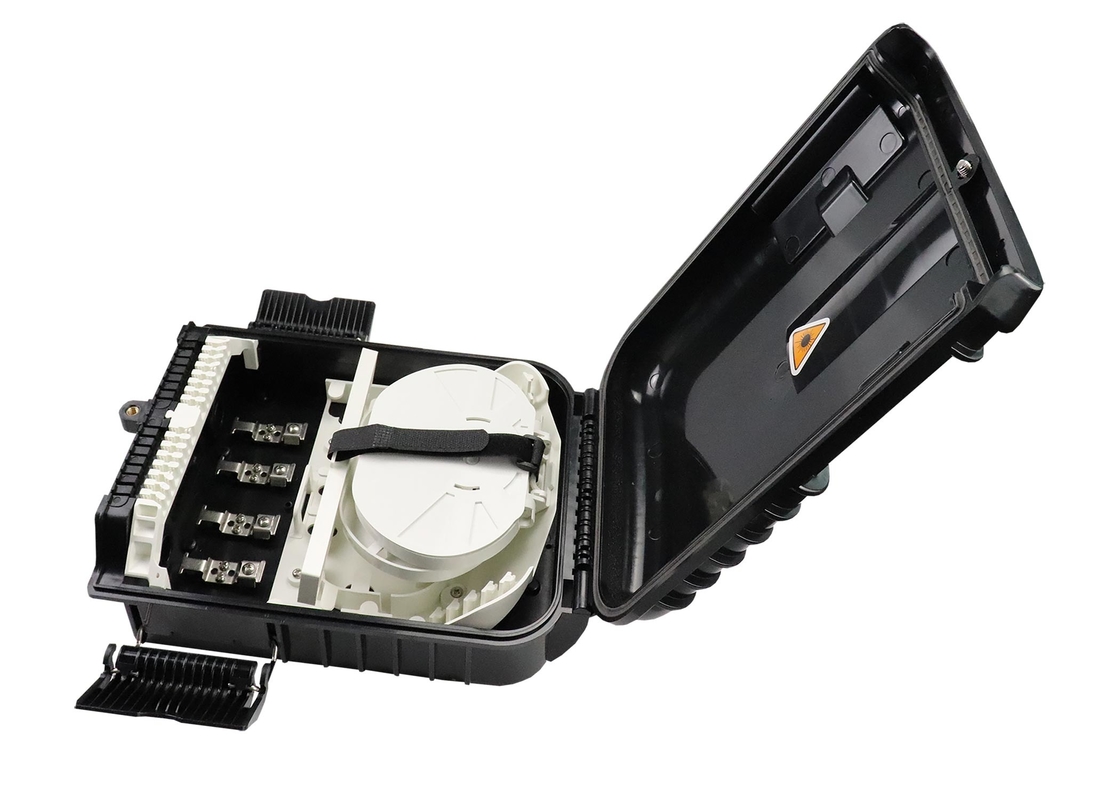

FAP-16W-2 Fiber Terminal Closure 2Pcs 1x8 Splitter Mechanical Sealing

FAP-16W-2 Fiber Terminal Closure 2Pcs 1x8 Splitter Mechanical Sealing
FAP-16W-2 Fiber Terminal Closure 2Pcs 1x8 Splitter Mechanical Sealing FAP-16W-2 Fiber Terminal Closure 2Pcs 1x8 Splitter Mechanical Sealing FAP-16W-2 Fiber Terminal Closure 2Pcs 1x8 Splitter Mechanical Sealing

Large Image :  FAP-16W-2 Fiber Terminal Closure 2Pcs 1x8 Splitter Mechanical Sealing

Product Details:
Place of Origin: China
Brand Name: JUNPU
Certification: ROHS, CE, CCC
Model Number: JP-FAP-16W-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Standard Strong Carton Box
Delivery Time: 1 ~ 10 Working days based on the quantity
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Supply Ability: 10000 Pieces Per Month
Detailed Product Description
Product Name: FAP-16W-2 Fiber Access Terminal Closure Free Sample: Support
MOQ: 1 Piece Material: PC ABS
Port: 2 Size: 290*210*78mm
Color: Black Colorful Logo: YES
OEM: YES Max Capacity: 2pc Of 1*8 PLC Splitter
High Light:

1x8 Splitter Fiber Terminal Closure

,

Mechanical Sealing Fiber Terminal Closure

,

FAP-16W-2 Fiber Terminal Closure

FAP-16W-2 Fiber Terminal Closure ,2Pcs Of 1*8 Splitter ,Mechanical Sealing Structure And Mid-Span Cable Entry



Junpu FAP-16W-2 Fiber Terminal Closure​



Decsripttion:



        Fiber access termination closure is able to hold up to 16subscribers and 24splicing points as closure.

        It is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTX

        network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid

        protection box.





Features:

  • Optical fiber radius of curvature: ≥40mm
  • Splice tray additional loss: ≤0.1dB
  • Temperature range: -40°C ~ +60°C
  • Anti side pressure: ≥2000N/10cm
  • Impact resistance: ≥20N.m
  • Protection class: IP65​


Application:



  • Wall mounting and pole mounting installation
  • FTTH pre-installation and filed installation
  • 2*3mm indoor FTTH drop cable and outdoor figure-8FTTH self-supporting drop cable



Product Name Junpu FAP-16W-2 Fiber Terminal Closure​

Paremeter

Specification
Max Adapter Number

16pcs - 2pcs@mini steel tube splitter;
9pcs - 1pcs@ inside LGX splitter

Cable Diameter Φ7-φ18
Max Splice Tray 1pcs
Max Fusion Splice 16 Core
Cable Port

2*3mm indoor FTTH drop cableand outdoor figure-8FTTH self-supporting drop cable

Dimension 290*210*78mm


Details:
FAP-16W-2 Fiber Terminal Closure 2Pcs 1x8 Splitter Mechanical Sealing 0FAP-16W-2 Fiber Terminal Closure 2Pcs 1x8 Splitter Mechanical Sealing 1FAP-16W-2 Fiber Terminal Closure 2Pcs 1x8 Splitter Mechanical Sealing 2


FAQ:


Q1: Are you a factory?
A: Yes, we are a factory.

Q2: what's your products' quality control?
1.Control the raw material,manpower allocation,working environments,equipment etc.
2.Improve the working standard ,cooperation ,training of workers etc.


Q3: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our products.

Q4: Could you offer the OEM service?
A: Yes, we can provide OEM service, manufacture as per your request.

Q5. May I take a sample order
A: Yes, free sample are available and MOQ is 1 piece.


Q6. What about the lead time?
A:Sample takes 3 days, mass production time takes 7-15 days for bulk order.

Q7. What about the shippment ?
A: International Express - DHL, UPS, FedEx or TNT.
Airline.
Sea/Marine shipping.
