Fast Connector Outdoor Splitter Distribution Box 16 Core

Fast Connector Outdoor Splitter Distribution Box 16 Core
Fast Connector Outdoor Splitter Distribution Box 16 Core Fast Connector Outdoor Splitter Distribution Box 16 Core Fast Connector Outdoor Splitter Distribution Box 16 Core Fast Connector Outdoor Splitter Distribution Box 16 Core Fast Connector Outdoor Splitter Distribution Box 16 Core

Large Image :  Fast Connector Outdoor Splitter Distribution Box 16 Core

Product Details:
Place of Origin: China
Brand Name: JUNPU
Certification: ROHS, CE, CCC
Model Number: JP-FAP-16W-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Standard Strong Carton Box
Delivery Time: 1 ~ 10 Working days based on the quantity
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Supply Ability: 10000 Pieces Per Month
Detailed Product Description
Product Name: FAP-16W-3 Fiber Access Terminal Closure Free Sample: Support
MOQ: 1 Piece Material: Modified P.P+GF; Tray: ABS
Port: 2 Inlets And 2 Outlets Size: 359*277*120mm
Color: Black Colorful Logo: YES
OEM: YES Tray Capacity: 2*24
High Light:

Fast Connector Splitter Distribution Box

,

Outdoor Splitter Distribution Box

,

Splitter Distribution Box 16 Core

Fast Connector Exit Optic Splice Nap Closure , Outdoor Splitter Distribution Box 16 Core



Junpu FAP-16W-2



Decsripttion:



     JP-FAP-16W-3  is used to splice cable with max. 12.5mm dia.and allow 16 pcs drop cable with fast

     connector exit. Adopt engineering plastic in scientific formula with excellent mechanical strength,

     can prevent aging  effectively caused  by cold, hot, oxygen, UV etc. Can splice and connect the optic fibers

     in aerial, pole or wall mounting environment. Reliable sealing performance, convenient for repeated use.



Features:



    1. Working Temperature: -40 degrees centigrade~+70 degrees centigrade
    2. Atmospheric Pressure: 70~150Kpa
    3. Axial Tension: >2000N/1min
    4. Stretching Resistance: 2500N/10 square centimetre(1min)
    5. Insulation resistance: >2*104MΩ
    6. Voltage Strength: 15KV/1min, no arcover or breakdown
    7. Pressure in the water: 50m/72hours
   8. Splice tray with optical taking-in radius: 30mm. Low optical loss.




Application:



    It can be installed in aerial locations, ducted applications, direct buried, manholes.
     Small volume but large capacity.

Details:

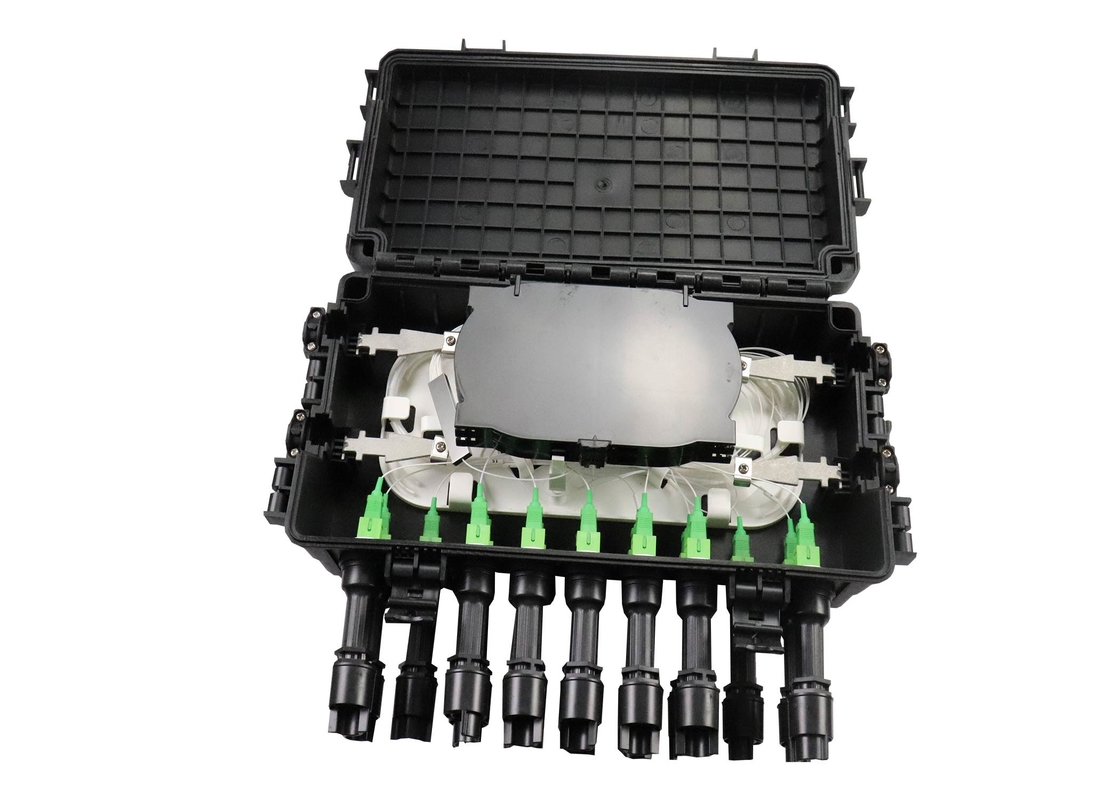

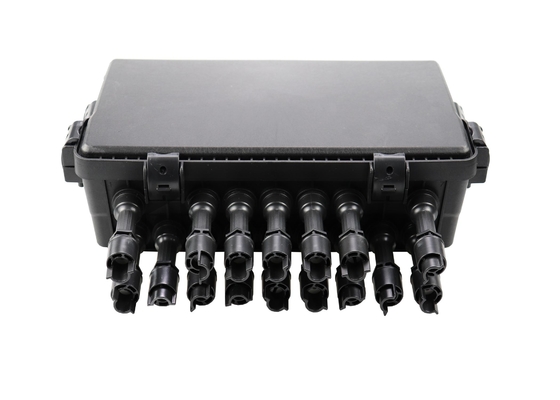

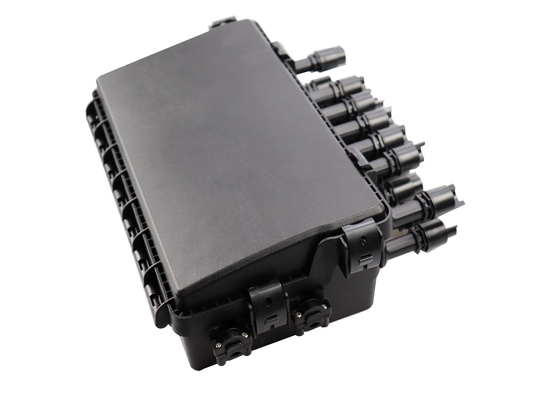

Fast Connector Outdoor Splitter Distribution Box 16 Core 0                                                                         Fast Connector Outdoor Splitter Distribution Box 16 Core 1Fast Connector Outdoor Splitter Distribution Box 16 Core 2



Specification:

Model Dia.(mm) Biggest Point Max Capacity No. Of Ports Available Splitter Max. Adapter Number
CFO-16S-NAP 359*277*120 48 fibers 24F/Tray 2pcs round on both side: for 8-12mm 16pcs fast connector ports for drop cable 1pc 1*16 or 2pcs 1*8 Mini PLC Splitter 16



Package:

Packing Nunber(pcs)
Outer Box Size(mm)
Weight(kg)
8 540*630*425 1.8-2.5







FAQ:


Q1: Are you a factory?
A: Yes, we are a factory.

Q2: what's your products' quality control?
1.Control the raw material,manpower allocation,working environments,equipment etc.
2.Improve the working standard ,cooperation ,training of workers etc.


Q3: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our products.

Q4: Could you offer the OEM service?
A: Yes, we can provide OEM service, manufacture as per your request.

Q5. May I take a sample order
A: Yes, free sample are available and MOQ is 1 piece.


Q6. What about the lead time?
A:Sample takes 3 days, mass production time takes 7-15 days for bulk order.

Q7. What about the shippment ?
A: International Express - DHL, UPS, FedEx or TNT.
Airline.
Sea/Marine shipping.

Junpu Fiber Optic Distribution Box Series
Fast Connector Outdoor Splitter Distribution Box 16 Core 3

We sincerely invite you to send us inquiry for further details.
Junpu Cares About Every Single Details Of The Product For You !
