Dome Heat Shrinkable Seal Fiber Optic Splice Closure 6x Splice Tray 288 Core

Dome Heat Shrinkable Seal Fiber Optic Splice Closure 6x Splice Tray 288 Core
Dome Heat Shrinkable Seal Fiber Optic Splice Closure 6x Splice Tray 288 Core Dome Heat Shrinkable Seal Fiber Optic Splice Closure 6x Splice Tray 288 Core Dome Heat Shrinkable Seal Fiber Optic Splice Closure 6x Splice Tray 288 Core Dome Heat Shrinkable Seal Fiber Optic Splice Closure 6x Splice Tray 288 Core

Large Image :  Dome Heat Shrinkable Seal Fiber Optic Splice Closure 6x Splice Tray 288 Core

Product Details:
Place of Origin: China
Brand Name: JUNPU
Certification: ROHS, CE, CCC
Model Number: JP-288SC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Standard Strong Carton Box
Delivery Time: 1 ~ 10 Working days based on the quantity
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Supply Ability: 10000 Pieces Per Month
Detailed Product Description
Product Name: 288 Core Fiber Optic Enclosures , Fiber Optic Cable Junction Box Free Sample: Support
MOQ: 1 Piece Material: Modified Polymer Plastic
Color: Black Colorful Logo: YES
OEM: YES Max Capacity: Splice 288 Fibers
High Light:

288 Core Fiber Optic Splice Closure

,

Shrinkable Seal Fiber Optic Splice Closure

,

Dome Fiber Optic Splice Closure

288FO Dome Heat Shrinkable Seal Fiber Optic Splice Closure 6x Splice Tray



48 Core Fiber Optic Enclosures , Fiber Optic Cable Junction Box


Decsripttion

  • This splice closure integrates distribution and splitting in one, can realize the direct fusion and branching of the optical cable, and is suitable for the wiring connection in the optical communication equipment. Through the adapter and jumper to bring in the signal to realize optical distribution function, it is also suitable for fiber optic cables and pigtail protective connection; the unique three-tier design of the box body can be used as a fiber splitter or splice box; the flip board can be flipped≥180°,it is more convenient to install the box or maintenance. If remove the board, it can bed as a splice closure to meet different choices.


Features:

  • Optical fiber radius of curvature: ≥40mm
  • Splice tray additional loss: ≤0.1dB
  • Temperature range: -40°C ~ +60°C
  • Anti side pressure: ≥2000N/10cm
  • Impact resistance: ≥20N.m
  • Protection class: IP65
Outside dimension (Height x Diameter) 490mm×220mm
Weight (excluding outside box) 3000 g— 3600g
Number of inlet/out ports 6 pieces in general (max. 6 pieces)
Diameter of fiber cable Φ8mm~Φ36mm
Capacity of FOSC Bunchy: 48-288 (cores), Ribbon: up to 864 (cores)

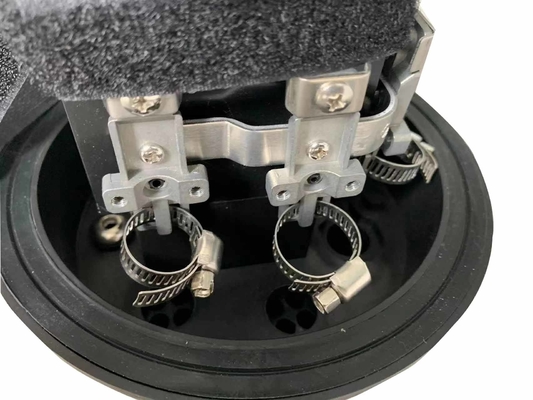

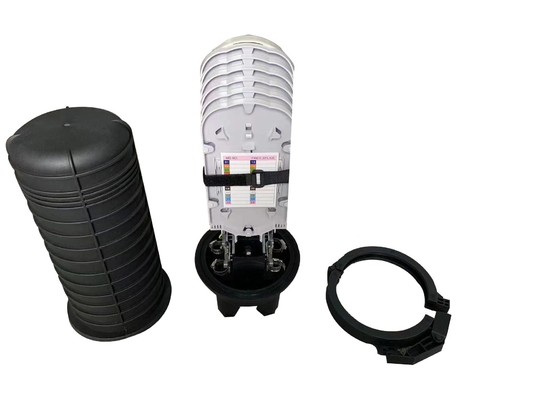

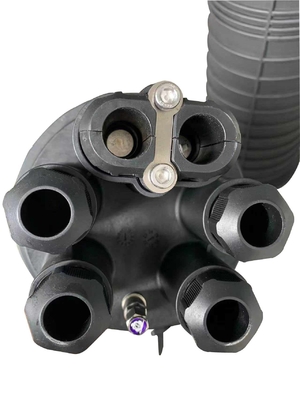

Details:
Dome Heat Shrinkable Seal Fiber Optic Splice Closure 6x Splice Tray 288 Core 0

Dome Heat Shrinkable Seal Fiber Optic Splice Closure 6x Splice Tray 288 Core 1



FAQ:

Q1: Are you a factory?
A: Yes, we are a factory.

Q2: what's your products' quality control?
1.Control the raw material,manpower allocation,working environments,equipment etc.
2.Improve the working standard ,cooperation ,training of workers etc.


Q3: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our products.

Q4: Could you offer the OEM service?
A: Yes, we can provide OEM service, manufacture as per your request.

Q5. May I take a sample order
A: Yes, free sample are available and MOQ is 1 piece.


Q6. What about the lead time?
A:Sample takes 3 days, mass production time takes 7-15 days for bulk order.

Q7. What about the shippment ?
A: International Express - DHL, UPS, FedEx or TNT.
Airline.
Sea/Marine shipping.

Junpu Fiber Optic Distribution Box Series
Dome Heat Shrinkable Seal Fiber Optic Splice Closure 6x Splice Tray 288 Core 2

We sincerely invite you to send us inquiry for further details.
Junpu Cares About Every Single Details Of The Product For You !
