Name: Single Mode Fiber Optic Cable, 1X16 Cassette pLC fiber splitter
Brand: JUNPU
SKU: splitter apc 1x8
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (114 reviews)

Product Details

Place of Origin: China

Brand Name: JUNPU

Certification: ROHS, CE, CCC

Model Number: splitter apc 1x8

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: Negotiation

Packaging Details: Standard Strong Carton Box

Delivery Time: 1 ~ 10 Working days based on quantity

Payment Terms: T/T, Western Union, Credit Card Via Alibaba

Get Best Price

Product Details

Product Description

Highlight:

Connector Type:	SC,FC,LC,ST	Ferrule End-face:	PC, UPC,APC
Fiber Type:	G652D G657A1 G657A2	Fiber Mode:	Singlmode
Package:	Steel Tube, ABS	Structure:	1X16
Product Name:	Fiber Optic Splitter Apc 1x16

Connector Type:	SC,FC,LC,ST
Ferrule End-face:	PC, UPC,APC
Fiber Type:	G652D G657A1 G657A2
Fiber Mode:	Singlmode
Package:	Steel Tube, ABS
Structure:	1X16
Product Name:	Fiber Optic Splitter Apc 1x16

Single Mode Fiber Optic Cable, 1X16 Cassette pLC fiber splitter

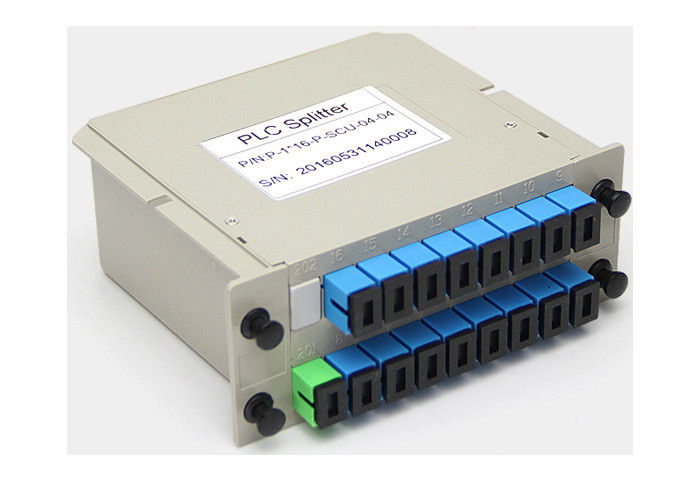

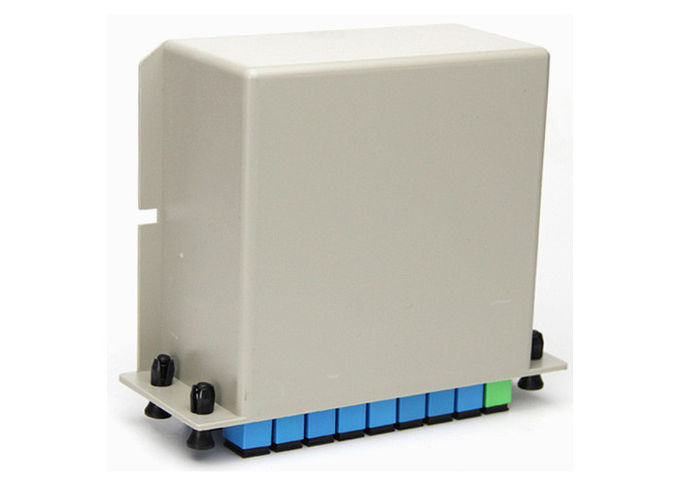

Junpu Single Mode Fiber Optic Cable, 1X16 Cassette PLC Fiber Splitter

Feature:

Adopt high strength stainless steel, pass salt spray test
Ferrule core is less than 0.5um
Adopt 100% new raw material, ROHS compliance
Low Insertion loss
Low PDL Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: from 1260nm to 1650nm
Wide Operating Temperature: from -40℃ to 85℃

Description:

Optical fiber splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.
It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.

Application:

Fiber to the point (FTTX)
Fiber to the home (FTTH)
Passive optical networks(PON, GEPON)
Local area networks (LAN)
Cable television (CATV)
Test equipment

Specification:

Table 1 – 1×N PLC Fiber Splitter

Parameters	1×2	1×4	1×8	1×16	1×32	1×64
Operating Wavelength (nm)	1260～1650
Fiber Type	G657A or customer specified
Insertion Loss (dB)(P/S Grade)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.0
Return Loss (dB) (P/S Grade)	55/50	55/50	55/50	55/50	55/50	55/50
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability(-40～85 ℃)(dB)	0.4	0.4	0.4	0.5	0.5	0.5
Operating Temperature (℃)	-40～85
Storage Temperature (℃)	-40～85
Package	Steel Tube or ABS

Table 2 – 2×N PLC Fiber Splitter

Parameters	2×2	2×4	2×8	2×16	2×32	2×64
Operating Wavelength (nm)	1260～1650
Fiber Type	G657A or customer specified
Insertion Loss (dB)	4.0	7.6	11.0	14.4	17.5	21.0
Loss Uniformity (dB)	0.6	1.0	1.2	1.5	1.8	2.2
Return Loss (dB) (P/S Grade)	55/50	55/50	55/50	55/50	55/50	55/50
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.3	0.4	0.4
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.4	0.5	0.5	0.5	0.5
Temperature Stability(-40～85 ℃)(dB)	0.4	0.4	0.4	0.5	0.5	0.5
Operating Temperature (℃)	-40～85
Storage Temperature (℃)	-40～85
Package	Steel Tube or ABS
