Product Details
Place of Origin: China
Brand Name: JUNPU
Certification: ROHS, CE, CCC
Model Number: 1x8 Box Fiber Optic Plc Splitter, Splitter For Fiber Optic Cable
Payment & Shipping Terms
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Standard Strong Carton Box
Delivery Time: 1 ~ 10 Working days based on quantity
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Connector Type: |
SC,FC,LC,ST |
Ferrule End-face: |
PC, UPC,APC |
Fiber Type: |
G652D G657A1 G657A2 |
Fiber Mode: |
Singlmode |
Package: |
Steel Tube, ABS |
Structure: |
1X8 |
Product Name: |
1x8 Single Mode Plc Fiber Optic Splitter |
Optical Splitter Core: |
Corning Core |
PLC Splitter In Tension: |
>=100N |
Connector Type: |
SC,FC,LC,ST |
Ferrule End-face: |
PC, UPC,APC |
Fiber Type: |
G652D G657A1 G657A2 |
Fiber Mode: |
Singlmode |
Package: |
Steel Tube, ABS |
Structure: |
1X8 |
Product Name: |
1x8 Single Mode Plc Fiber Optic Splitter |
Optical Splitter Core: |
Corning Core |
PLC Splitter In Tension: |
>=100N |

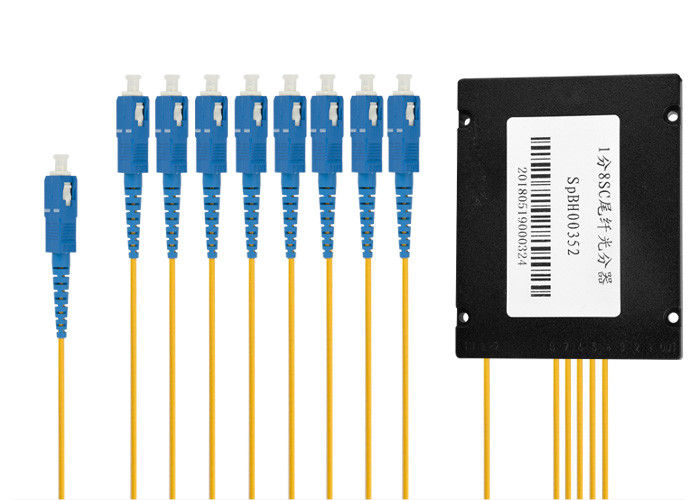

1x8 Box Plc Fiber Optic Splitter, Single Mode Fiber Optic Cable G657A1
Description:
Feature:
Application:
| Product Name | 1x8 Single Mode Plc Fiber Optic Splitter For Catv With SC APC Adapter |
| Operating wavelength | 1260 ~ 1650nm |
| Connector Type | SC APC, SC, LC, FC, ST |
Specification:
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| Operating Wavelength (nm) | 1260～1650 | |||||
| Fiber Type | G657A or customer specified | |||||
| Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 |
| Return Loss (dB) (P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Polarization Dependent loss | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| Temperature Stability(-40～85 ℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (℃) | -40～85 | |||||
| Storage Temperature (℃) | -40～85 | |||||
| Package | Steel Tube or ABS | |||||
