1x8 SC APC Single Mode Fiber Optic Cable box, 1X8 SC UPC plc splitter box

Product Details

Place of Origin: China

Brand Name: JUNPU

Certification: ROHS, CE, CCC

Model Number: fiber 1x16 plc splitter

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: Negotiation

Packaging Details: Standard Strong Carton Box

Delivery Time: 1 ~ 10 Working days based on quantity

Payment Terms: T/T, Western Union, Credit Card Via Alibaba

Get Best Price
Highlight:
Connector Type:
SC,FC,LC,ST
Ferrule End-face:
PC, UPC,APC
Fiber Type:
G652D G657A1 G657A2
Fiber Mode:
Singlmode
Package:
Steel Tube, ABS
Structure:
1X16
Product Name:
Fiber 1x16 Plc Splitter
Optical Splitter Core:
Corning Core
PLC Splitter In Tension:
>=100N
Connector Type:
SC,FC,LC,ST
Ferrule End-face:
PC, UPC,APC
Fiber Type:
G652D G657A1 G657A2
Fiber Mode:
Singlmode
Package:
Steel Tube, ABS
Structure:
1X16
Product Name:
Fiber 1x16 Plc Splitter
Optical Splitter Core:
Corning Core
PLC Splitter In Tension:
>=100N

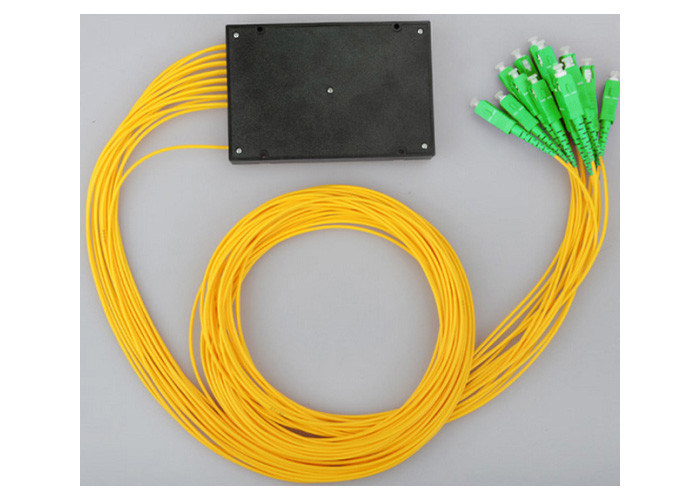

1x8 SC APC Single Mode Fiber Optic Cable box, 1X8 SC UPC plc splitter box

Junpu 1x8 SC APC Single Mode Fiber Optic Cable Box, 1X8 SC UPC Plc Splitter Box

Description:

  • An optical fiber splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.
  • It features a small size, high reliability, wide operating wavelength range, and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.



Feature:

  • Adopt high-strength stainless steel, pass the salt spray test
  • Ferrule core is less than 0.5um
  • Adopt 100% new raw material, ROHS compliance
  • Low Insertion loss
  • Low PDL Compact Design
  • Good channel-to-channel uniformity
  • Wide Operating Wavelength: from 1260nm to 1650nm
  • Wide Operating Temperature: from -40℃ to 85℃



Application:



  • FTTX Systems
  • PON Networks
  • CATV Links
Product Name SC APC Fiber 1x16 PLC Splitter Singlmode
Operating wavelength 1260 ~ 1650nm
Connector Type SC APC, SC, LC, FC, ST



Specification:

Parameters 1×2 1×4 1×8 1×16 1×32 1×64
Operating Wavelength (nm) 1260~1650
Fiber Type G657A or customer specified
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.9 20.5/21.0
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2.0
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Polarization Dependent loss 0.2 0.2 0.2 0.25 0.3 0.35
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss 0.3 0.3 0.3 0.5 0.5 0.5
Temperature Stability(-40~85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40~85
Storage Temperature (℃) -40~85
Package Steel Tube or ABS

 1x8 SC APC Single Mode Fiber Optic Cable box, 1X8 SC UPC plc splitter box 01x8 SC APC Single Mode Fiber Optic Cable box, 1X8 SC UPC plc splitter box 11x8 SC APC Single Mode Fiber Optic Cable box, 1X8 SC UPC plc splitter box 2



We sincerely invite you to send us an inquiry for further details.

Junpu Cares About Every Single Details Of The Product For You!
