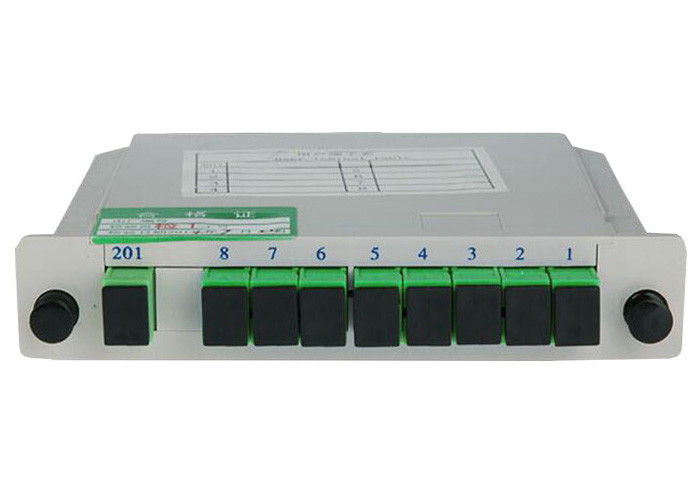

SC APC 1x8 Optical Fiber Splitter, cassette plc fiber optic splitter fTTH

Product Details

Place of Origin: China

Brand Name: JUNPU

Certification: ROHS, CE, CCC

Model Number: splitter 1x8 sc upc

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: Negotiation

Packaging Details: Standard Strong Carton Box

Delivery Time: 1 ~ 10 Working days based on quantity

Payment Terms: T/T, Western Union, Credit Card Via Alibaba

Get Best Price
Highlight:
Connector Type:
SC,FC,LC,ST
Ferrule End-face:
PC, UPC,APC
Fiber Type:
G652D G657A1 G657A2
Fiber Mode:
Singlmode
Package:
Steel Tube, ABS
Structure:
1X8
Product Name:
Fiber Optic Splitter 1x8
Connector Type:
SC,FC,LC,ST
Ferrule End-face:
PC, UPC,APC
Fiber Type:
G652D G657A1 G657A2
Fiber Mode:
Singlmode
Package:
Steel Tube, ABS
Structure:
1X8
Product Name:
Fiber Optic Splitter 1x8
SC APC 1x8 Optical Fiber Splitter, cassette plc fiber optic splitter fTTH

Junpu SC APC 1x8 Optical Fiber Splitter, Cassette Plc Fiber Optic Splitter FTTH

Description:

  • An optical fiber splitter is an optical power management device fabricated using silica optical waveguide technology.
  • It features a small size, high reliability, wide operating wavelength range, and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.



Feature:

  • Adopt high-strength stainless steel, pass the salt spray test
  • Ferrule core is less than 0.5um
  • Adopt 100% new raw material, ROHS compliance
  • Low Insertion loss
  • Low PDL Compact Design
  • Good channel-to-channel uniformity
  • Wide Operating Wavelength: from 1260nm to 1650nm
  • Wide Operating Temperature: from -40℃ to 85℃



Application:

  • Fiber to the point (FTTX)
  • Fiber to the home (FTTH)
  • Passive optical networks(PON, GEPON)
  • Local area networks (LAN)
  • Cable television (CATV)
  • Test equipment



Specification:


Table 1 – 1×N PLC Fiber Splitter

Parameters 1×2 1×4 1×8 1×16 1×32 1×64
Operating Wavelength (nm) 1260~1650
Fiber Type G657A or customer specified
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.9 20.5/21.0
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2.0
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temperature Stability(-40~85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40~85
Storage Temperature (℃) -40~85
Package Steel Tube or ABS



Table 2 – 2×N PLC Fiber Splitter

Parameters 2×2 2×4 2×8 2×16 2×32 2×64
Operating Wavelength (nm) 1260~1650
Fiber Type G657A or customer specified
Insertion Loss (dB) 4.0 7.6 11.0 14.4 17.5 21.0
Loss Uniformity (dB) 0.6 1.0 1.2 1.5 1.8 2.2
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Polarization Dependent Loss(dB) 0.2 0.2 0.3 0.3 0.4 0.4
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.4 0.5 0.5 0.5 0.5
Temperature Stability(-40~85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40~85
Storage Temperature (℃) -40~85
Package Steel Tube or ABS

Notes:

  1. Specified without connectors.
  2. Add an additional 0.15dB loss per connector

 SC APC 1x8 Optical Fiber Splitter, cassette plc fiber optic splitter fTTH 0SC APC 1x8 Optical Fiber Splitter, cassette plc fiber optic splitter fTTH 1SC APC 1x8 Optical Fiber Splitter, cassette plc fiber optic splitter fTTH 2SC APC 1x8 Optical Fiber Splitter, cassette plc fiber optic splitter fTTH 3SC APC 1x8 Optical Fiber Splitter, cassette plc fiber optic splitter fTTH 4
