Product Details
Place of Origin: China
Brand Name: JUNPU
Certification: ROHS CE CCC
Model Number: JP-I2-16OTE
Payment & Shipping Terms
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Strong Cartons Box
Delivery Time: 1 ~ 10 working days
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Supply Ability: 10000 Pieces Per Month
Product Name: |
Fiber Optic Terminal Distribution Box 16 Core |
Mode: |
Wall Mounted. Holding Pole |
Free Sample: |
Support |
Size: |
320*265*120mm |
Connector: |
SC, LC |
Material: |
PC, ABS |
Port: |
2 In, 16 Out |
Application: |
Indoor Or Outdoor |
Color: |
Light Blue |
PLC Splitter: |
Mini Steel Tube,Cassette |
Colorful Logo: |
Support |
OEM: |
YES |
Product Name: |
Fiber Optic Terminal Distribution Box 16 Core |
Mode: |
Wall Mounted. Holding Pole |
Free Sample: |
Support |
Size: |
320*265*120mm |
Connector: |
SC, LC |
Material: |
PC, ABS |
Port: |
2 In, 16 Out |
Application: |
Indoor Or Outdoor |
Color: |
Light Blue |
PLC Splitter: |
Mini Steel Tube,Cassette |
Colorful Logo: |
Support |
OEM: |
YES |
China Factory FTTH 16 Core Fiber Optic Cable Fiber Distribution Termination Box
Products Description:
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Specification:
| Material | PC+ABS |
| Protection Level | IP65 |
| Suitable Adapters | SC, LC |
| Monting type | Pole/Wall |
| Cable inlet | 2 Ports |
| Fiber outlet | 16 Ports |
| Max Fiber capacity | 16 Cores |
| Applications | FTTH,FTTB,CATV |
| Max Capacity |
16pcs sc adapter: 2pcs 1x8 or 1pcs 1x16 or 1pcs plug-in PLC splitter |
| MOQ | 1pcs |
JP-I2-16OB fiber access termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution,storage and cable connection in one solid protection box
Features:
Total enclosed structure.
Material: PC,wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP65.
Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution... etc all in one.
Cable,pigtails,patch cords are running through own path without disturbing each other, cassette type SC/LC/PLC adaptor installation, easy maintenance.
Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
Installation:
1.Wall-mounted
According to the size of hanging wall with percussion drill play two holes on the wall, knock into the metal tube, will be installed back the case according to the punching position on the wall, and completely fixed screw.
2.Pole-mounted
Fix 1 set of the easy pole ring to the telecom pole .
3.Aerial-mounted
One is fixed on the pole, the cable connector box parallel to the pole; The other is fixed on the cable, the cable connector box parallel to the cable

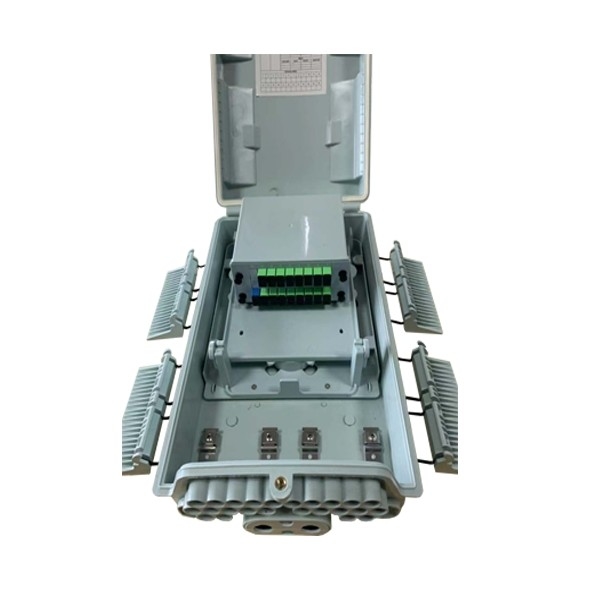

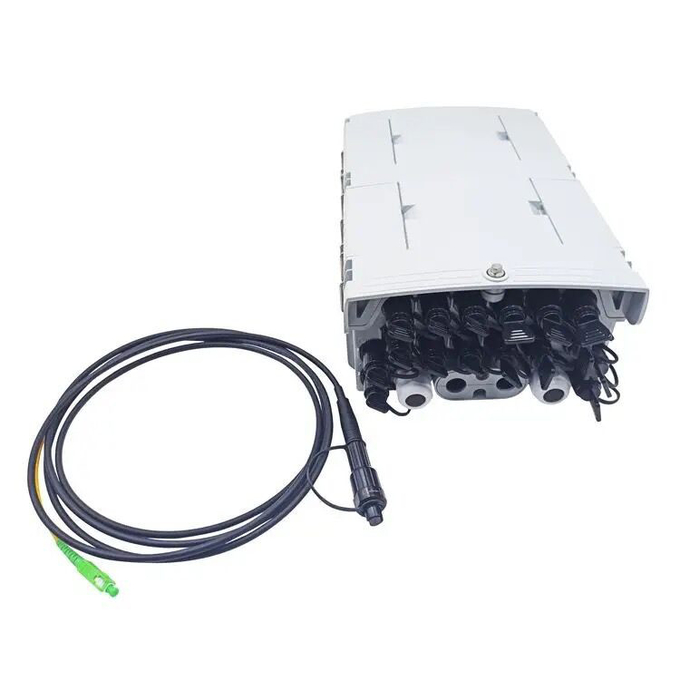

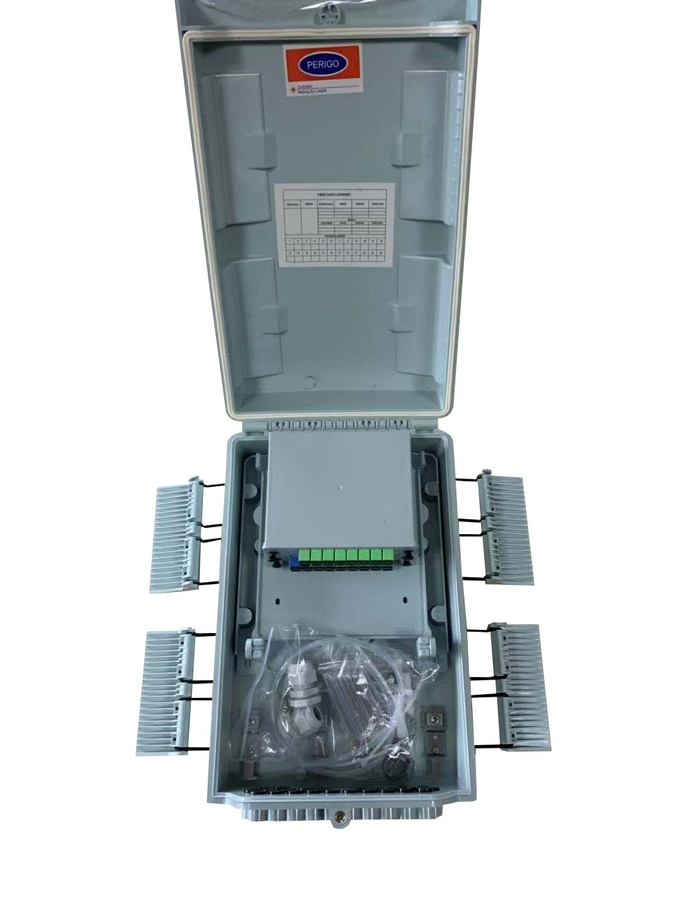

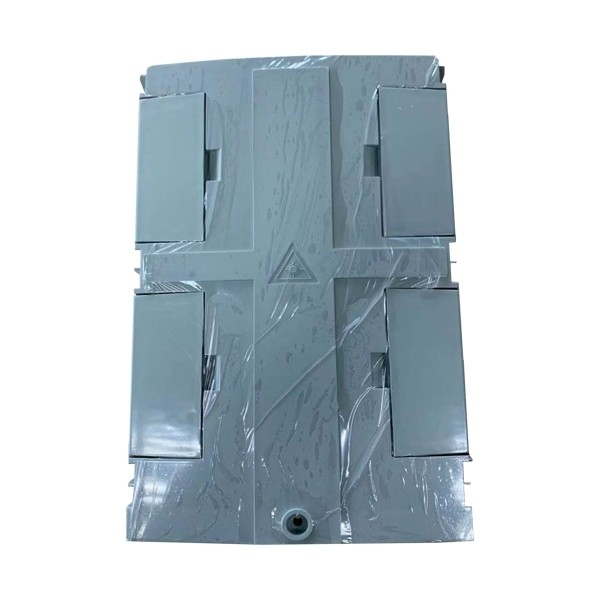

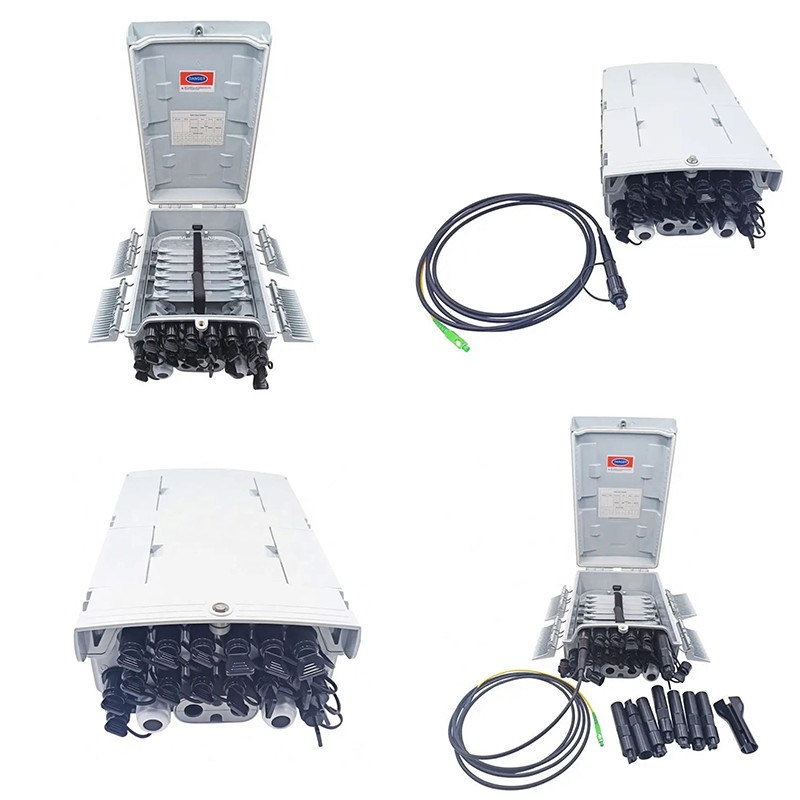

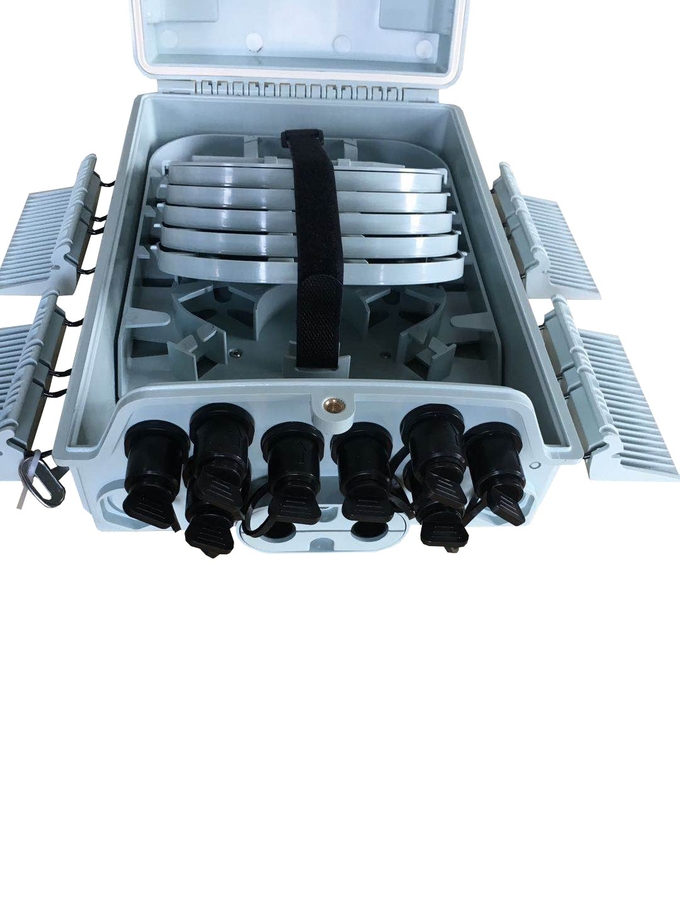

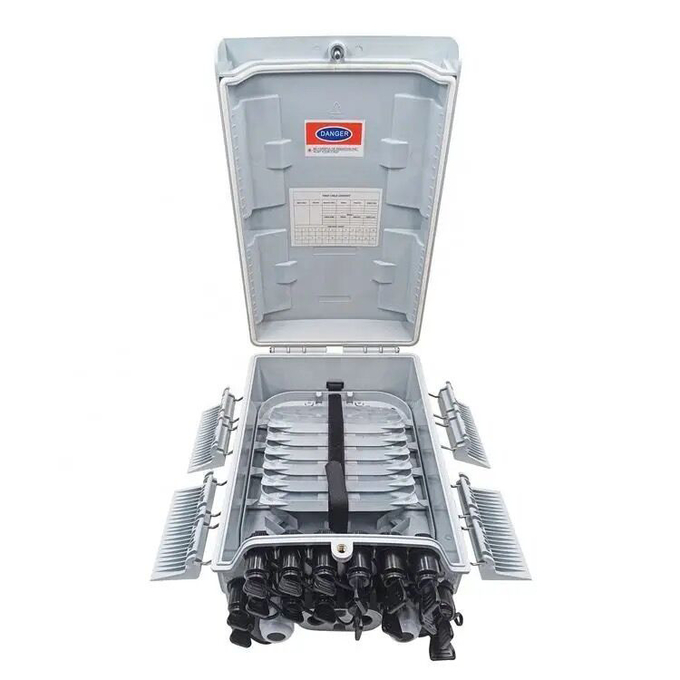

Detailed Images
FAQ:
Q1: Are you a factory?
A: Yes, we are a factory.
Q2: what's your products' quality control?
1. Control the raw material, manpower allocation, working environments, equipment, etc.
2. Improve the working standard, cooperation, training of workers, etc.
Q3: Do you offer a guarantee for the products?
A: Yes, our products offer 1-2 years warranty.
Q4: Could you offer the OEM service?
A: Yes, we can provide OEM service, and manufacture as you requested.
Q5. May I take a sample order
A: Yes, free samples are available and MOQ is 1 piece.
Q6. What about the lead time?
A: Sample takes 3 days, mass production time takes 7-15 days for bulk order.
Q7. What about the shipment?
A: International Express - DHL, UPS, FedEx, or TNT.
Airline.
Sea/Marine shipping.
