FTTH Fiber Optic Drop Cable 96 Core Fiber Optic Splice Black Closure Joint Box PP+GF

Product Details

Place of Origin: China

Brand Name: JUNPU

Certification: ROHS, CE, CCC

Model Number: Fiber Optic Splice Closure

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: Negotiation

Packaging Details: Standard Strong Carton Box

Delivery Time: 1 ~ 10 Working days based on the quantity

Payment Terms: T/T, Western Union, Credit Card Via Alibaba

Supply Ability: 10000 Pieces Per Month

Get Best Price
Highlight:
Product Name:
96 Core Fiber Optic Closure Splice Box
Free Sample:
Support
MOQ:
1 Piece
Material:
Modified Polymer Plastic
Port:
2 In, 96 Out
Size:
285*175*110mm
Color:
Black
Colorful Logo:
YES
OEM:
YES
Max Capacity:
Splice 96 Fibers
Product Name:
96 Core Fiber Optic Closure Splice Box
Free Sample:
Support
MOQ:
1 Piece
Material:
Modified Polymer Plastic
Port:
2 In, 96 Out
Size:
285*175*110mm
Color:
Black
Colorful Logo:
YES
OEM:
YES
Max Capacity:
Splice 96 Fibers
FTTH Fiber Optic Drop Cable 96 Core Fiber Optic Splice Black Closure Joint Box PP+GF

FTTH Fiber Optic Drop Cable 96 Core Fiber Optic Splice Black Closure Joint Box PP+GF


Decsripttion



The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

FTTH Fiber Optic Drop Cable 96 Core Fiber Optic Splice Black Closure Joint Box  PP+GF 0
The 96 Port Fiber Optic Splice Closure with Fast Connector Exit has been designed for easy and security-focused installation. Formulated with a science-backed plastic engineering, it provides superior mechanical strength to age deterioration from cold weather, heat exposure, oxygenation or UV light radiation. The closure also features flame retardant capability alongside watertightness and anti vibration properties that guarantee the protection of any cable joint against tensioning, impacts, bending contortions or axial compression forces – all parts having passed viscosity and white ant resistance tests!



Features:

Dis-mountable adaptor panel

Support midspan termination

Easy operation and installation

Rotatable and dis-mountable splice tray for easy slicing



Specification:

Material PP+GF
Protection Level IP68
Suitable Adapters SC, LC
Color Black
Monting type Wall/Pole/Aerial
Cable inlet 2 Ports
Fiber outlet 96 Ports
Max Fiber capacity 96 Cores
Applications FTTH,FTTB
Max Capacity

96 F(Bunchy),96 sc adapter

MOQ 1pcs



Installation:

1.Wall-mounted

According to the size of hanging wall with percussion drill play two holes on the wall, knock into the metal tube, will be installed back the case according to the punching position on the wall, and completely fixed screw.

2.Pole-mounted

Fix 1 set of the easy pole ring to the telecom pole .

3.Aerial-mounted

One is fixed on the pole, the cable connector box parallel to the pole; The other is fixed on the cable, the cable connector box parallel to the cable.

FTTH Fiber Optic Drop Cable 96 Core Fiber Optic Splice Black Closure Joint Box  PP+GF 1

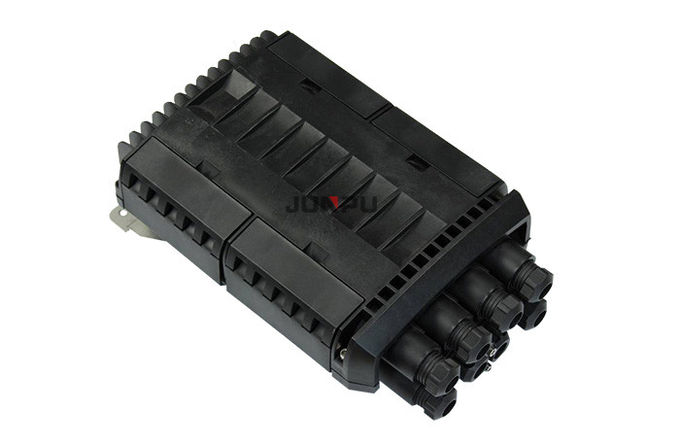

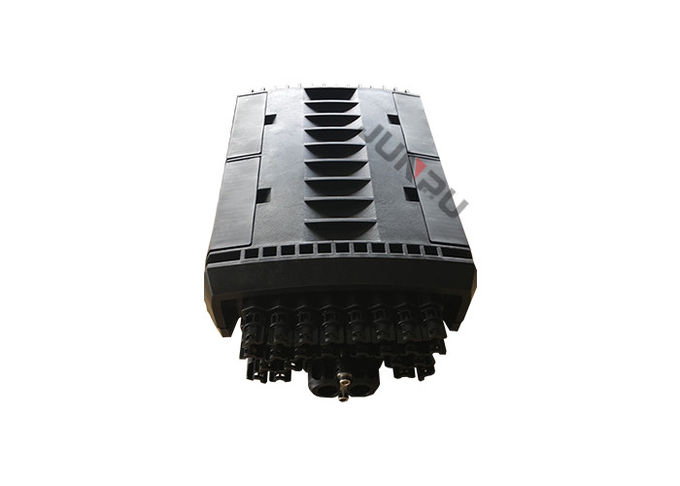

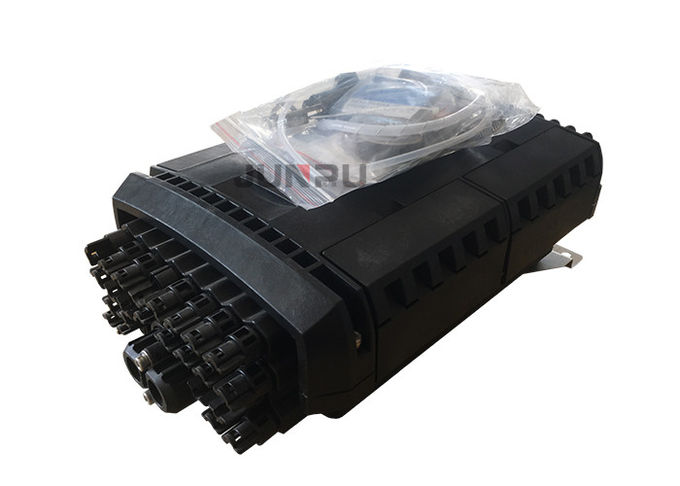

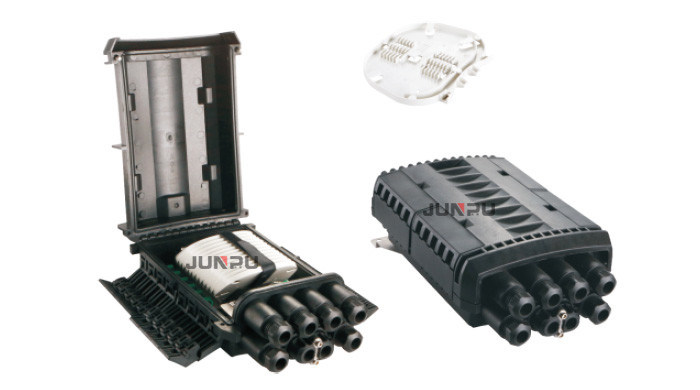

Detailed Images:
FTTH Fiber Optic Drop Cable 96 Core Fiber Optic Splice Black Closure Joint Box  PP+GF 2FTTH Fiber Optic Drop Cable 96 Core Fiber Optic Splice Black Closure Joint Box  PP+GF 3FTTH Fiber Optic Drop Cable 96 Core Fiber Optic Splice Black Closure Joint Box  PP+GF 4FTTH Fiber Optic Drop Cable 96 Core Fiber Optic Splice Black Closure Joint Box  PP+GF 5
