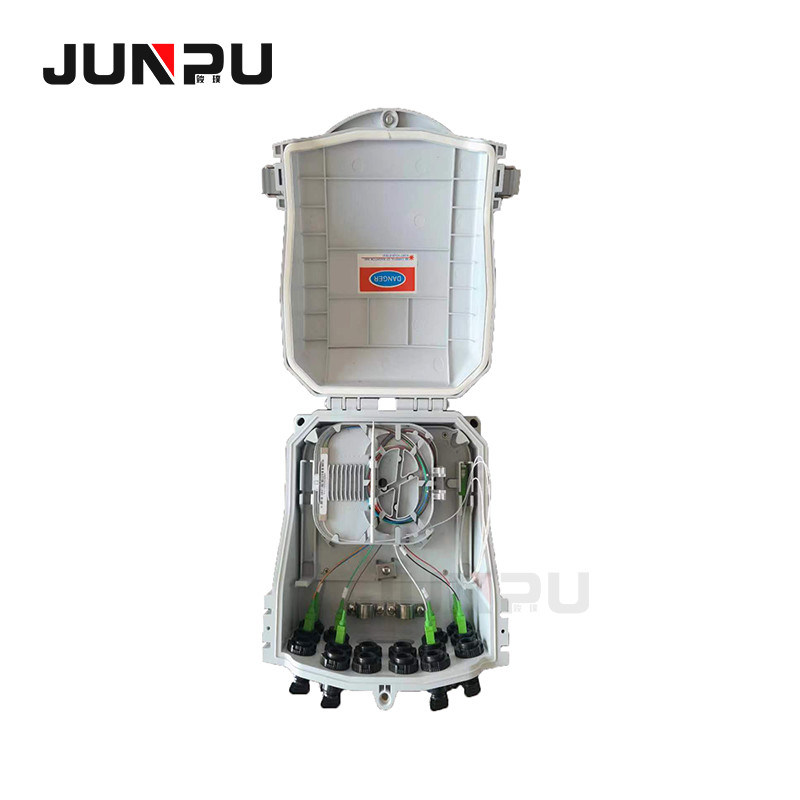

Factory Price Wall-mounted Optical Fiber Junction Box 8 Core Full Equipped

Factory Price Wall-Mounted Optical Fiber Junction Box 8 Core Full Equipped

Description:

The equipment is used as a termination point for the feeder cable to connect with the drop cable in the FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile, it provides solid protection and management for the FTTx network building.

Fiber termination box is universally used in telephone, agricultural telephone network systems, data, and image transmission systems, CATV cable television series, indoor cable through force access, and branch connection. A fiber termination box is available for the distribution and termination connection for various kinds of fiber optic systems, especially suitable for mini-network terminal distribution, in which optical cables, patch cores, or pigtails are connected. In addition to that, a fiber termination box can be applied to joint fiber pigtails, protect fiber optic splices and share out the connectivity with individual customers.

Features:

• Total enclosed structure.
• Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP65.
• Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
• Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, is easy maintenance.
• The distribution panel can be flipped up, feeder cable can be placed by the expression port, easy for maintenance and installation.
• Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.

Application:

1. Optical LAN & WAN & CATV

2. FTTH project & FTTX Deployments

3. Broadband High-bit rate data transmission

4. Active device terminations

5. Testing instruments

6. Optical fiber communication networks

7. PON Networks

8. Optical Signal Distribution

Specification:

1,Environmental requirement

Working temperature:-40℃～+85℃

Relative humidity:≤85%(+30℃)

Atmospheric pressure:70KPa～106Kpa

2,Main technical datasheet

Insertion loss:≤0.15dB

UPC return loss:≥50dB

APC return loss:≥60dB

3,Thunder-proof technical datasheet insulation resistance between the grounding device and the metal parts of the box is no less than 2x10⁴MΩ/500V(DC)； IR≥2MΩ/500V. The voltage resistance between the grounding device, and the box and its metal parts is no less than 3000V(DC)/min, no puncture, no flashover； U≥3000V

Product Configuration:

Accessories:

1. Users' Manual*1

2. Key*1

3. Accessories Bag * 1

4.Pole Ring*1(Option)

More Picture:

FAQ:

Q1: Are you a factory?
A: Yes, we are a factory.

Q2: what's your products' quality control?
1. Control the raw material, manpower allocation, working environments, equipment, etc.
2. Improve the working standard, cooperation, training of workers, etc.

Q3: Do you offer a guarantee for the products?
A: Yes, our products offer 1-2 years warranty.

Q4: Could you offer the OEM service?
A: Yes, we can provide OEM service, and manufacture as requested.

Q5. May I take a sample order
A: Yes, free samples are available and MOQ is 1 piece.

Q6. What about the lead time?
A: Sample takes 3 days, mass production time takes 7-15 days for bulk order.

Q7. What about the shipment?
A: International Express - DHL, UPS, FedEx, or TNT.
Airline.
Sea/Marine shipping.
