Product Details
Place of Origin: China
Brand Name: JUNPU
Certification: ROHS CE CCC
Model Number: JP-I2-12OB
Payment & Shipping Terms
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Strong Cartons Box
Delivery Time: 1 ~ 10 working days
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Supply Ability: 10000 Pieces Per Month
Product Name: |
12 Core Outdoor Optical Distribution Box |
Mode: |
Wall Mounted/Pole |
Free Sample: |
Support |
Size: |
295*220*85mm |
Connector: |
SC, LC |
Material: |
PC, ABS |
Port: |
1in, 12ut |
Application: |
Indoor Or Outdoor |
Color: |
Black, White |
PLC Splitter: |
Cassette Type, Mini Steel Tube |
Colorful Logo: |
Support |
OEM: |
YES |
Product Name: |
12 Core Outdoor Optical Distribution Box |
Mode: |
Wall Mounted/Pole |
Free Sample: |
Support |
Size: |
295*220*85mm |
Connector: |
SC, LC |
Material: |
PC, ABS |
Port: |
1in, 12ut |
Application: |
Indoor Or Outdoor |
Color: |
Black, White |
PLC Splitter: |
Cassette Type, Mini Steel Tube |
Colorful Logo: |
Support |
OEM: |
YES |

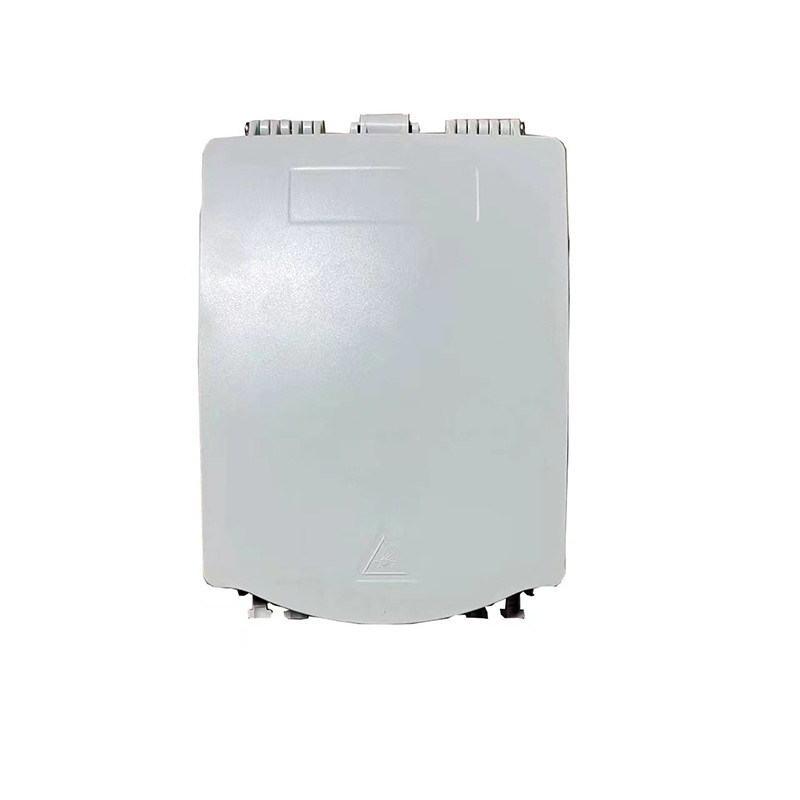

New Product Wall-Mounted Optical Fiber Junction Box 12 Core Full Equipped
Description:
The equipment is used as a termination point for the feeder cable to connect with the drop cable in the FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile, it provides solid protection and management for the FTTx network building.
Fiber termination box is universally used in telephone, agricultural telephone network systems, data, and image transmission systems, CATV cable television series, indoor cable through force access, and branch connection. A fiber termination box is available for the distribution and termination connection for various fiber optic systems, especially for mini-network terminal distribution, in which optical cables, patch cores, or pigtails are connected. In addition to that, a fiber termination box can be applied to joint fiber pigtails, protect fiber optic splices and share out the connectivity with individual customers.
Features:
Application:
1. Optical LAN & WAN & CATV
2. FTTH project & FTTX Deployments
3. Broadband High-bit rate data transmission
4. Active device terminations
5. Testing instruments
6. Optical fiber communication networks
7. PON Networks
8. Optical Signal Distribution
Specification:
| Item | Specifications | Remark |
| External dimension(mm) | 151.8*105.7*59 | |
| Installation hole position(mm) | 141 | |
| Color | PANTONE 428C | Customizable |
| Size and quantity of optical cable hole | Optical cable straight through without cutting | |
| Input type/type of output | SC adapter | |
| Capacity(Max) | 12 cores | |
| Into the largest cable diameter (mm) | ᴓ12 | |
| Cable outlet size(mm) | 2*3~ᴓ5 | |
| IP protection level | IP54 | |
| Flammability | HB(Conventional) | can be customized according to requirements |
| Neutral salt spray test (NSS) | 48 h |

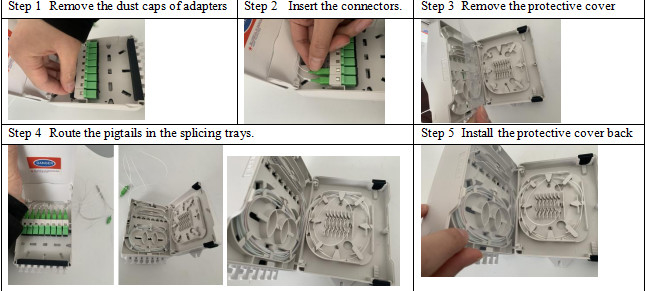

Product Configuration:
| ||||||||||||||||
Accessories:
1 PC in a bubble bag,220*200mm；
1 PC in a small carton,160*110*65mm, gross weight is 0.35 kg；
50 PCS in a big corrugated carton,570*340*355 mm, gross weight is 18kg.
More Picture:
FAQ:
Q1: Are you a factory?
A: Yes, we are a factory.
Q2: what's your products' quality control?
1. Control the raw material, manpower allocation, working environments, equipment, etc.
2. Improve the working standard, cooperation, training of workers, etc.
Q3: Do you offer a guarantee for the products?
A: Yes, our products offer 1-2 years warranty.
Q4: Could you offer the OEM service?
A: Yes, we can provide OEM service, and manufacture as requested.
Q5. May I take a sample order
A: Yes, free samples are available and MOQ is 1 piece.
Q6. What about the lead time?
A: Sample takes 3 days, mass production time takes 7-15 days for bulk order.
Q7. What about the shipment?
A: International Express - DHL, UPS, FedEx, or TNT.
Airline.
Sea/Marine shipping.
