Product Details
Place of Origin: China
Brand Name: JUNPU
Certification: ROHS CE CCC
Model Number: JP-I2-12OTE
Payment & Shipping Terms
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Strong Cartons Box
Delivery Time: 1 ~ 10 working days
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Supply Ability: 10000 Pieces Per Month
Product Name: |
Fiber Optic Distribution Box 16 Core |
Mode: |
Wall Mounted |
Free Sample: |
Support |
Size: |
320*265*120mm |
Connector: |
SC, LC |
Material: |
PC, ABS |
Port: |
1 In, 12 Out |
Application: |
Indoor Or Outdoor |
Color: |
White |
PLC Splitter: |
Mini Steel Tube |
Colorful Logo: |
Support |
OEM: |
YES |
Product Name: |
Fiber Optic Distribution Box 16 Core |
Mode: |
Wall Mounted |
Free Sample: |
Support |
Size: |
320*265*120mm |
Connector: |
SC, LC |
Material: |
PC, ABS |
Port: |
1 In, 12 Out |
Application: |
Indoor Or Outdoor |
Color: |
White |
PLC Splitter: |
Mini Steel Tube |
Colorful Logo: |
Support |
OEM: |
YES |

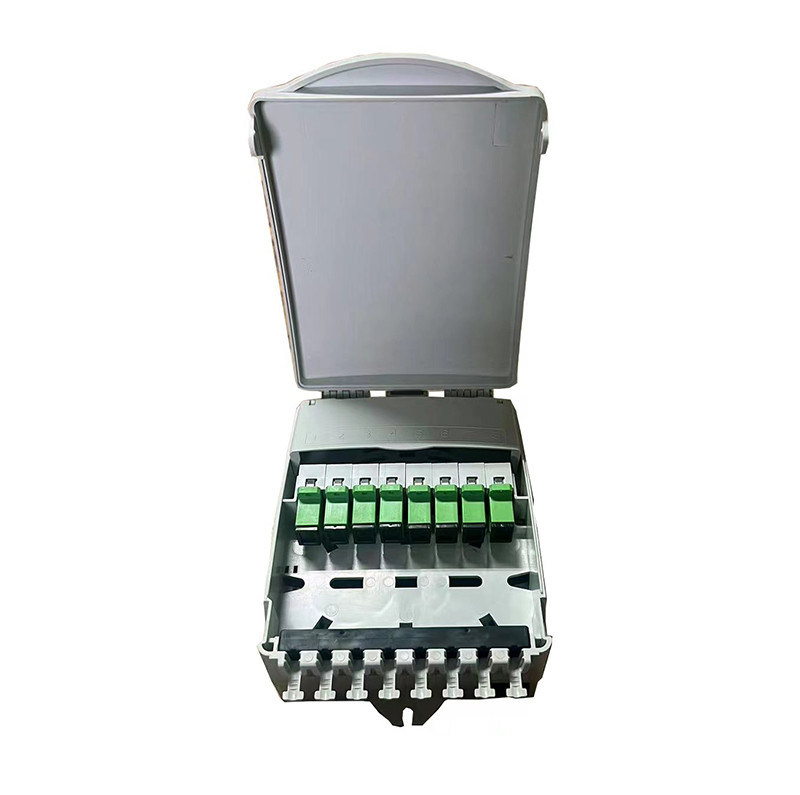

New Style Wall-mounting 12 Core Fiber Optics Distribution IP65 Terminal Box
Products Description
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
8
Standards Comply
The production offered by ALT are designed, manufactured and tested according to the standards as follows:
| ITU-T G.652 | Characteristics of a single-mode optical fibre |
| IEC 60794-1-1 | Optical fibre cables-part 1-1: Generic specification-General |
| IEC 60794-1-2 | Optical fibre cables-part 1-2: Generic specification-Basic optical cable test procedure |
| Item | Value |
| Operation temperature | -40 ºC~+65 ºC |
| Installation temperature | -5 ºC~+40 ºC |
| Storage temperature | -40ºC~+65 ºC |
| Atmospheric pressure | 70~106Kpa |
| Relative humidity | ≤93%(+40℃) |
Feature:
Specification:
| Mechanical specifications | ||
| Item | Specifications | Remark |
| External dimension(mm) | 151.8*105.7*59 | |
| Installation hole position(mm) | 141 | |
| Color | PANTONE 428C | Customizable |
| Size and quantity of optical cable hole | Optical cable straight through without cutting | |
| Input type/type of output | SC adapter | |
| Capacity(Max) | 12 cores | |
| Into the largest cable diameter (mm) |
ᴓ12 |
|
| Cable outlet size(mm) | 2*3~ᴓ5 | |
| IP protection level | IP54 | |
| Flammability | HB(Conventional) | can be customized according to requirements |
| Neutral salt spray test (NSS) | 48 h | |
Configuration
| Main parts | |||
| Part name | Unit | Quantity | Note |
| 1*8 PLC Splitter | pcs | 1 | |
| SC adapter | pcs | 8 | |
Package
1 PC in a bubble bag,220*200mm;
1 PC in a small carton,160*110*65mm, gross weight is 0.35 kg;
50 PCS in a big corrugated carton,570*340*355 mm, gross weight is 18kg.
Detailed Images
FAQ:
Q1: Are you a factory?
A: Yes, we are a factory.
Q2: what's your products' quality control?
1. Control the raw material, manpower allocation, working environments, equipment, etc.
2. Improve the working standard, cooperation, training of workers, etc.
Q3: Do you offer a guarantee for the products?
A: Yes, our products offer 1-2 years warranty.
Q4: Could you offer the OEM service?
A: Yes, we can provide OEM service, and manufacture as you requested.
Q5. May I take a sample order
A: Yes, free samples are available and MOQ is 1 piece.
Q6. What about the lead time?
A: Sample takes 3 days, mass production time takes 7-15 days for bulk order.
Q7. What about the shipment?
A: International Express - DHL, UPS, FedEx, or TNT.
Airline.
Sea/Marine shipping.
We sincerely invite you to send us an inquiry for further details!
Junpu Cares About Every Single Details Of The Product For You!
