Product Details
Place of Origin: China
Brand Name: JUNPU
Certification: ROHS CE CCC
Model Number: JP-I2-8OTE
Payment & Shipping Terms
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Strong Cartons Box
Delivery Time: 1 ~ 10 working days
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Supply Ability: 10000 Pieces Per Month
Product Name: |
Fiber Optic Distribution Box 8 Core |
Mode: |
Wall Mounted. Holding Pole |
Free Sample: |
Support |
Size: |
320*265*120mm |
Connector: |
SC, LC |
Material: |
PC, ABS |
Port: |
2 In, 8 Out |
Application: |
Indoor Or Outdoor |
Color: |
Black |
PLC Splitter: |
Mini Steel Tube |
Colorful Logo: |
Support |
OEM: |
YES |
Product Name: |
Fiber Optic Distribution Box 8 Core |
Mode: |
Wall Mounted. Holding Pole |
Free Sample: |
Support |
Size: |
320*265*120mm |
Connector: |
SC, LC |
Material: |
PC, ABS |
Port: |
2 In, 8 Out |
Application: |
Indoor Or Outdoor |
Color: |
Black |
PLC Splitter: |
Mini Steel Tube |
Colorful Logo: |
Support |
OEM: |
YES |

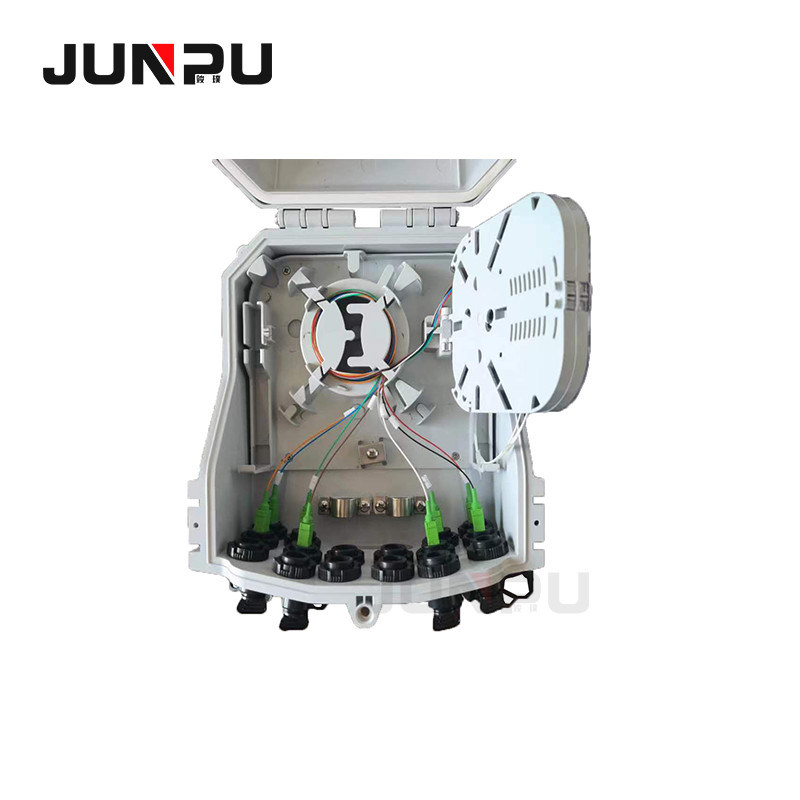

FTTH Box 8 Core Fiber Optic Distribution IP65 ABS Box With Wall/Pole Method
Products Description
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
8
Feature:
1, Total enclosed structure.
2, Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP65.
3, Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
4, Cable,pigtails,and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation,easy maintenance.
5, Distribution panel can be flipped up, feeder cable can be placed by expression port,easy for maintenance and installation.
6, Box can be installed by the way of wall-mounted or poled-mounted,suitable for both indoor and outdoor use.
Specification:
1.Environmental requirement
Working temperature:-40℃~+85℃
2.Relative humidity:≤85%(+30℃)
Atmospheric pressure:70KPa~106Kpa
Main technical datasheet
Insertion loss:≤0.15dB
UPC return loss:≥50dB
APC return loss:≥60dB
3,Thunder-proof technical datasheet
Configuration table:
| Table 1 Model and configuration | ||||||
| Model | Description |
Size(Pic 1) A*B*C(mm) |
Max Capacity
|
Installation Size(Pic 2) | Into the largest cable diameter(mm) | |
| D*E*F | G*H | |||||
| 8 core | Spllitter Box | 208*241*117 | 8(SC/APC) | 179*212*126 | 21*52 | 18 |
Installation:
Detailed Images
FAQ:
Q1: Are you a factory?
A: Yes, we are a factory.
Q2: what's your products' quality control?
1. Control the raw material, manpower allocation, working environments, equipment, etc.
2. Improve the working standard, cooperation, training of workers, etc.
Q3: Do you offer a guarantee for the products?
A: Yes, our products offer 1-2 years warranty.
Q4: Could you offer the OEM service?
A: Yes, we can provide OEM service, and manufacture as you requested.
Q5. May I take a sample order
A: Yes, free samples are available and MOQ is 1 piece.
Q6. What about the lead time?
A: Sample takes 3 days, mass production time takes 7-15 days for bulk order.
Q7. What about the shipment?
A: International Express - DHL, UPS, FedEx, or TNT.
Airline.
Sea/Marine shipping.
We sincerely invite you to send us an inquiry for further details!
Junpu Cares About Every Single Details Of The Product For You!
