Home > Products > Fiber Optic Patch Cord > LC APC-LC UPC Patch Cord Optical Fiber Simplex Single Mode LSZH 2.00mm

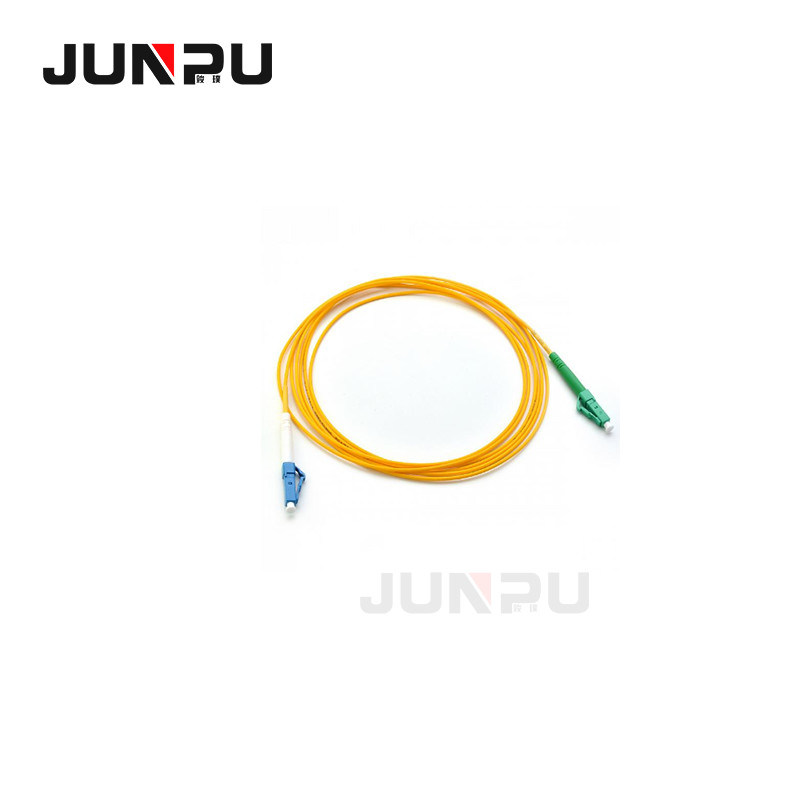

LC APC-LC UPC Patch Cord Optical Fiber Simplex Single Mode LSZH 2.00mm

Product Details

Place of Origin: China

Brand Name: JUNPU

Certification: ROHS CE CCC

Model Number: LC APC-LC UPC Pigtail Fiber Optic

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: Negotiation

Packaging Details: Standard Strong Carton Box

Delivery Time: 1 ~ 10 Working days based on quantity

Payment Terms: T/T, Western Union, Credit Card Via Alibaba

Supply Ability: 100000 pieces per week

Get Best Price
Highlight:
Product Name:
SC UPC Fiber Optic Patch Cord
Fiber Mode:
G652D/G657A1/G657A2
Length:
1m, 2m, 3m, 5m As Your Customeried
Jacket:
PVC/LSZH
Cable OD:
3.0mm, 0.9mm, 2.0mm Or Optional
Brand Name:
JUNPU Or OEM
Application:
FTTH, Data Center
Fiber Counts:
Simplex Or Duplex
Product Name:
SC UPC Fiber Optic Patch Cord
Fiber Mode:
G652D/G657A1/G657A2
Length:
1m, 2m, 3m, 5m As Your Customeried
Jacket:
PVC/LSZH
Cable OD:
3.0mm, 0.9mm, 2.0mm Or Optional
Brand Name:
JUNPU Or OEM
Application:
FTTH, Data Center
Fiber Counts:
Simplex Or Duplex
LC APC-LC UPC Patch Cord Optical Fiber Simplex Single Mode LSZH 2.00mm

LC APC-LC UPC Patch Cord Optical Fiber Simplex Single Mode LSZH 2.00mm



Description:

Fiber optic patch cords consist of a core with a high refractive index surrounded by a coating with a low refractive index, reinforced with aramid yarn, and wrapped in a protective jacket. The transparency of the core allows loss-free transmission of optical signals over long distances. The low refractive index coating also reflects light back into the core, minimizing signal loss. In addition, the aramid yarn and the protection of the outer jacket minimize physical damage to the core and coating.

LC APC-LC UPC Patch Cord Optical Fiber Simplex Single Mode LSZH 2.00mm 0

fiber optic patch cables are used in two major application areas: computer workstations to outlet and patch panels or optical cross-connect distribution centers. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for deployment.

Features:

  • Varieties of connectors FC, SC, ST, LC
  • Special specifications available upon the customer's request
  • Fiber Core Eccentricity Test
  • Excellent end-face geometry parameter
  • Low insertion loss and high return loss

Applications:

  • Photoelectric Automatic Control System
  • Optical Test Instrument
  • CATV
  • Image Transmission Networks
  • Data Transmission Networks
  • Telecommunication Networks
  • FTTX, FTTH

Performance Index

Item SM(Single Mode) MM(Multimode)
Fiber Cable Type G652D/G655/G657A1/G657A2 OM1 OM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 50/125
Cable OD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
Endface Type PC UPC APC UPC UPC
Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
Return Loss (dB) >45 >50 >60 /
Insert-pull Test (dB) <0.2 <0.3 <0.15
Interchangeability (dB) <0.1 <0.15 <0.1
Anti-tensile Force (N) >70
Temperature Range (℃) -40~+80




  • Screw-thread coupling mechanism.
  • Ceramic ferrules.
  • Low insertion loss, high return loss.
  • Good in repeatability and exchangeability.
  • 100% Insertion, Return Loss, End Face, and Interference inspection.
  • Excellent mechanical endurance.
  • High credibility and stability.
  • Complying with Telcordia, GR-326-Core, IEC, and RoHS Standard.

More pictures:



LC APC-LC UPC Patch Cord Optical Fiber Simplex Single Mode LSZH 2.00mm 1

LC APC-LC UPC Patch Cord Optical Fiber Simplex Single Mode LSZH 2.00mm 2

LC APC-LC UPC Patch Cord Optical Fiber Simplex Single Mode LSZH 2.00mm 3

Other Patch Cord Series:

LC APC-LC UPC Patch Cord Optical Fiber Simplex Single Mode LSZH 2.00mm 4
