Product Details
Place of Origin: China
Brand Name: JUNPU
Certification: ROHS CE CCC
Model Number: Optical Patch Cord
Payment & Shipping Terms
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Standard Strong Carton Box
Delivery Time: 1 ~ 10 Working days based on quantity
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Product Name: |
FTTH CATV LC APC Fiber Optic Patch Cord UPC SC Single Mode 1 3 5 Meter |
Connector: |
SC, LC, FC |
Fiber Mode: |
Singlemode |
Length: |
1m, 2m, 3m, 5m As Your Customeried |
Jacket: |
PVC/LSZH |
Product Name: |
FTTH CATV LC APC Fiber Optic Patch Cord UPC SC Single Mode 1 3 5 Meter |
Connector: |
SC, LC, FC |
Fiber Mode: |
Singlemode |
Length: |
1m, 2m, 3m, 5m As Your Customeried |
Jacket: |
PVC/LSZH |
FTTH CATV LC APC Fiber Optic Patch cord UPC SC Single Mode 1 3 5 Meter Fiber Pigtail
Specification:
Fiber patch cable, also called fiber optic jumper or fiber optic patch cord, is designed to interconnect or cross connect fiber networks within structured cabling systems. The connectors capped at either end of the fiber patch cable allow it to be rapidly and conveniently connected to an optical switch, cable television (CATV) or other telecommunication equipment. Depending on transmission medium, the fiber patch cable can be classified into single-mode fiber patch cable and multimode patch cord.
Applications:
Features:

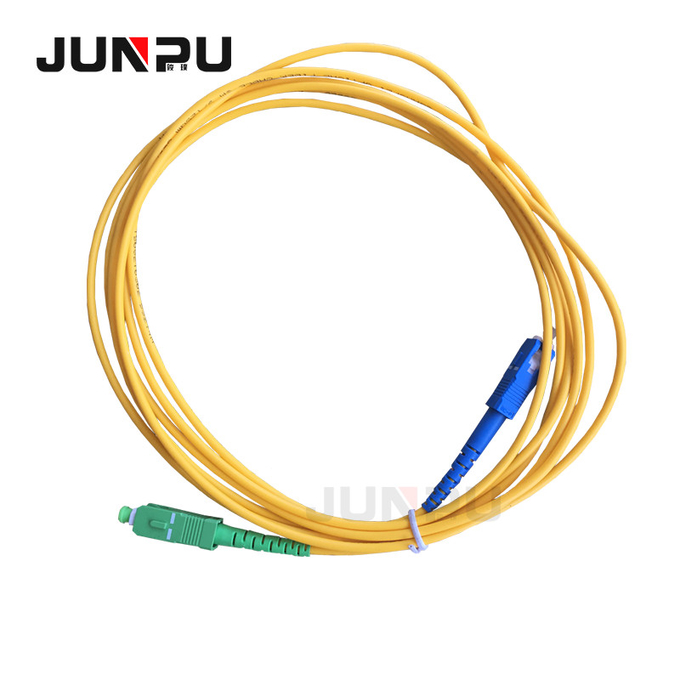

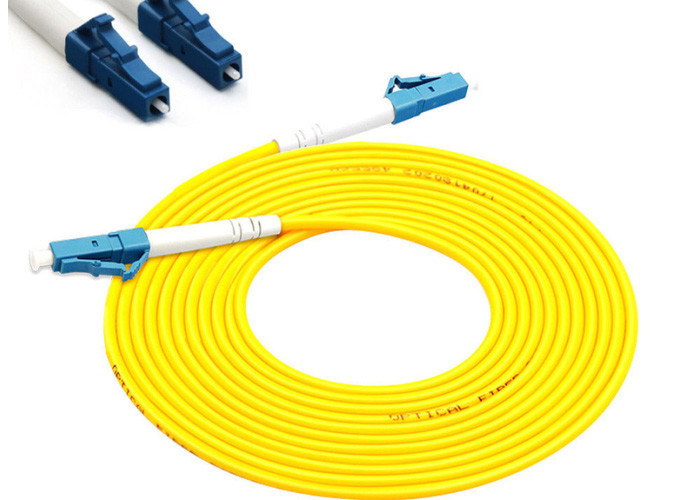

Single-mode fiber patch cable, which is generally yellow, is composed of a fiber optic cable terminated with single mode fiber optic connectors at both ends. It is usually used for connections over large areas, such as college campuses and cable television networks. Compared with multimode fiber patch cable, single-mode fiber patch cable have a higher bandwidth. The following figure shows the common single-mode fiber patch cable which is with blue connectors at both ends.
Specification:
Pigtail Connector | PC (SM) | UPC (SM) | APC (SM) | MM |
Return Loss (dB) | ≥45 | ≥50 | ≥60 | ≥35 |
Insertion Loss (dB) | ≤0.2 (max≤0.3) | |||
Repeatability (dB) | ≤0.1 | |||
Durability(1/Matings) | ≥500 | |||
Operation Temperature (°C) | -25~+70 | |||
Tensile Strength (N) | ≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9 | |||
Fiber | 9/125um, 50/125um,62.5/125um,ect | |||
diameter | 0.9mm 2.0mm, 3.0mm etc | |||
Cable material | PVC, LSZH | |||
Cores | Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc |
G.652 | G.655 | 50/125μm | 62.5/125μm | ||
Attenuation | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
(+20℃) | @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ||
@1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
@1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
Bandwidth (Class A) |
@850nm | ≥500 MHz·km | ≥200 MHz·km | ||
@1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
Cable Cut-off Wavelengthλcc | 1260nm | ≤1480nm |
Ordering Information
Boot (cable size) |
Boot Color | Fiber Type | Cable number | Ferrule | Length |
0.9mm 2.0mm 3.0mm |
Black Beige Blue Gray White Yellow |
9/125um SM 50/125um MM 62.5/125um MM OM3 OM4 |
Simplex Duplex Multi-fiber |
UPC APC |
Customized |
