Product Details
Place of Origin: China
Brand Name: JUNPU
Certification: ROHS CE CCC
Model Number: JP-I2-16OB
Payment & Shipping Terms
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Strong Cartons Box
Delivery Time: 1 ~ 10 working days
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Supply Ability: 10000 Pieces Per Month
Product Name: |
16 Core Outdoor Optical Distribution Box |
Mode: |
Wall Mounted/Pole |
Free Sample: |
Support |
Size: |
295*220*85mm |
Connector: |
SC, LC |
Material: |
PC, ABS |
Port: |
2/3in, 16out |
Application: |
Indoor Or Outdoor |
Color: |
Black, White |
PLC Splitter: |
Cassette Type, Mini Steel Tube |
Colorful Logo: |
Support |
OEM: |
YES |
Product Name: |
16 Core Outdoor Optical Distribution Box |
Mode: |
Wall Mounted/Pole |
Free Sample: |
Support |
Size: |
295*220*85mm |
Connector: |
SC, LC |
Material: |
PC, ABS |
Port: |
2/3in, 16out |
Application: |
Indoor Or Outdoor |
Color: |
Black, White |
PLC Splitter: |
Cassette Type, Mini Steel Tube |
Colorful Logo: |
Support |
OEM: |
YES |

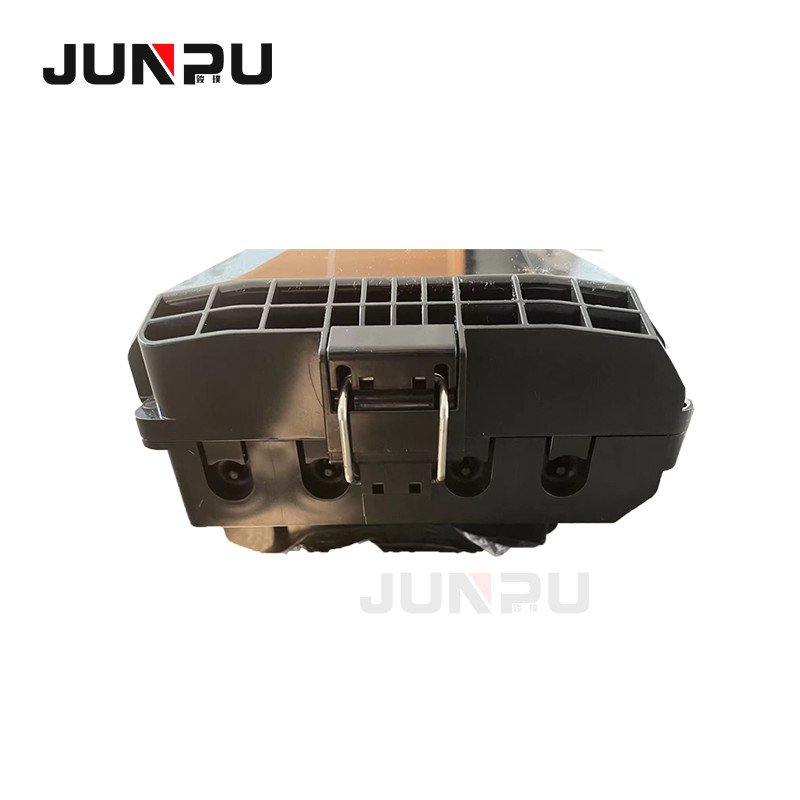

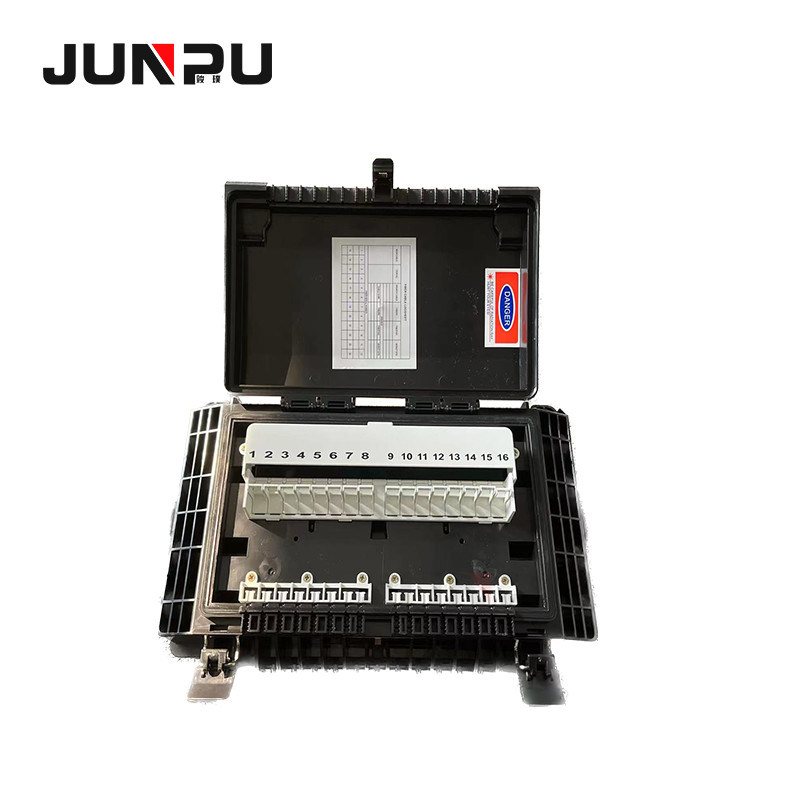

Black 16 Port Fiber Optic Cable Distribution Box IP68
Description:
JUNPU Fiber Optic Distribution Boxes are cost-effective and advanced in construction. We can also customize fiber terminal boxes according to your engineering needs.
An optical fiber distribution box is a client wiring facility in an FTTH optical network. It is mainly used for terminal fusion, branching, and wiring output of optical transmission terminals. It can effectively terminate, protect, and manage optical fiber cables. This equipment is necessary for network transmission.
Features:
Application:
1. Optical LAN & WAN & CATV
2. FTTH project & FTTX Deployments
3. Broadband High-bit rate data transmission
4. Active device terminations
5. Testing instruments
6. Optical fiber communication networks
7. PON Networks
8. Optical Signal Distribution
Specification:
1, Environmental requirement
Working temperature:-40℃~+85℃
Relative humidity:≤85%(+30℃)
Atmospheric pressure:70KPa~106Kpa
2, Main technical datasheet
Insertion loss:≤0.3dB
UPC return loss:≥50dB
APC return loss:≥60dB
Life of insertion and extraction:>1000 times
3, Thunder-proof technical datasheet
The grounding device is isolated with the cabinet, and isolation resistance is less than 2x104MΩ/500V(DC); IR≥2x104MΩ/500V
The withstand voltage between the grounding device and cabinet is no less than 3000V(DC)/min, with no puncture, no flashover; U≥3000V
Product Configuration:
Model | Description | Size(Pic 1) | Max Capacity | Into the largest cable diameter (mm) |
Cable outlet size (mm) |
|
A*B*C(mm) | SC | PLC | ||||
16 CORE | Splitter Box | 340*204*123.5 | 16 | 2PCS 1x8fiber | 12 | 2*3 |
More Picture:
FAQ:
Q1: Are you a factory?
A: Yes, we are a factory.
Q2: what's your products' quality control?
1. Control the raw material, manpower allocation, working environments, equipment, etc.
2. Improve the working standard, cooperation, training of workers, etc.
Q3: Do you offer a guarantee for the products?
A: Yes, our products offer 1-2 years warranty.
Q4: Could you offer the OEM service?
A: Yes, we can provide OEM service, and manufacture as requested.
Q5. May I take a sample order
A: Yes, free samples are available and MOQ is 1 piece.
Q6. What about the lead time?
A: Sample takes 3 days, mass production time takes 7-15 days for bulk order.
Q7. What about the shipment?
A: International Express - DHL, UPS, FedEx, or TNT.
Airline.
Sea/Marine shipping.
Our company:
Junpu Fiber Optic Distribution Box Series
We sincerely invite you to send us an inquiry for further details.
Junpu Cares About Every Single Details Of The Product For You!
