Popular 100km 2 Ports 1550nm Optical Transmitter 8dbm External Mdoulation

China Popular 100km 2 Ports 1550nm Optical Transmitter 8dbm External Mdoulation supplier
Popular 100km 2 Ports 1550nm Optical Transmitter 8dbm External Mdoulation supplier Popular 100km 2 Ports 1550nm Optical Transmitter 8dbm External Mdoulation supplier Popular 100km 2 Ports 1550nm Optical Transmitter 8dbm External Mdoulation supplier

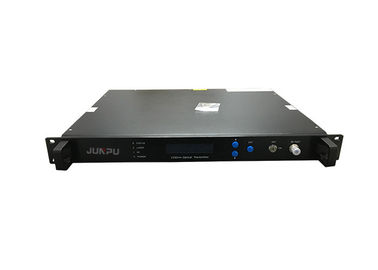

Large Image :  Popular 100km 2 Ports 1550nm Optical Transmitter 8dbm External Mdoulation

Product Details:

Place of Origin: China
Brand Name: JUNPU
Certification: ROHS, CE, CCC
Model Number: JP1528ET

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Standard Strong Carton Box
Delivery Time: 1 ~ 10 working days based on quantity
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Supply Ability: 3000Pieces Per Month
Contact Now
Detailed Product Description
Product Name: 1550nm Optical Transmitter Wavelength: 1550nm
Output Optical Power: 2x5, 2x6, 2x7, 2x8, 2x9, 2x10, 2x11 Laser Type: JDSU, Ocrola, Ortel, AOI
Optical Connector: SC APC Or FC APC Bandwidth: 47 ~ 862Mhz&1000Mhz
Working Voltage: AC220V Or DC48V Power Source: 1+1 Backup Power Source
Warranty: 2 Years OEM: YES

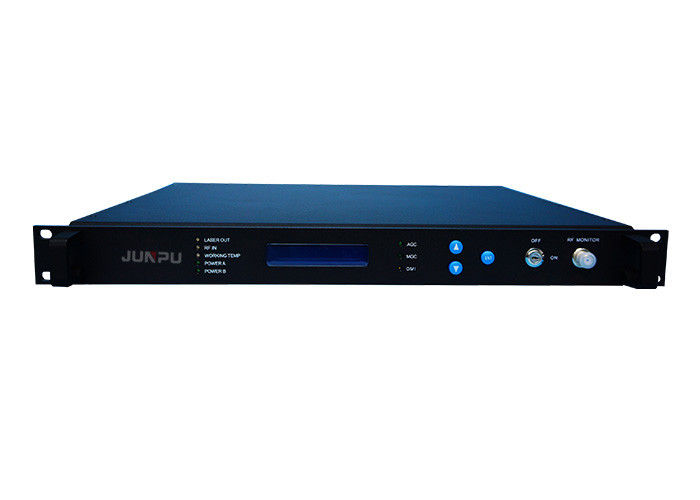

Junpu 100km 2 Ports 1550nm Optical Transmitter 8dbm External Mdoulation



Description:

  • JP1528ET an economical 1550nm Externally Modulated Optical Transmitter, is produced specially for middle and small CATV station. Optical transmitter adopts narrow bandwidth (Typ.=1MHz), low noise and continuous wave DFB laser as the light source, adopts CATV special LiNbO3 external modulator to modulate signal, and adopts a series of unique innovation technique to reach the excellent system control. With 47~862MHz bandwidth, CNR ≥ 53dB, CTB ≤ -65dB, CSO ≤ -65dB, SBS: 13dbmadjustable, Optical transmitter can make CATV network transmit video, audio and data with high performance. The machine is equipped with perfect RS232 communication interface, SNMP network management and 1+1 backup power supply.



  • 1550nm externally modulated optical transmitter is the core equipment in this system. RFTV is a unidirectional analogue and digital video broadcast. It adopts high efficiency modulation mode for RF carrier wave and its economy, flexibility and bandwidth validity is beyond comparison of IPTV. Adopting EPON or P2P access mode to realize triple-play, FTTx , RFTV broadcasting network in 1550nm optical  transmitter wavelength still plays an important role.



  • 1550nm directed modulation optical transmitter max support 20km transmission distance.
  • If more than 20km, then it should be 1550nm extener modulated optical transmitter.



FTTH Diagram:

Popular 100km 2 Ports 1550nm Optical Transmitter 8dbm External Mdoulation



Product Features:

  • Both the external modulator and laser are imported from the United States or Japan.
  • Perfect pre-distortion circuit ensures the best CTB and CSO when the CNR is in high standard.
  • Perfect SBS suppress circuit and adjustable SBS in 13~19,suitable for different types of CATV net.
  • AGC control.
  • Internal double power which can be changed automatically.
  • Automatically shell temperature control.
  • Internal microprocessor software has the function of laser monitoring, parameter display, fault warning, net management and so on. Once the working parameter of the laser goes out of the fixed value of the software, the machine will warn.
  • The transmitter provides RJ45 and RS232 standard interface for the connecting the computer and monitoring.

Details:



Parameter Specification
Product Name 1550nm Optical Transmitter
Working Wavelength 1550±10
SBS adjustable

13 ~ 19dbm or 13,16,18,19dbm adjustable

Output Optical Power 1x5,1x7,1x9,1x10,2x5,2x7,2x8,2x9,2x10,2x11

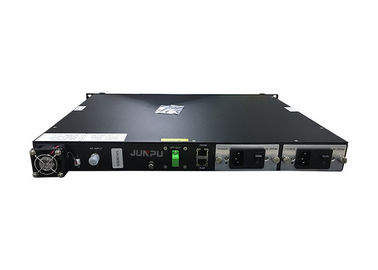

Popular 100km 2 Ports 1550nm Optical Transmitter 8dbm External Mdoulation





Popular 100km 2 Ports 1550nm Optical Transmitter 8dbm External Mdoulation



Popular 100km 2 Ports 1550nm Optical Transmitter 8dbm External Mdoulation

Technical Specification:



Parameter Index Remarks
Optical Parameters Wavelength (nm) 1550±10 1x5,1x9, 1x10,2x5,2x7,2x8,2x9,2x10,2x11
  Output power (dBm) 1×3 ~ 2×10
  Optical return loss (dB) ≥60
  Connector type SC/APC Or FC/APC
RF parameters bandwidth (MHz) 47~862/1000
  Input level (dBmV) 23±5 AGC
  Flatness (dB) ≤±0.75 45~862MHz
  Return loss (dB) ≥16 45~750MHz
  Input inpedance (Ω) 75
Link Parameters channels PAL-D/60ch
  CNR (dB) ≥53 65Km fiber,Receive0dBm
  CTB (dB) ≥65
  CSO (dB) ≥65
  SBS (dBm) 13~19 Step 0.1
General Parameters Net interface RJ45,R232
  Power (V) 90~265 Or -48VDC
  Power loss (W) ≤50
  Working Temp(℃) 0~50 Automatically shell temp control
  Storage Temp(℃) -20~85
  Working relative Temp 20%~85%



Workshop:

Popular 100km 2 Ports 1550nm Optical Transmitter 8dbm External Mdoulation



Other Related Products:



Popular 100km 2 Ports 1550nm Optical Transmitter 8dbm External Mdoulation

Popular 100km 2 Ports 1550nm Optical Transmitter 8dbm External Mdoulation



Popular 100km 2 Ports 1550nm Optical Transmitter 8dbm External Mdoulation



We sincerely invite you to send us inquiry for further details.

Junpu Cares About Every Single Details Of The Product For You !
