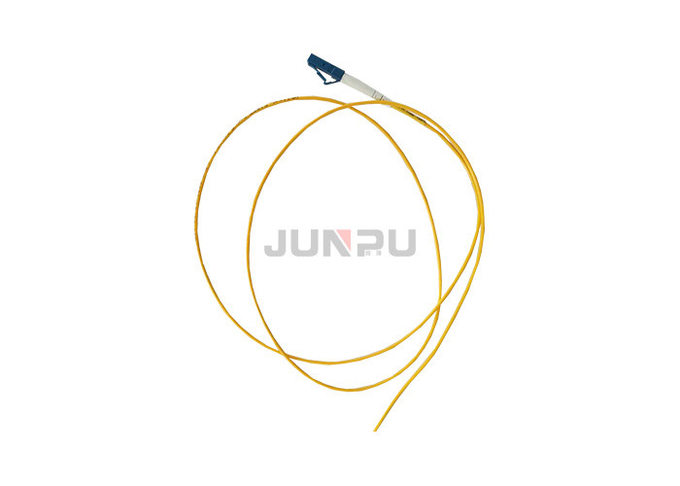

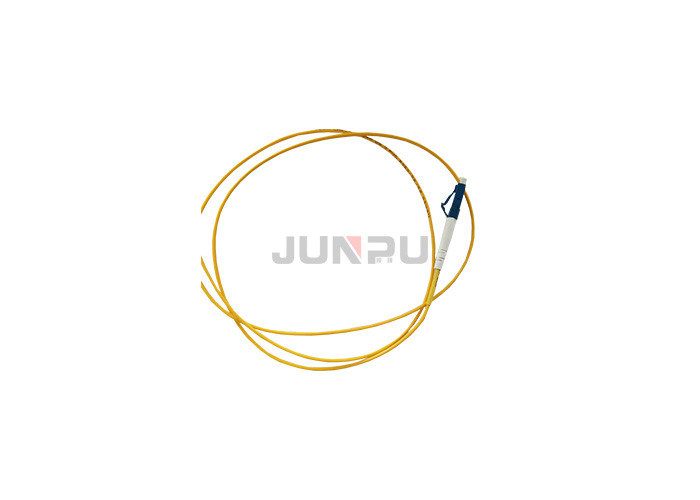

3.0mm LC UPC Fiber Optic Patch Cord Singlemode G652D G657 LC UPC Pigtail

3.0mm LC UPC Fiber Optic Patch Cord Singlemode G652D G657 LC UPC Pigtail
3.0mm LC UPC Fiber Optic Patch Cord Singlemode G652D G657 LC UPC Pigtail

Large Image :  3.0mm LC UPC Fiber Optic Patch Cord Singlemode G652D G657 LC UPC Pigtail

Product Details:

Place of Origin: China
Brand Name: JUNPU
Certification: ROHS CE CCC
Model Number: LC UPC Fiber Optical Pigtail

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Standard Strong Carton Box
Delivery Time: 1 ~ 10 Working days based on quantity
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Supply Ability: 1000 pieces per week
Detailed Product Description
Product Name: 3.0mm LC UPC Fiber Optical Pigtail Singlemode G652D G657 LC UPC Pigtail Connector: LC, SC, FC, ST Connector Optional
Fiber Mode: G652D/G657A1/G657A2 Length: 1m, 2m, 3m, 5m As Your Customeried
Jacket: LSZH Cable OD: 3.0mm, 0.9mm, 2.0mm
Brand Name: JUNPU Or OEM Application: FTTH, Data Center
Fiber Counts: Simplex Or Duplex Ferrule End Face: APC Or UPC
High Light:

fiber optic pigtail

,

fibre optic patch leads

3.0mm LC UPC Fiber Optical Pigtail Singlemode G652D G657 LC UPC pigtail



Description:

Fiber Optic Pigtail is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable.

The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.



Features:
1. SC, LC, FC, MU, ST, MT-RJ, E2000 connector available;
2. Superior qualified standard PC, APC, UPC, SPC polishing;
3. φ0.9mm, φ2.0mm, φ3.0mm cable optional;
4. Single mode (9125) or multi mode (50/125 or 62.5/125) fiber available;
5. Available in fiber bunch, ribbon fan-out, pigtail available;
6. Simplex and duplex connector available;
7. Low IL and High RL;
8. Good exchange ability and good durability;
8. Customized specifications are welcomed.

3.0mm LC UPC Fiber Optic Patch Cord Singlemode G652D G657 LC UPC Pigtail 0



Performance Index

Item SM(Single Mode) MM(Multimode)
Fiber Cable Type G652D/G655/G657A1/G657A2 OM1 OM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 50/125
Cable OD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
Endface Type PC UPC APC UPC UPC
Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
Return Loss (dB) >45 >50 >60 /
Insert-pull Test (dB) <0.2 <0.3 <0.15
Interchangeability (dB) <0.1 <0.15 <0.1
Anti-tensile Force (N) >70
Temperature Range (℃) -40~+80




Applications:

  • FTTH FTTB FTTX Network,
  • Data Center,
  • For ODF internal link,
  • For room equipment internal link,
  • FTTH/Test equipments/TV/LAN/Telecommunication equipments

3.0mm LC UPC Fiber Optic Patch Cord Singlemode G652D G657 LC UPC Pigtail 1

Other Patch Cord Series:

3.0mm LC UPC Fiber Optic Patch Cord Singlemode G652D G657 LC UPC Pigtail 23.0mm LC UPC Fiber Optic Patch Cord Singlemode G652D G657 LC UPC Pigtail 3
