0.9mm Or 3.0mm SC Fiber Patch Cord Optic Pigtail Simplex Singlemode

Product Details

Place of Origin: China

Brand Name: JUNPU

Certification: ROHS CE CCC

Model Number: SC Fiber Patch Cord

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: Negotiation

Packaging Details: Standard Strong Carton Box

Delivery Time: 1 ~ 10 Working days based on quantity

Payment Terms: T/T, Western Union, Credit Card Via Alibaba

Supply Ability: 100000 pieces per week

Get Best Price
Highlight:

fiber optic pigtail

,

fibre optic patch leads

Product Name:
0.9mm Or 3.0mm SC Fiber Patch Cord Optic Pigtail Simplex Singlemode
Connector:
LC, SC, FC, ST Connector Or Optional
Fiber Mode:
G652D/G657A1/G657A2
Length:
1m, 2m, 3m, 5m As Your Customeried
Jacket:
PVC/LSZH
Cable OD:
3.0mm, 0.9mm, 2.0mm Or Optional
Application:
FTTH, Data Center
Fiber Counts:
Simplex Or Duplex
Product Name:
0.9mm Or 3.0mm SC Fiber Patch Cord Optic Pigtail Simplex Singlemode
Connector:
LC, SC, FC, ST Connector Or Optional
Fiber Mode:
G652D/G657A1/G657A2
Length:
1m, 2m, 3m, 5m As Your Customeried
Jacket:
PVC/LSZH
Cable OD:
3.0mm, 0.9mm, 2.0mm Or Optional
Application:
FTTH, Data Center
Fiber Counts:
Simplex Or Duplex
0.9mm Or 3.0mm SC Fiber Patch Cord Optic Pigtail Simplex Singlemode

0.9mm or 3.0mm SC Fiber Patch Cord Optic Pigtail Simplex Singlemode



Performance Index:

Fiber Type Single Mode Fiber Multi Mode Fiber
Parameters SC/PC, FC/PC, LC/PC,ST/PC,MU/PC SC/APC, FC/APC, LC/APC, E2000/APC SC/PC, FC/PC, LC/PC, ST/PC
Insertion Loss (dB) Max 0.3 0.3 0.25
Return Loss (dB) Min 50 60 35
Repeatability (dB) Max 0.1 0.1 0.1
Durability >1000
Operating Temperature (°C) -40~+75
Cable Type Φ0.9mm, 2mm, 3mm or Customer specified





Features:
1. SC, LC, FC, MU, ST, MT-RJ, E2000 connector available;
2. Superior qualified standard PC, APC, UPC, SPC polishing;
3. φ0.9mm, φ2.0mm, φ3.0mm cable optional;
4. Single mode (9125) or multi mode (50/125 or 62.5/125) fiber available;
5. Available in fiber bunch, ribbon fan-out, pigtail available;
6. Simplex and duplex connector available;
7. Low IL and High RL;
8. Good exchange ability and good durability;
8. Customized specifications are welcomed.



Description:

Fiber Optic Pigtail is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable.

The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.

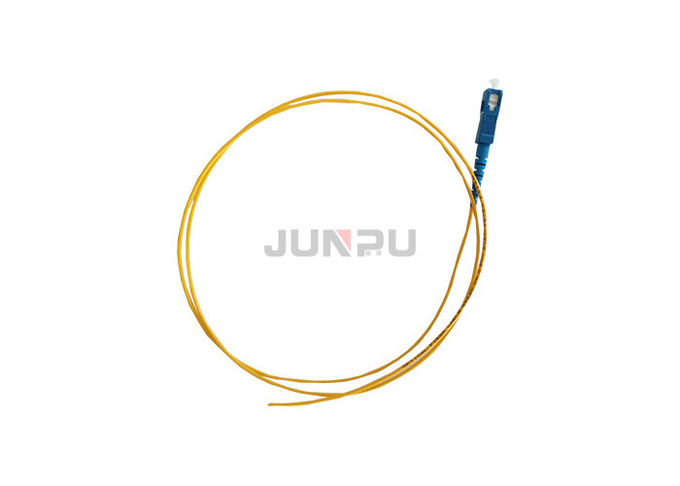

0.9mm Or 3.0mm SC Fiber Patch Cord Optic Pigtail Simplex Singlemode 0

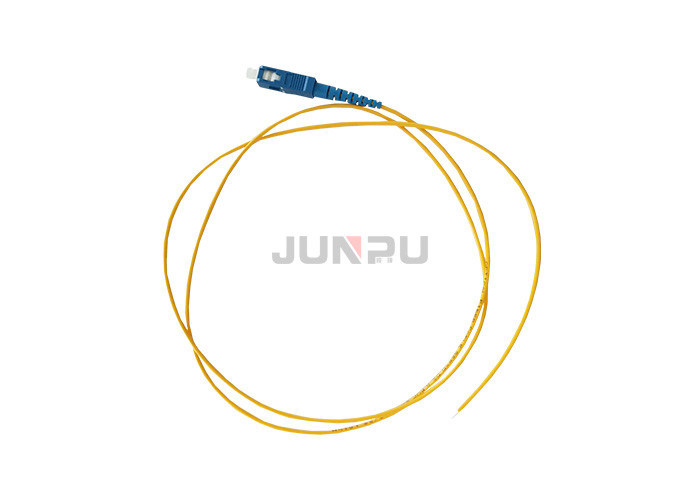

0.9mm Or 3.0mm SC Fiber Patch Cord Optic Pigtail Simplex Singlemode 1
