Product Details
Place of Origin: China
Brand Name: JUNPU
Certification: ROHS CE CCC
Model Number: Duplex Singlemode G675A2 Fiber Optic Pigtail SC APC
Payment & Shipping Terms
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Standard Strong Carton Box
Delivery Time: 1 ~ 10 Working days based on quantity
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Supply Ability: 100000 pieces per week
Product Name: |
Duplex Singlemode G675A2 Fiber Optic Pigtail SC APC |
Connector: |
SC APC Or Optional |
Fiber Mode: |
G652D/G657A1/G657A2 |
Length: |
1m, 2m, 3m, 5m As Your Customeried |
Jacket: |
PVC/LSZH |
Cable OD: |
3.0mm, 0.9mm, 2.0mm Or Optional |
Brand Name: |
JUNPU |
Application: |
FTTH, Data Center, Telecommunication |
Fiber Counts: |
Duplex |
Ferrule End Face: |
APC Or UPC |
Product Name: |
Duplex Singlemode G675A2 Fiber Optic Pigtail SC APC |
Connector: |
SC APC Or Optional |
Fiber Mode: |
G652D/G657A1/G657A2 |
Length: |
1m, 2m, 3m, 5m As Your Customeried |
Jacket: |
PVC/LSZH |
Cable OD: |
3.0mm, 0.9mm, 2.0mm Or Optional |
Brand Name: |
JUNPU |
Application: |
FTTH, Data Center, Telecommunication |
Fiber Counts: |
Duplex |
Ferrule End Face: |
APC Or UPC |

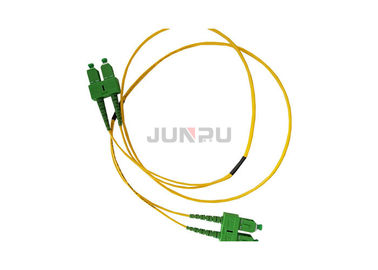

Duplex Singlemode G675A2 Fiber Optic Pigtail SC APC
Performance Index
| Item | SM(Single Mode) | MM(Multimode) | |||
| Fiber Cable Type | G652D/G655/G657A1/G657A2 | OM1 | OM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| Cable OD (mm) | 0.9/1.6/1.8/2.0/2.4/3.0 | ||||
| Endface Type | PC | UPC | APC | UPC | UPC |
| Typical Insertion Loss (dB) | <0.2 | <0.15 | <0.2 | <0.1 | <0.1 |
| Return Loss (dB) | >45 | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| Anti-tensile Force (N) | >70 | ||||
| Temperature Range (℃) | -40~+80 |
||||
Applications:
