LC - LC Fiber Optic Patch Cables , FTTH Optical Patch Cord PVC / LSZH

Product Details

Place of Origin: China

Brand Name: JUNPU

Certification: ROHS CE CCC

Model Number: Optical Patch Cord

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: Negotiation

Packaging Details: Standard Strong Carton Box

Delivery Time: 1 ~ 10 Working days based on quantity

Payment Terms: T/T, Western Union, Credit Card Via Alibaba

Get Best Price
Highlight:

fiber optic pigtail

,

fibre optic patch leads

Product Name:
Simplex Fiber LC-LC Optical Patch Cord FTTH
Connector:
SC, LC, FC
Fiber Mode:
Singlemode
Length:
1m, 2m, 3m, 5m As Your Customeried
Jacket:
PVC/LSZH
Product Name:
Simplex Fiber LC-LC Optical Patch Cord FTTH
Connector:
SC, LC, FC
Fiber Mode:
Singlemode
Length:
1m, 2m, 3m, 5m As Your Customeried
Jacket:
PVC/LSZH
LC - LC Fiber Optic Patch Cables , FTTH Optical Patch Cord PVC / LSZH

Junpu Simplex Fiber LC-LC Optical Patch Cord FTTH Application PVC/LSZH



Quick details:

  • Fiber Optic Patch Cable is also known as fiber optic jumper or fiber optic patch cord. Fiber Optic Patch Cable is important of optical network. They have same or different connectors which are installed on the end of fiber optic cable. Fiber optic patch cables are used in two major application areas: computer work station to outlet and patch panels or optical cross connect distribution center. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.



Features:

  • Screw-thread coupling mechanism
  • Ceramic ferrules
  • Low insertion loss, high return loss
  • Good in repeatability and exchangeability
  • 100% Insertion, Return Loss, End Face and Interference inspection
  • Excellent mechanical endurance
  • High credibility and stability
  • Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard



Applications:

  • Optical access network
  • Data processing networks
  • Premise installations
  • Local Area Networks(LANs)
  • Wide Area Networks(WANs)



Specification:



Pigtail Connector PC (SM) UPC (SM) APC (SM) MM
Return Loss (dB) ≥45 ≥50 ≥60 ≥35
Insertion Loss (dB) ≤0.2 (max≤0.3)
Repeatability (dB) ≤0.1
Durability(1/Matings) ≥500
Operation Temperature (°C) -25~+70
Tensile Strength (N) ≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9
Fiber 9/125um, 50/125um,62.5/125um,ect
diameter 0.9mm 2.0mm, 3.0mm etc
Cable material PVC, LSZH
Cores Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc
G.652 G.655 50/125μm 62.5/125μm
Attenuation @850nm     ≤3.0 dB/km ≤3.0 dB/km
(+20℃) @1300nm     ≤1.0 dB/km ≤1.0 dB/km
  @1310nm ≤0.36 dB/km ≤0.40 dB/km
  @1550nm ≤0.22 dB/km ≤0.23dB/km

Bandwidth

(Class A)

@850nm     ≥500 MHz·km ≥200 MHz·km
@1300nm     ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture     0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelengthλcc 1260nm ≤1480nm



Ordering Information



Boot

(cable size)

Boot Color Fiber Type Cable number Ferrule Length

0.9mm

2.0mm

3.0mm

Black

Beige

Blue

Gray

White

Yellow

9/125um SM

50/125um MM

62.5/125um MM

OM3

OM4

Simplex

Duplex

Multi-fiber

UPC

APC

Customized

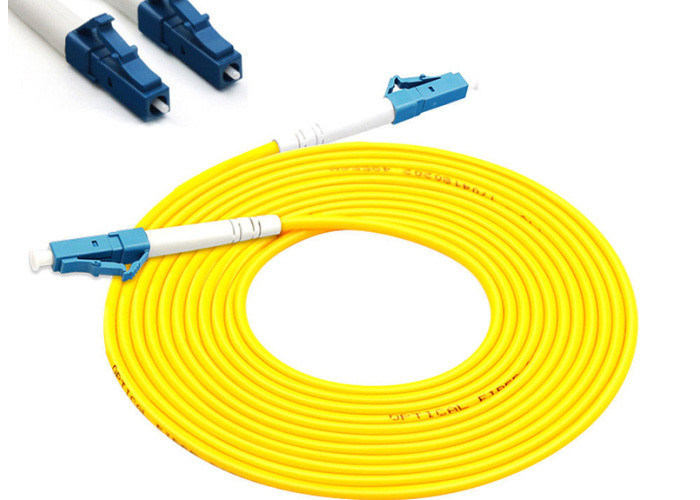

LC - LC Fiber Optic Patch Cables , FTTH Optical Patch Cord PVC / LSZH 0LC - LC Fiber Optic Patch Cables , FTTH Optical Patch Cord PVC / LSZH 1LC - LC Fiber Optic Patch Cables , FTTH Optical Patch Cord PVC / LSZH 2LC - LC Fiber Optic Patch Cables , FTTH Optical Patch Cord PVC / LSZH 3
