Product Details
Place of Origin: China
Brand Name: JUNPU
Certification: ROHS CE CCC
Model Number: mpo patch cord
Payment & Shipping Terms
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Standard Strong Carton Box
Delivery Time: 1 ~ 10 Working days based on quantity
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Product Name: |
8/12/24 Cores SM/MM/OM3 MPO Fiber Patch Cord |
Connector: |
SC, LC,FC |
Fiber Mode: |
Simplex And Duplex, G652D, G655, Anything, SM Or MM |
Length: |
1m, 2m, 3m, 5m As Your Customeried |
Jacket: |
PVC/LSZH |
Cable OD: |
3.0mm, 0.9mm, 2.0mm |
Connector Type: |
PC/UPC/APC,SC/FC/LC/ST |
Application: |
FTTH FTTB FTTX Network |
Product Name: |
8/12/24 Cores SM/MM/OM3 MPO Fiber Patch Cord |
Connector: |
SC, LC,FC |
Fiber Mode: |
Simplex And Duplex, G652D, G655, Anything, SM Or MM |
Length: |
1m, 2m, 3m, 5m As Your Customeried |
Jacket: |
PVC/LSZH |
Cable OD: |
3.0mm, 0.9mm, 2.0mm |
Connector Type: |
PC/UPC/APC,SC/FC/LC/ST |
Application: |
FTTH FTTB FTTX Network |

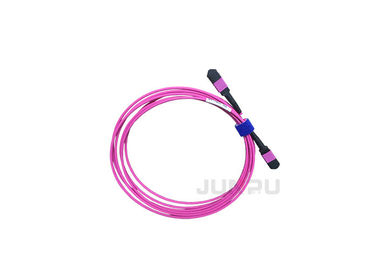

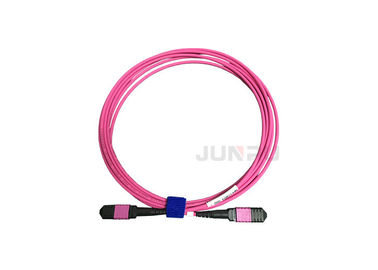

40G Fiber Optic Equipment 8/12/24 Cores SM/MM/OM3 MPO Fiber Patch Cord
FAQ:
Q1: What is your main products?
A: Fiber optic cable, patch cord, adapter, pigtail, connector, joint closure and so on.
Applications:
Specification:
| tems | Single mode | Multimode | ||||||
| PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G | |||
| Insertion Loss | <0.2dB | <0.3dB | ||||||
| Return Loss | ≥45dB | ≥50dB | ≥60dB | ≥35dB | ||||
| Durability | <0.1dB typical change, 500 matings |
|||||||
| Operating Temperature | -40 to +75°C | -40 to +75°C | ||||||
| Ferrule Hole Sizes | 125.0+1/-0um, Conentricity:≤1um | 125um,Conectricity:1≤3um | ||||||
| 125.3+1/-0um, Conentricity:≤1um | 127um,Conectricity:1≤3um | |||||||
| 125.5+1/-0um, Conentricity:≤1um | 128um,Conectricity:1≤3um | |||||||
| 126.0+1/-0um, Conentricity:≤1um | ||||||||
| Connector Type | Performance Level | |||||
| Standard | Elite | |||||
| Connector | Mode | Endface | IL(dB) | RL(dB) | IL(dB) | RL(dB) |
| LC/SC/FC/ST | SM | PC | ≤0.2 | ≥50 | ≤0.15 | ≥50 |
| UPC | ≤0.2 | ≥55 | ≤0.15 | ≥55 | ||
| APC | ≤0.2 | ≥60 | ≤0.15 | ≥60 | ||
| MM | PC | ≤0.2 | ≥35 | ≤0.15 | ≥35 | |
| MPO/MTP | SM | APC | ≤0.7 | ≥60 | ≤0.35 | ≥60 |
| MM | PC | ≤0.5 | ≥20 | ≤0.35 | ≥20 | |
| MTRJ | SM | PC | ≤0.5 | ≥50 | / | / |
| MM | PC | ≤0.5 | ≥35 | / | / | |
