Product Details
Place of Origin: China
Certification: ROHS CE CCC
Model Number: LC UPC Fiber Optical Pigtail
Payment & Shipping Terms
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Standard Strong Carton Box
Delivery Time: 1 ~ 10 Working days based on quantity
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Supply Ability: 1000 pieces per week
Brand Name: |
JUNPU Or OEM |
Product Name: |
3.0mm LC UPC Fiber Optical Pigtail Singlemode G652D G657 LC UPC Pigtail |
Connector: |
LC, SC, FC, ST Connector Optional |
Fiber Mode: |
G652D/G657A1/G657A2 |
Length: |
1m, 2m, 3m, 5m As Your Customeried |
Jacket: |
LSZH |
Cable OD: |
3.0mm, 0.9mm, 2.0mm |
Application: |
FTTH, Data Center |
Fiber Counts: |
Simplex Or Duplex |
Ferrule End Face: |
APC Or UPC |
Brand Name: |
JUNPU Or OEM |
Product Name: |
3.0mm LC UPC Fiber Optical Pigtail Singlemode G652D G657 LC UPC Pigtail |
Connector: |
LC, SC, FC, ST Connector Optional |
Fiber Mode: |
G652D/G657A1/G657A2 |
Length: |
1m, 2m, 3m, 5m As Your Customeried |
Jacket: |
LSZH |
Cable OD: |
3.0mm, 0.9mm, 2.0mm |
Application: |
FTTH, Data Center |
Fiber Counts: |
Simplex Or Duplex |
Ferrule End Face: |
APC Or UPC |

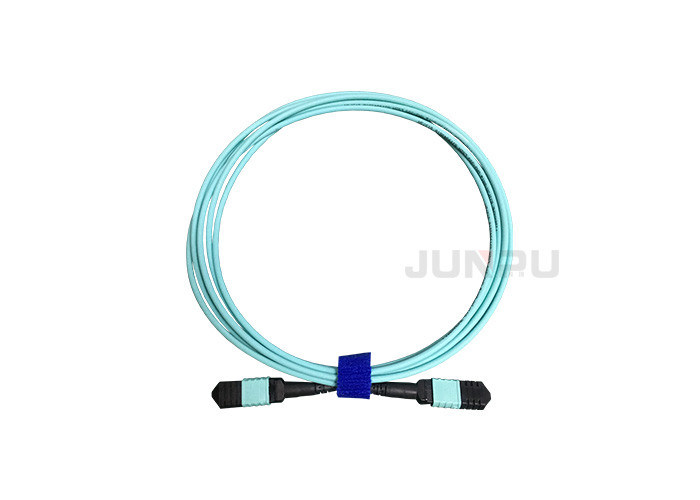

Fiber Optic Patch Cord Supplier, Single/Multi Mode Fiber Optic Patch Cord,LSZH
Description:
Fiber Optic Pigtail is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable.
The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.
Features:
1. SC, LC, FC, MU, ST, MT-RJ, E2000 connector available;
2. Superior qualified standard PC, APC, UPC, SPC polishing;
3. φ0.9mm, φ2.0mm, φ3.0mm cable optional;
4. Single mode (9125) or multi mode (50/125 or 62.5/125) fiber available;
5. Available in fiber bunch, ribbon fan-out, pigtail available;
6. Simplex and duplex connector available;
7. Low IL and High RL;
8. Good exchange ability and good durability;
8. Customized specifications are welcomed.
Performance Index
| Item | SM(Single Mode) | MM(Multimode) | |||
| Fiber Cable Type | G652D/G655/G657A1/G657A2 | OM1 | OM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| Cable OD (mm) | 0.9/1.6/1.8/2.0/2.4/3.0 | ||||
| Endface Type | PC | UPC | APC | UPC | UPC |
| Typical Insertion Loss (dB) | <0.2 | <0.15 | <0.2 | <0.1 | <0.1 |
| Return Loss (dB) | >45 | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| Anti-tensile Force (N) | >70 | ||||
| Temperature Range (℃) | -40~+80 |
||||
Applications:
