LC UPC Fan Out MM Fiber Optic Patch Cord G657A2 G652D OM3 OM5 MPO SM 10M

Product Details

Place of Origin: China

Brand Name: JUNPU

Certification: ROHS CE CCC

Model Number: LC UPC mpo patch cord

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: Negotiation

Packaging Details: Standard Strong Carton Box

Delivery Time: 1 ~ 10 Working days based on quantity

Payment Terms: T/T, Western Union, Credit Card Via Alibaba

Supply Ability: 1000 pieces per week

Get Best Price
Highlight:

fiber optic pigtail

,

fibre optic patch leads

Product Name:
LC UPC Fan Out MM G657A2 G652D OM3 OM5 MPO Fiber Patch Cord SM 10M
Connector:
LC UPC
Fiber Mode:
Simplex And Duplex, G652D
Length:
1m, 2m, 3m, 5m
Jacket:
PVC/LSZH
Cable OD:
3.0mm, 0.9mm, 2.0mm
Application:
FTTH FTTB FTTX Network,FTTA FTTH BBU RRU RRH LTE & Base Station,For ODF Internal Link,For Room Equipment Internal Link,FTTH/Test Equipments/TV/LAN/Telecommunication Equipments
Fan Out Length:
25",36" Or Customized
Fanout Protection:
Pulling Eye Kits
Product Name:
LC UPC Fan Out MM G657A2 G652D OM3 OM5 MPO Fiber Patch Cord SM 10M
Connector:
LC UPC
Fiber Mode:
Simplex And Duplex, G652D
Length:
1m, 2m, 3m, 5m
Jacket:
PVC/LSZH
Cable OD:
3.0mm, 0.9mm, 2.0mm
Application:
FTTH FTTB FTTX Network,FTTA FTTH BBU RRU RRH LTE & Base Station,For ODF Internal Link,For Room Equipment Internal Link,FTTH/Test Equipments/TV/LAN/Telecommunication Equipments
Fan Out Length:
25",36" Or Customized
Fanout Protection:
Pulling Eye Kits
LC UPC Fan Out MM Fiber Optic Patch Cord G657A2 G652D OM3 OM5 MPO SM 10M

LC UPC Fan Out MM G657A2 G652D OM3 OM5 MPO Fiber Patch Cord SM 10M



Description:

MPO connector is one type of the fiber connector,which usually used for high speed transmission standard.

Such as the IEEE 802.3bm standard for transmission of 40G/100G etc., can be used in the data center.



Applications:

  • FTTH FTTB FTTX Network,
  • FTTA FTTH BBU RRU RRH LTE &
  • Base station,
  • For ODF internal link,
  • For room equipment internal link,
  • FTTH/Test equipments/TV/LAN/Telecommunication equipments



Specification:

tems Single mode Multimode
PC UPC APC 62.5/125 50/125 50/125 10G
Insertion Loss <0.2dB <0.3dB
Return Loss ≥45dB ≥50dB ≥60dB ≥35dB
Durability <0.1dB typical change,
500 matings
Operating Temperature -40 to +75°C -40 to +75°C
Ferrule Hole Sizes 125.0+1/-0um, Conentricity:≤1um 125um,Conectricity:1≤3um
125.3+1/-0um, Conentricity:≤1um 127um,Conectricity:1≤3um
125.5+1/-0um, Conentricity:≤1um 128um,Conectricity:1≤3um
126.0+1/-0um, Conentricity:≤1um



Connector Type Performance Level
Standard Elite
Connector Mode Endface IL(dB) RL(dB) IL(dB) RL(dB)
LC/SC/FC/ST SM PC ≤0.2 ≥50 ≤0.15 ≥50
UPC ≤0.2 ≥55 ≤0.15 ≥55
APC ≤0.2 ≥60 ≤0.15 ≥60
MM PC ≤0.2 ≥35 ≤0.15 ≥35
MPO/MTP SM APC ≤0.7 ≥60 ≤0.35 ≥60
MM PC ≤0.5 ≥20 ≤0.35 ≥20
MTRJ SM PC ≤0.5 ≥50 / /
MM PC ≤0.5 ≥35 / /

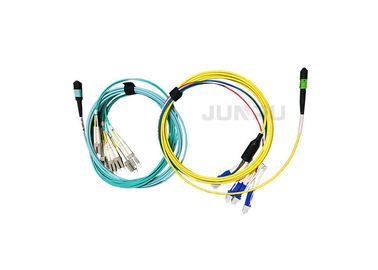

LC UPC Fan Out MM Fiber Optic Patch Cord G657A2 G652D OM3 OM5 MPO SM 10M 0

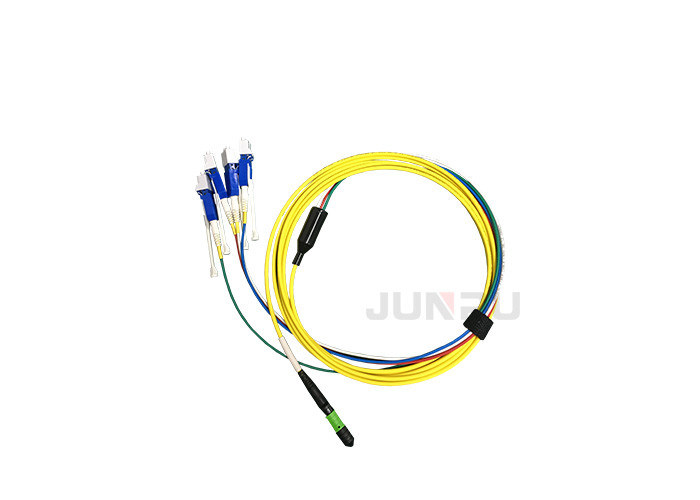

LC UPC Fan Out MM Fiber Optic Patch Cord G657A2 G652D OM3 OM5 MPO SM 10M 1
