Product Details
Place of Origin: China
Brand Name: JUNPU
Certification: ROHS CE CCC
Model Number: Fiber Optic Patch Cord
Payment & Shipping Terms
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Standard Strong Carton Box
Delivery Time: 1 ~ 10 Working days based on quantity
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Product Name: |
Fiber Optic Patch Cord |
Connector: |
SC, LC, FC |
Fiber Mode: |
Singlemode |
Length: |
Customized |
Product Name: |
Fiber Optic Patch Cord |
Connector: |
SC, LC, FC |
Fiber Mode: |
Singlemode |
Length: |
Customized |
Single Mode Fiber Optic Patch Cord SC UPC, Optic Fiber Patch Cord G65A2
Features:
Quick details:
Applications:
Specification:
| Pigtail Connector | PC (SM) | UPC (SM) | APC (SM) | MM |
| Return Loss (dB) | ≥45 | ≥50 | ≥60 | ≥35 |
| Insertion Loss (dB) | ≤0.2 (max≤0.3) | |||
| Repeatability (dB) | ≤0.1 | |||
| Durability(1/Matings) | ≥500 | |||
| Operation Temperature (°C) | -25~+70 | |||
| Tensile Strength (N) | ≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9 | |||
| Fiber | 9/125um, 50/125um,62.5/125um,ect | |||
| diameter | 0.9mm 2.0mm, 3.0mm etc | |||
| Cable material | PVC, LSZH | |||
| Cores | Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc | |||
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| (+20℃) | @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ||
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
|
Bandwidth (Class A) |
@850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelengthλcc | 1260nm | ≤1480nm | |||
Ordering Information
|
Boot (cable size) |
Boot Color | Fiber Type | Cable number | Ferrule | Length |
|
0.9mm 2.0mm 3.0mm |
Black Beige Blue Gray White Yellow |
9/125um SM 50/125um MM 62.5/125um MM OM3 OM4 |
Simplex Duplex Multi-fiber |
UPC APC |
Customized |

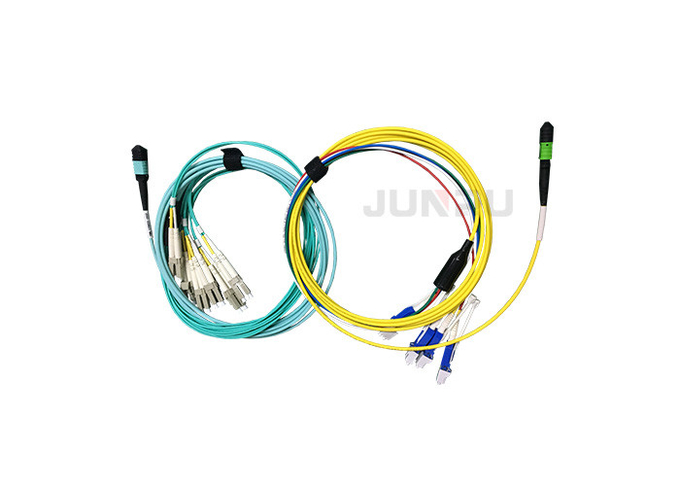

Other Patch Cord Series:
We sincerely invite you to send us inquiry for further details.
Junpu Cares About Every Single Details Of The Product For You !
