FC LC SC G652D G657A Single Mode Fiber Patch Cord OM3 MM 12 24 Core

Name: FC LC SC G652D G657A Single Mode Fiber Patch Cord OM3 MM 12 24 Core
Brand: JUNPU
SKU: SC mpo patch cord
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (110 reviews)

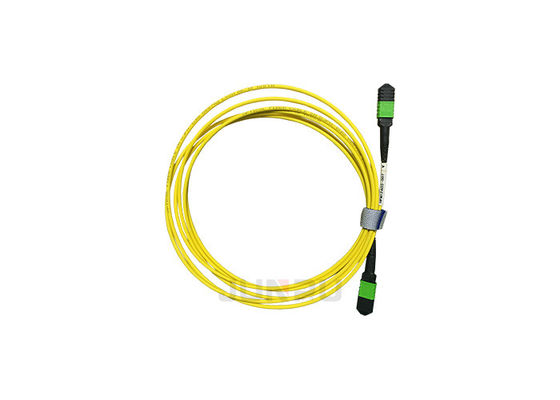

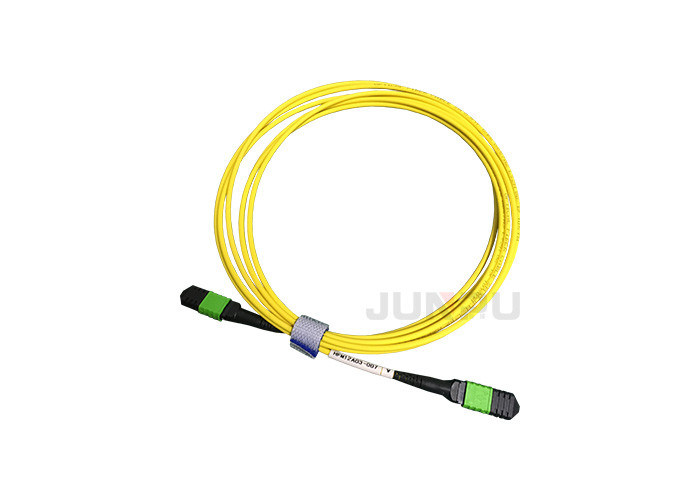

Large Image : FC LC SC G652D G657A Single Mode Fiber Patch Cord OM3 MM 12 24 Core

Product Details:

Place of Origin:	China
Brand Name:	JUNPU
Certification:	ROHS CE CCC
Model Number:	SC mpo patch cord

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	Negotiation
Packaging Details:	Standard Strong Carton Box
Delivery Time:	1 ~ 10 Working days based on quantity
Payment Terms:	T/T, Western Union, Credit Card Via Alibaba
Supply Ability:	1000 pieces per week

Contact Now

Detailed Product Description

Product Name:	FC LC SC G652D G657A OM3 MM 12, 24 Core Fiber Optic MPO Patchcord	Connector:	SC, LC,FC
Fiber Mode:	Simplex And Duplex, G652D, G655, Anything, SM Or MM	Length:	1m, 2m, 3m, 5m As Your Customeried
Jacket:	PVC/LSZH	Cable OD:	3.0mm, 0.9mm, 2.0mm
Connector Type:	PC/UPC/APC,SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO,ST SC LC FC,SC/Apc & SC/Upc,SC-SC LC-LC FC-FC ST-ST Or Hybrid
High Light:	fiber optic pigtail , fibre optic patch leads

FC LC SC G652D G657A OM3 MM 12, 24 Core Fiber Optic MPO Patchcord

Ordering Information:
FIBER TYPE	CONNECTOR 1	CONNECTOR 2	CABLE SIZE	CABLE TYPE	BOOT
1. 9/125	1. SM Simplex	1. SM Simplex	1. 0.9mm	1. Yellow PVC	1. Blue
2. OM3	2. MM Simplex	2. MM Simplex	2. 2.0mm	2. Orange PVC	2. Beige
3. 50/125	3. APC Simplex	3. APC Simplex	3. 3.0mm	3. White PVC	3. Green
4. 62.5/125	4. SM Duplex	4. SM Duplex		4. Yellow LSZH	4. Black
5. OM4	5. MM Duplex	5. MM Duplex		5. Orange LSZH	5. Blue
	6. APC Duplex	6. APC Duplex		6. White LSZH	6. White
				7. Grey LSZH	7. Red
				ETC	ETC

Application:

1. Premise installations

2. Asynchronous Transmission Mode(ATM)

3. Test Equipment

Features:

MTP/Mpo patch cord Description:
Optical fiber Patch cord
The MPO / MTP AOC assemblies are installed in active optical cable, such as QSFP / QDR / CXP. Utilizing MPO / MTP Ferrule and FA to assemble the mini high speed connect patchcord.
Optical Fiber Cable From 2core to 24core
Fiber: can choose SM 9/125 or MM: 62.5/125 ,50/125, OM1,OM2,OM3,OM4
Low loss patch cord
