Single Mode Multimode Patch Cord Outdoor Multicore MPO Sc Lc Fc Upc Apc

Name: Single Mode Multimode Patch Cord Outdoor Multicore MPO Sc Lc Fc Upc Apc
Brand: JUNPU
SKU: Fc mpo patch cord
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (144 reviews)

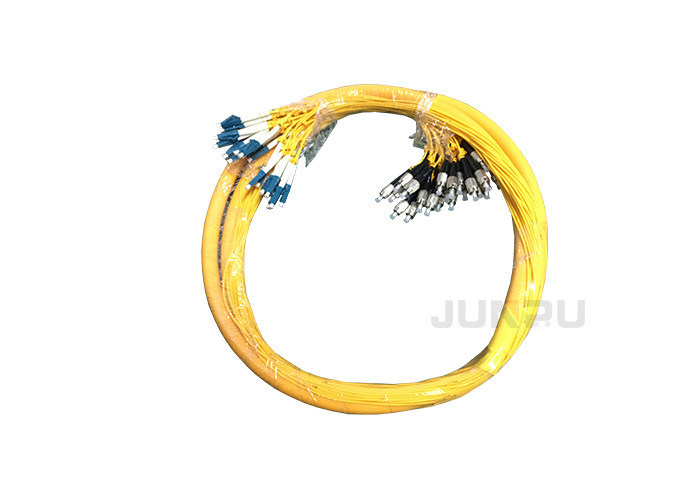

Large Image : Single Mode Multimode Patch Cord Outdoor Multicore MPO Sc Lc Fc Upc Apc

Product Details:

Place of Origin:	China
Brand Name:	JUNPU
Certification:	ROHS CE CCC
Model Number:	Fc mpo patch cord

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	Negotiation
Packaging Details:	Standard Strong Carton Box
Delivery Time:	1 ~ 10 Working days based on quantity
Payment Terms:	T/T, Western Union, Credit Card Via Alibaba
Supply Ability:	1000 pieces per week

Contact Now

Detailed Product Description

Product Name:	Multicore MPO Sc Lc Fc Upc Apc Single Mode Multimode Outdoor Fiber Patch Cord	Connector:	SC, LC,FC
Fiber Mode:	Simplex And Duplex, G652D, G655, Anything, SM Or MM	Length:	1m, 2m, 3m, 5m As Your Customeried
Jacket:	PVC/LSZH	Cable OD:	3.0mm, 0.9mm, 2.0mm
High Light:	fiber optic pigtail , fibre optic patch leads

JUNPU Multicore MPO sc lc fc upc apc single mode multimode outdoor fiber patch cord

Specification:
Fiber Type: OS1(9/125um) OM1(62.5/125um) OM2(50/125um) OM3(10GIG)
Connector Type: MTP
Fiber Cable Jacket material: PVC/LSZH
Standard color: Singlemode :Yellow color, Multimode :Orange/Aqua/Violet color or Customized
Cable strain relief (boot) O.D. : 0.9mm//2.0mm/3.0mm
Compliant with JIS C-5973, IEC RoHS
Q.C. : 100% function testing include Insertion loss, Return loss and Connector end face geometry.

Feature:

1. Polarity options are TIA style A, B, or C (Method B is standard)

2. For transition from trunk backbone assemblies to fiber rack system

3. Discrete connectors are heat-cured and use ceramic ferrules and sleeves

Specification:

tems	Single mode					Multimode
	PC	UPC		APC		62.5/125	50/125	50/125 10G
Insertion Loss	<0.2dB					<0.3dB
Return Loss	≥45dB		≥50dB		≥60dB	≥35dB
Durability	<0.1dB typical change, 500 matings
Operating Temperature	-40 to +75°C					-40 to +75°C
Ferrule Hole Sizes	125.0+1/-0um, Conentricity:≤1um					125um,Conectricity:1≤3um
	125.3+1/-0um, Conentricity:≤1um					127um,Conectricity:1≤3um
	125.5+1/-0um, Conentricity:≤1um					128um,Conectricity:1≤3um
	126.0+1/-0um, Conentricity:≤1um

Connector Type			Performance Level
Connector Type			Standard		Elite
Connector	Mode	Endface	IL(dB)	RL(dB)	IL(dB)	RL(dB)
LC/SC/FC/ST	SM	PC	≤0.2	≥50	≤0.15	≥50
		UPC	≤0.2	≥55	≤0.15	≥55
		APC	≤0.2	≥60	≤0.15	≥60
	MM	PC	≤0.2	≥35	≤0.15	≥35
MPO/MTP	SM	APC	≤0.7	≥60	≤0.35	≥60
MPO/MTP	MM	PC	≤0.5	≥20	≤0.35	≥20
MTRJ	SM	PC	≤0.5	≥50	/	/
MTRJ	MM	PC	≤0.5	≥35	/	/
